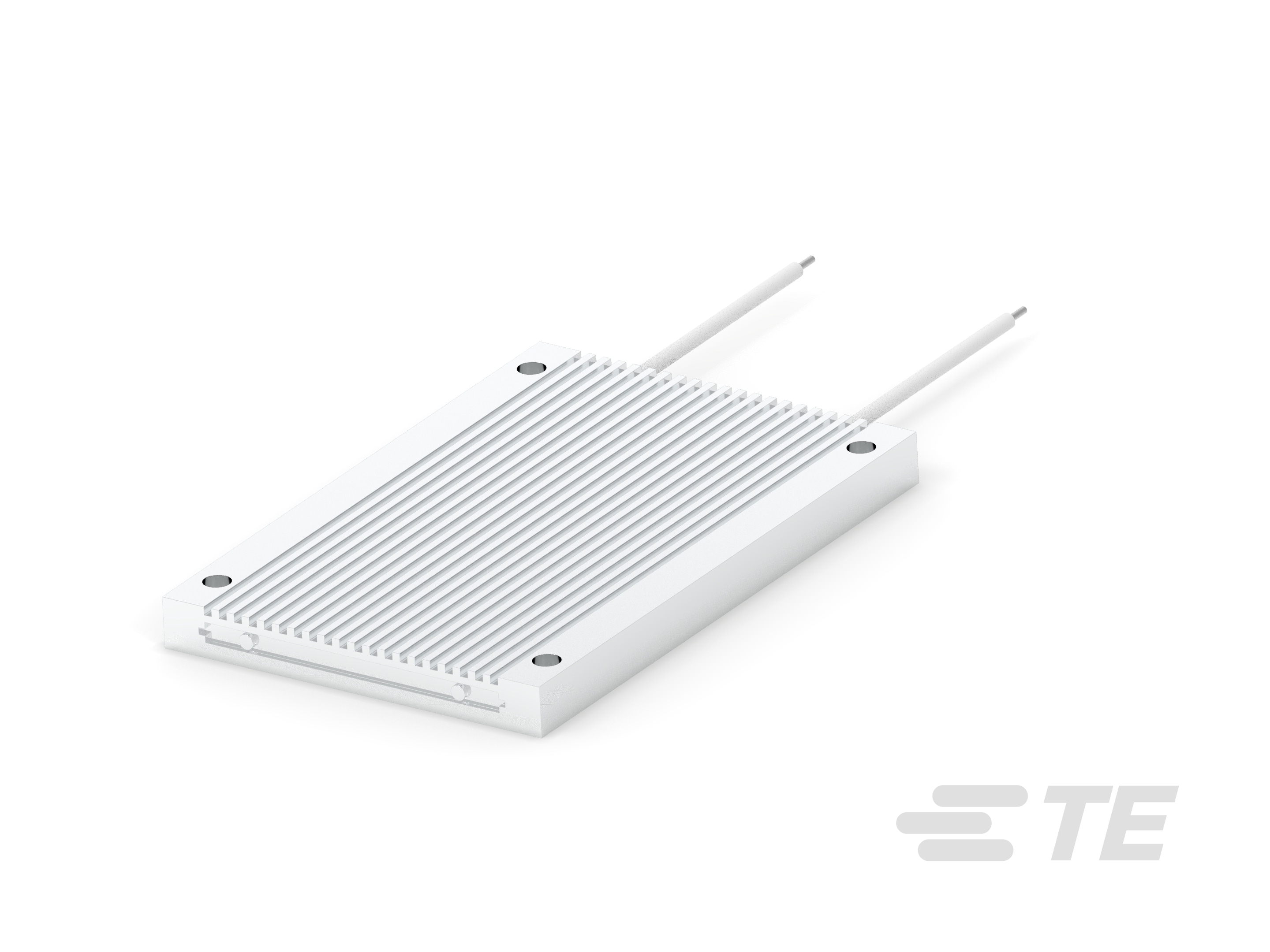

CGS TJT Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RESISTOR, 150 OHM, TJT SERIES, 300 W, ± 5%, WIRE LEADED

Part	Coating, Housing Type	Power (Watts)	Temperature Coefficient	Mounting Feature	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Tolerance	Package / Case	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Lead Style	Size / Dimension [y]	Size / Dimension [x]
TE Connectivity AMP Connectors TJT300150RJ	Aluminum	300 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	150 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	3.15 in 80 mm	8.278 " 210 mm	Wire Leads
TE Connectivity AMP Connectors TJT25033RJ	Aluminum	250 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	33 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	80 mm	180 mm	Wire Leads	3.15 in	7.087 in
TE Connectivity AMP Connectors TJT30047RJ	Aluminum	300 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	47 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	3.15 in 80 mm	8.278 " 210 mm	Wire Leads
TE Connectivity AMP Connectors TJT500680RJ	Aluminum	500 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	680 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	80 mm	330 mm	Wire Leads	3.15 in	12.99 in
TE Connectivity AMP Connectors TJT1501K0J	Aluminum	150 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	1000 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	80 mm	120 mm	Wire Leads	3.15 in	4.724 in
TE Connectivity AMP Connectors TJT300470RJ	Aluminum	300 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	470 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	3.15 in 80 mm	8.278 " 210 mm	Wire Leads
TE Connectivity AMP Connectors TJT50033RJ	Aluminum	500 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	33 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	80 mm	330 mm	Wire Leads	3.15 in	12.99 in
TE Connectivity AMP Connectors TJT1502R2J	Aluminum	150 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	2.2 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	80 mm	120 mm	Wire Leads	3.15 in	4.724 in
TE Connectivity AMP Connectors TJT1503R3J	Aluminum	150 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	3.3 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	80 mm	120 mm	Wire Leads	3.15 in	4.724 in
TE Connectivity AMP Connectors TJT2501K0J	Aluminum	250 W	260 ppm/°C	Screw Holes	10 mm	0.394 in	1000 Ohms	5 %	Rectangular Case	Wirewound	250 °C	-25 °C	80 mm	180 mm	Wire Leads	3.15 in	7.087 in
