15DYS818 Series

Catalog

ADAPTER, AC-DC, 1 O/P, 15V, 1.2A ROHS COMPLIANT: YES

Part	Voltage - Output	Standard Number	Approval Agency	Input Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Input Connector	Power (Watts)	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Operating Temperature [Max]	Form	Applications	Current - Output (Max) [Max]

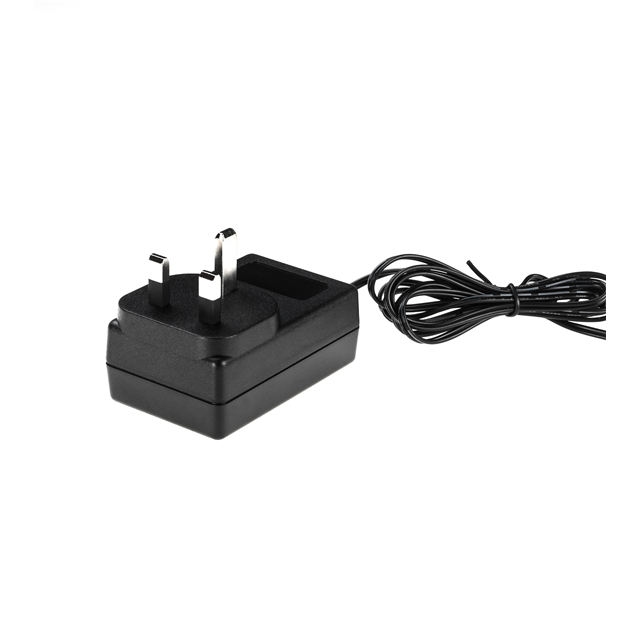

Ideal Power Ltd. 15DYS818-150120W-3	15 V	62368-1	CE	Fixed Blade	66 mm	1.37 in	34.8 mm	1.94 "	2.6 in	49.3 mm	Level VI	BS 1363	18 W	United Kingdom	264 VAC	90 VAC	2.1 mm	5.5 mm	Barrel Plug	12 mm	45 °C	Wall Mount (Class I)	ITE (Commercial)	1.2 A

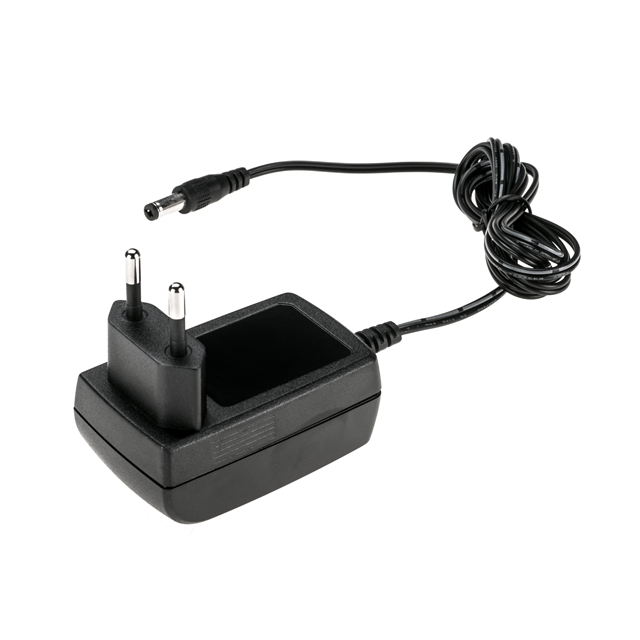

Ideal Power Ltd. 15DYS818-150120W-2	15 V	62368-1	CE TUV	Fixed Blade	67.5 mm	1.1 in	28 mm	1.79 in	2.66 in	45.5 mm	Level VI	CEE 7/16	18 W	Europe	264 VAC	90 VAC	2.1 mm	5.5 mm	Barrel Plug	12 mm	45 °C	Wall Mount	ITE (Commercial)	1.2 A

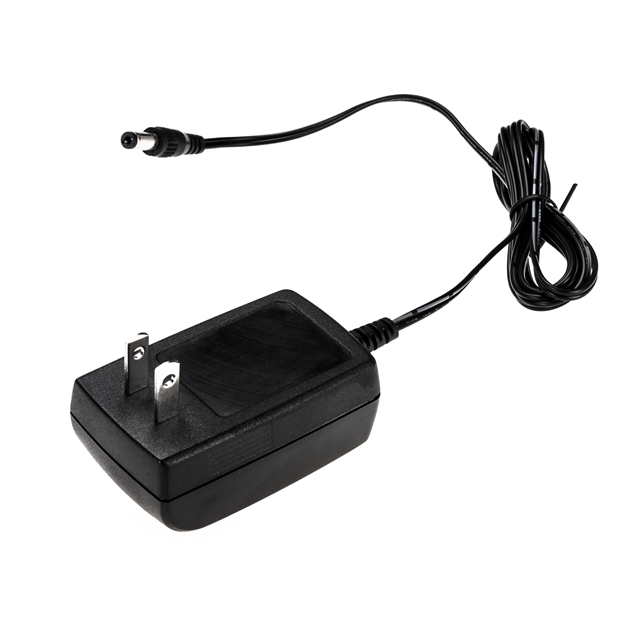

Ideal Power Ltd. 15DYS818-090200W-1	9 V	62368-1	cULus	Fixed Blade	67.5 mm	1.1 in	28 mm	1.79 in	2.66 in	45.5 mm	Level VI	NEMA 1-15P	18 W	North America	264 VAC	90 VAC	2.1 mm	5.5 mm	Barrel Plug	12 mm	45 °C	Wall Mount	ITE (Commercial)	2 A
Ideal Power Ltd. 15DYS818-090200W-3	9 V	62368-1	CE	Fixed Blade	66 mm	1.37 in	34.8 mm	1.94 "	2.6 in	49.3 mm	Level VI	BS 1363	18 W	United Kingdom	264 VAC	90 VAC	2.1 mm	5.5 mm	Barrel Plug	12 mm	45 °C	Wall Mount (Class I)	ITE (Commercial)	2 A
