BDHL Series

Catalog

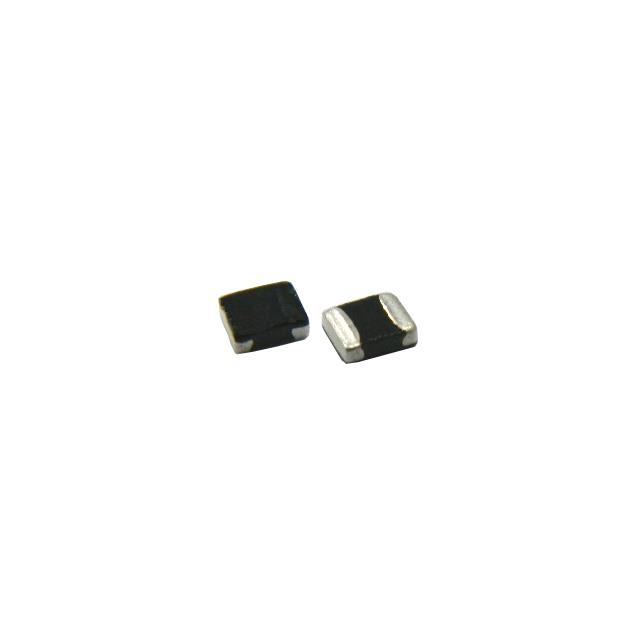

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPEMOLDING PROCESSING & FOR ULTRA HIGH CURRENT

Part	Current - Saturation (Isat)	Supplier Device Package	Tolerance	Type	Current Rating (Amps)	Mounting Type	Shielding	Inductance	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Pulse Electronics BDHL00252012R33MQ1	8.5 A	1008	20 %	Molded	5.8 A	Surface Mount	Unshielded	330 nH	18 mOhm	1.2 mm	0.047 "	2520 Metric	1008	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	2 MHz
Pulse Electronics BDHL002520102R2MQ1	2.5 A	1008	20 %	Molded	2.2 A	Surface Mount	Unshielded	2.2 µH	97 mOhm			2520 Metric	1008	125 °C	-40 C	2.5 mm	0.079 in	0.098 in	2 mm	2 MHz	0.039 in	1 mm
Pulse Electronics BDHL002016101R0MQ1	2.9 A	0806	20 %	Molded	2.5 A	Surface Mount	Unshielded	1 µH	65 mOhm				0806 (2016 Metric)	125 °C	-40 C	2 mm	0.063 "	0.079 in	1.6 mm	2 MHz	0.039 in	1 mm
