KISSLING Series G12 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LIMIT SWITSWITZERLAND G12-221-M-

Part	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mechanical Life	Circuit	Pretravel	Pretravel	Electrical Life	Differential Travel	Differential Travel	Operating Force	Mounting Type	Switch Function	Ingress Protection	Termination Style	Voltage Rating - DC
TE Connectivity AMP Connectors G12-221-M-08	Round (Pin Plunger)	-55 C	85 °C	7 A	100000 Cycles	DPDT	0.04 in	1 mm	100000 Cycles	0.025 in	0.6 mm	3059 gf	Panel Mount	On-On	IP67 - Dust Tight Waterproof	Cable Leads	28 V

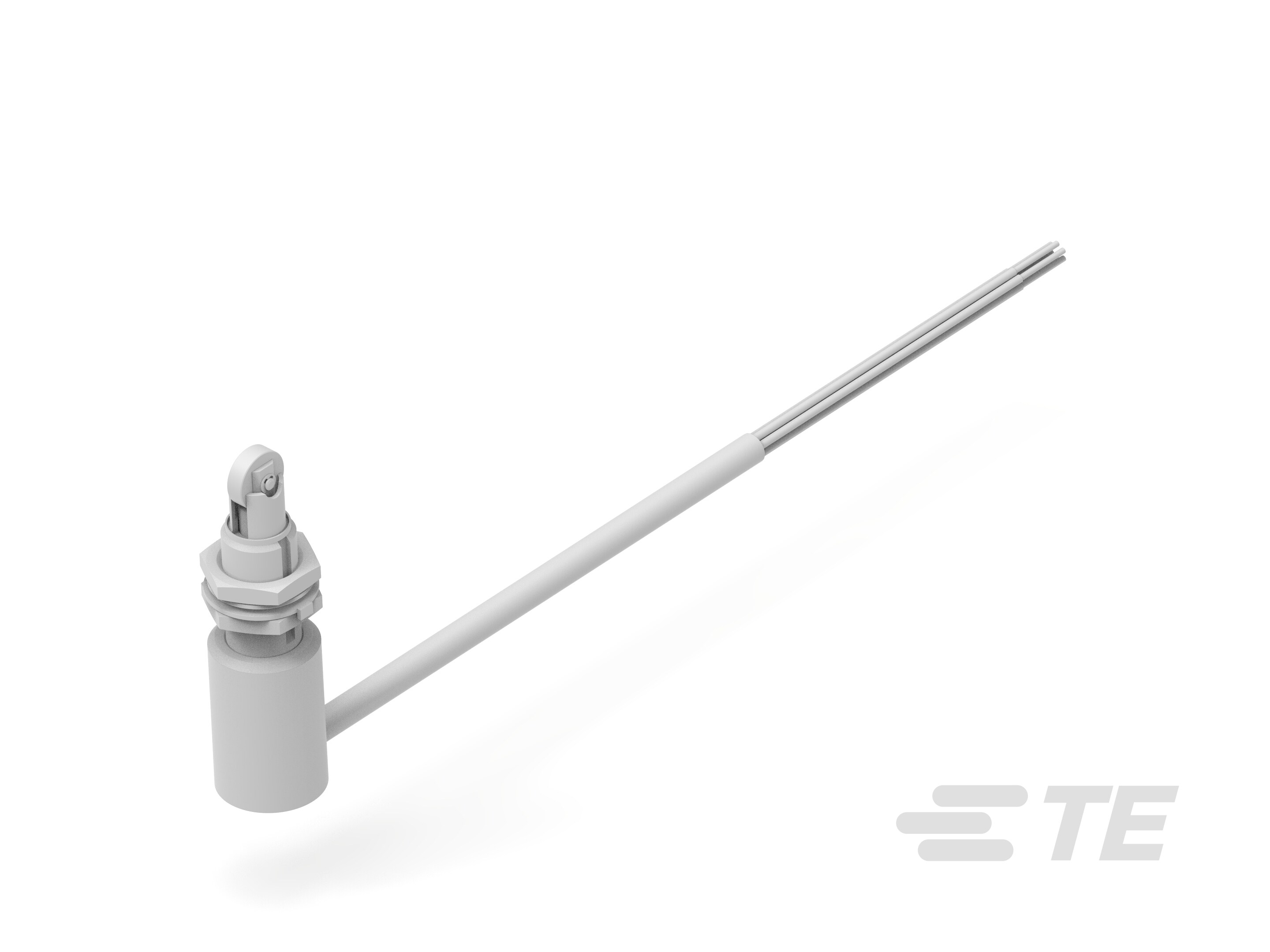

TE Connectivity AMP Connectors G12-211-S-15 907

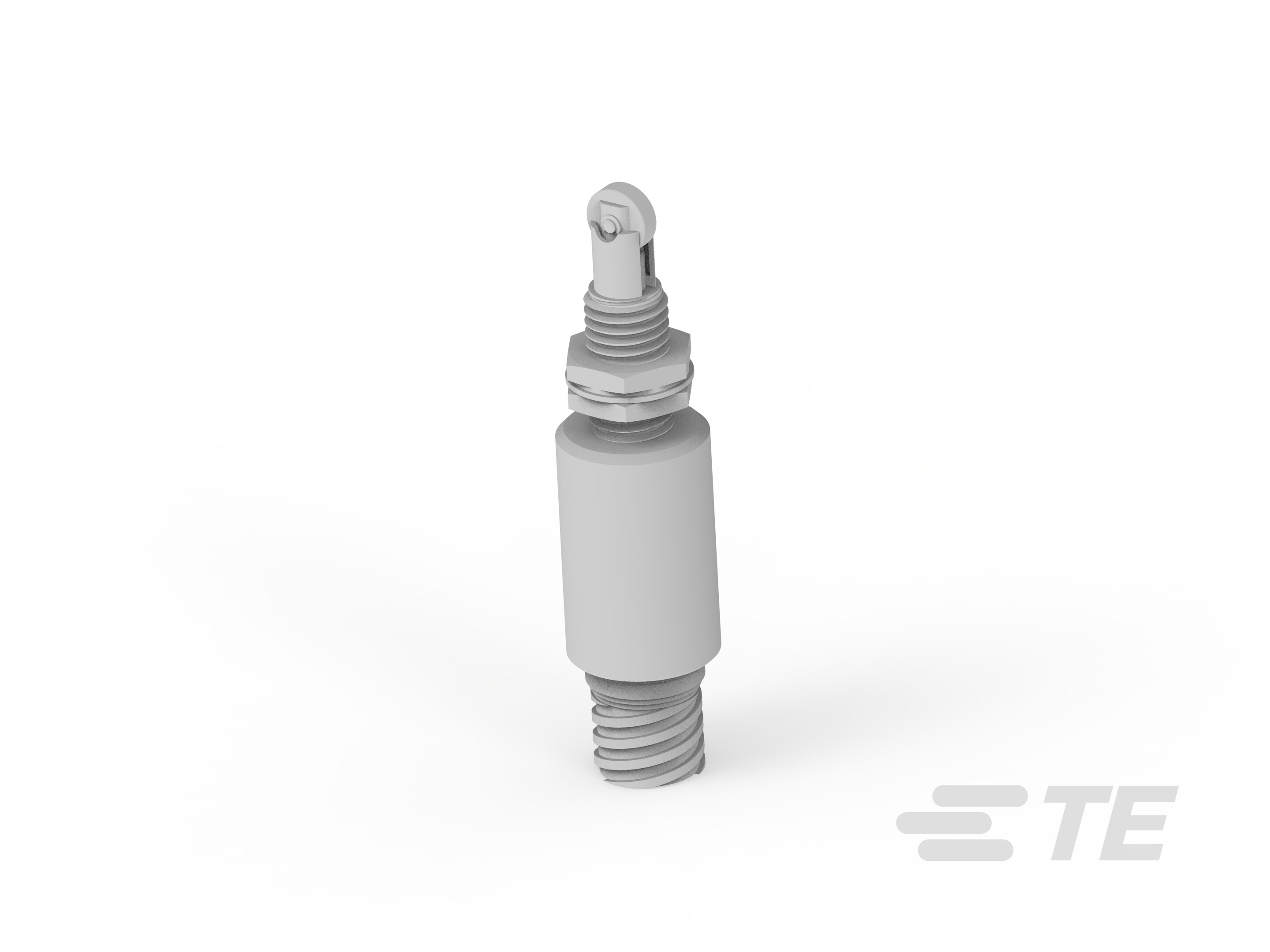

TE Connectivity AMP Connectors G12-212-D	Roller Plunger	-55 C	85 °C	7 A	100000 Cycles	DPDT	0.04 in	1 mm	100000 Cycles	0.025 in	0.6 mm	3059 gf	Panel Mount	On-On	IP67 - Dust Tight Waterproof	Connector	28 V

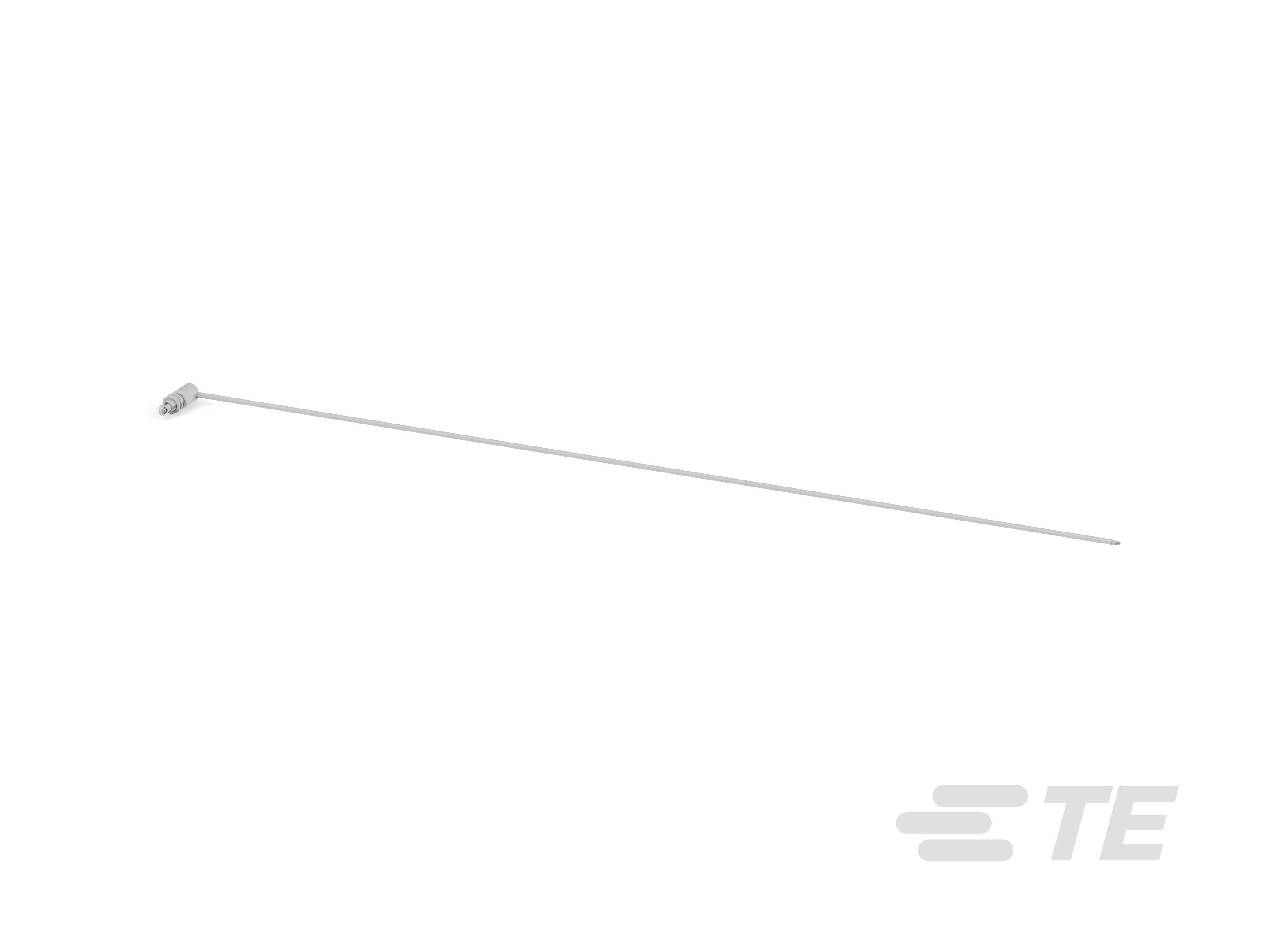

TE Connectivity AMP Connectors G12-111-M-015	Roller Plunger	-55 C	85 °C	7 A	100000 Cycles	SPDT	0.04 in	1 mm	100000 Cycles	0.025 in	0.6 mm	3059 gf	Panel Mount	On-On	IP67 - Dust Tight Waterproof	Cable Leads	28 V
TE Connectivity AMP Connectors G12-231-E-906
TE Connectivity AMP Connectors G12-421-M-18	Round (Pin Plunger)	-55 C	85 °C	7 A	100000 Cycles	4PDT	0.04 in	1 mm	100000 Cycles	0.025 in	0.6 mm	3059 gf	Panel Mount	On-On	IP67 - Dust Tight Waterproof	Cable Leads	28 V

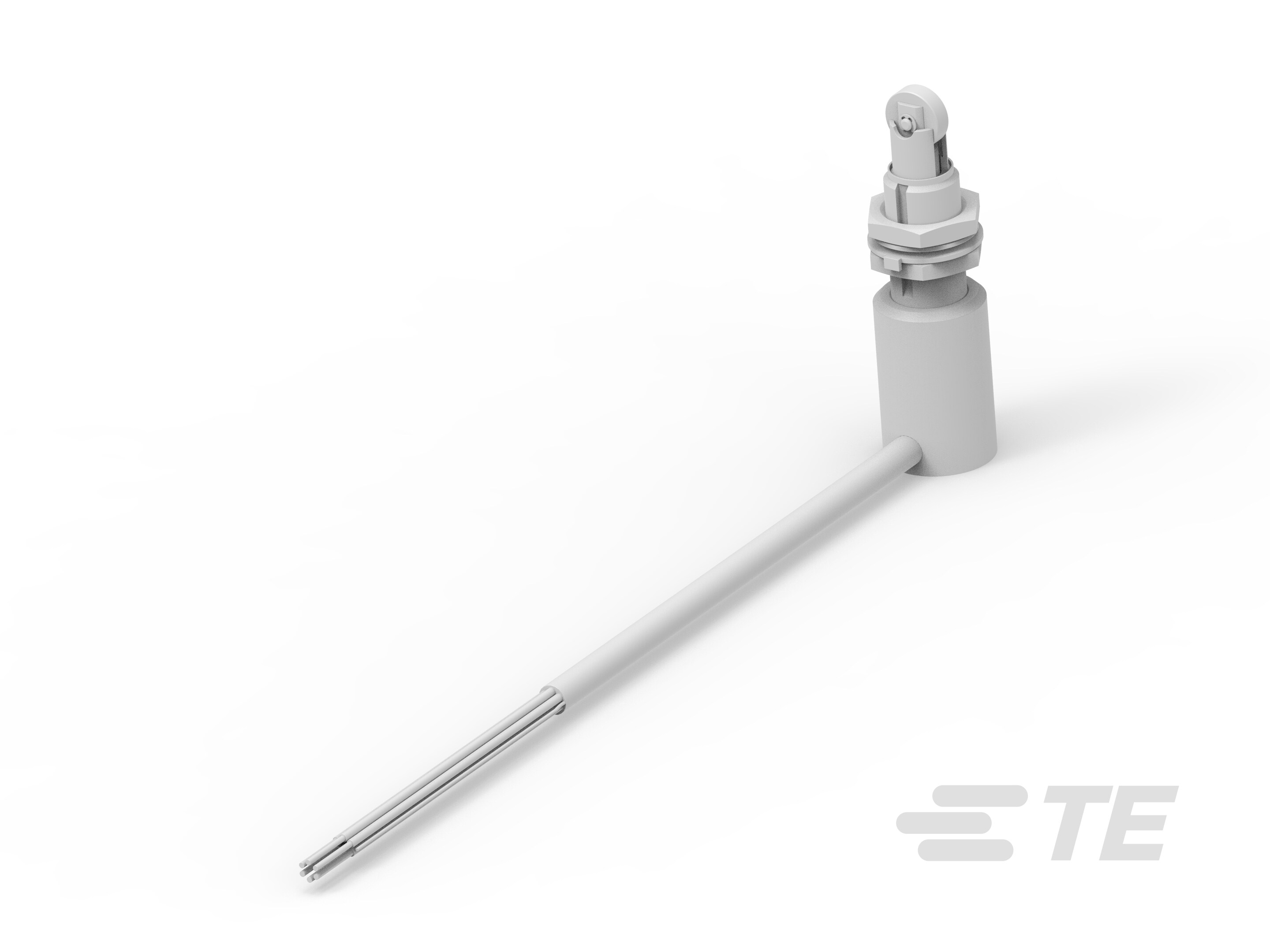

TE Connectivity AMP Connectors G12-211-S-30 932	Roller Plunger	-55 C	85 °C	7 A	100000 Cycles	DPDT	0.04 in	1 mm	100000 Cycles	0.025 in	0.6 mm	3059 gf	Panel Mount	On-On	IP67 - Dust Tight Waterproof	Cable Leads	28 V
TE Connectivity AMP Connectors G12-221-O-15 931	Round (Pin Plunger)	-55 C	85 °C	7 A	100000 Cycles	DPDT	0.04 in	1 mm	100000 Cycles	0.025 in	0.6 mm	3059 gf	Panel Mount	On-On	IP67 - Dust Tight Waterproof	Cable Leads	28 V
TE Connectivity AMP Connectors G12-111-M-05	Roller Plunger	-55 C	85 °C	7 A	100000 Cycles	SPDT	0.04 in	1 mm	100000 Cycles	0.025 in	0.6 mm	3059 gf	Panel Mount	On-On	IP67 - Dust Tight Waterproof	Cable Leads	28 V
