D25P33 Series

Catalog

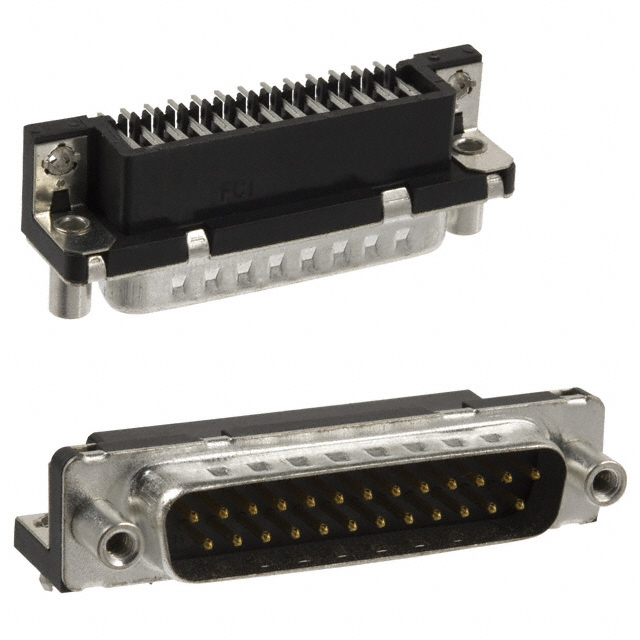

CONN D-SUB PLUG 25POS R/A SOLDER

Part	Dielectric Material	Contact Finish Thickness	Contact Type	Voltage Rating	Connector Type	Shell Material, Finish	Contact Finish	Backset Spacing	Backset Spacing	Features	Contact Material	Material Flammability Rating	Current Rating (Amps)	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Termination	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Flange Feature	Operating Temperature	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) D25P33E4GI00LF	Polybutylene Terephthalate (PBT)	Flash	Signal	300 VDC	Male Pins Plug	Steel Tin-Nickel Plated	Gold	8.08 mm	0.318 "	Board Lock Grounding Indents Mounting Brackets	Phosphor Bronze	UL94 V-0	5 A	Black	-55 °C	125 °C	2	Solder	Through Hole Right Angle	B DB	3	D-Sub	Female Screwlock (M3) Mating Side
Amphenol ICC (FCI) D25P33E6RV12LF	Glass Filled Nylon Polyamide (PA)		Signal	300 VDC	Male Pins Plug	Nickel Plated Steel	Gold	8.08 mm	0.318 "	Board Guide Grounding Indents Mounting Brackets	Brass	UL94 V-0	5 A	Black			2	Solder Paste	Through Hole Right Angle	B DB	3	D-Sub	Female Screwlock (4-40) Mating Side	-55 °C	0.76 Ám	30 Áin
Amphenol ICC (FCI) D25P33E6GX00LF	Polybutylene Terephthalate (PBT)		Signal	300 VDC	Male Pins Plug	Steel Tin-Nickel Plated	Gold	8.08 mm	0.318 "	Board Lock Grounding Indents Mounting Brackets	Brass	UL94 V-0	5 A	Black	-55 °C	125 °C	2	Solder	Through Hole Right Angle	B DB	3	D-Sub	Housing/Shell (4-40)		0.76 Ám	30 Áin
Amphenol ICC (FCI) D25P33E6RX12LF	Glass Filled Nylon Polyamide (PA)		Signal	300 VDC	Male Pins Plug	Nickel Plated Steel	Gold	8.08 mm	0.318 "	Board Guide Grounding Indents Mounting Brackets	Brass	UL94 V-0	5 A	Black			2	Solder Paste	Through Hole Right Angle	B DB	3	D-Sub	Housing/Shell (4-40)	-55 °C	0.76 Ám	30 Áin
Amphenol ICC (FCI) D25P33E4GV00	Polybutylene Terephthalate (PBT)	Flash	Signal	300 VDC	Male Pins Plug		Gold	8.08 mm	0.318 "	Board Lock Grounding Indents Mounting Brackets	Brass	UL94 V-0	5 A	Black	-55 °C	125 °C	2	Solder	Through Hole Right Angle	B DB	3	D-Sub	Female Screwlock (4-40) Mating Side
Amphenol ICC (FCI) D25P33E6PA12LF	Polybutylene Terephthalate (PBT)		Signal	300 VDC	Male Pins Plug		Gold	8.08 mm	0.318 "	Grounding Indents	Brass	UL94 V-0	5 A	Black	-55 °C	125 °C	2	Solder	Through Hole Right Angle	B DB	3	D-Sub	Housing/Shell (Unthreaded)		0.76 Ám	30 Áin
Amphenol ICC (FCI) D25P33E4GX00	Polybutylene Terephthalate (PBT)	Flash	Signal	300 VDC	Male Pins Plug		Gold	8.08 mm	0.318 "	Board Lock Grounding Indents Mounting Brackets	Brass	UL94 V-0	5 A	Black	-55 °C	125 °C	2	Solder	Through Hole Right Angle	B DB	3	D-Sub	Housing/Shell (4-40)
