093755 Series
Manufacturer: Molex
Beta
⌘K

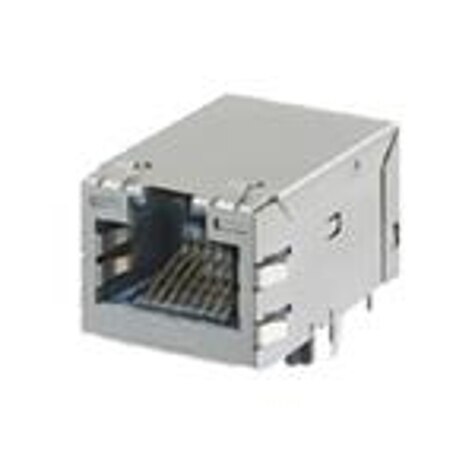

MODULAR CONNECTORS / ETHERNET CONNECTORS MX-MAG IND VERS 4 CORE FE 1 WITH LEDS
| Part | Housing Material | Shield Material | Termination | Height Above Board | Height Above Board | Connector Type | Number of Ports | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Tab Direction | Features | Shielding | Number of Rows | Orientation | Contact Material | LED Color | Applications | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Liquid Crystal Polymer (LCP) | Brass Nickel Coated | Solder | 0.555 " | 14.1 mm | RJ45 | 1 | Through Hole | 85 °C | -40 C | Up | Board Guide Solder Retention | EMI Finger Shielded | 1 | 90 ° | Phosphor Bronze | Green Yellow | 10/100 Base-T AutoMDIX | Gold |
