SU10VD Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 10000UH, THD

Part	Number of Lines	Filter Type	Mounting Type	Inductance @ Frequency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max] [z]	Height (Max)	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]

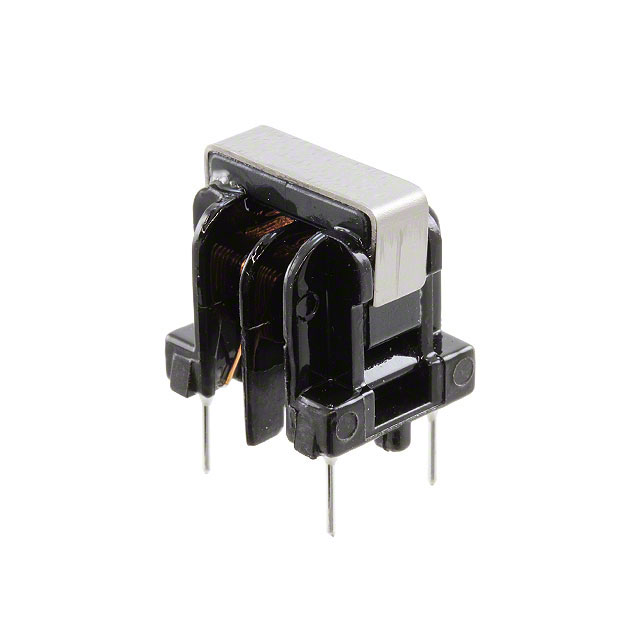

KEMET SU10VD-20010	2	Power Line	Through Hole	10 µH	Vertical 4 PC Pin	120 °C	-25 °C	0.787 in	20 mm	100 mOhm	2 A	250 V	0.709 in	16 mm	18 mm	0.63 "

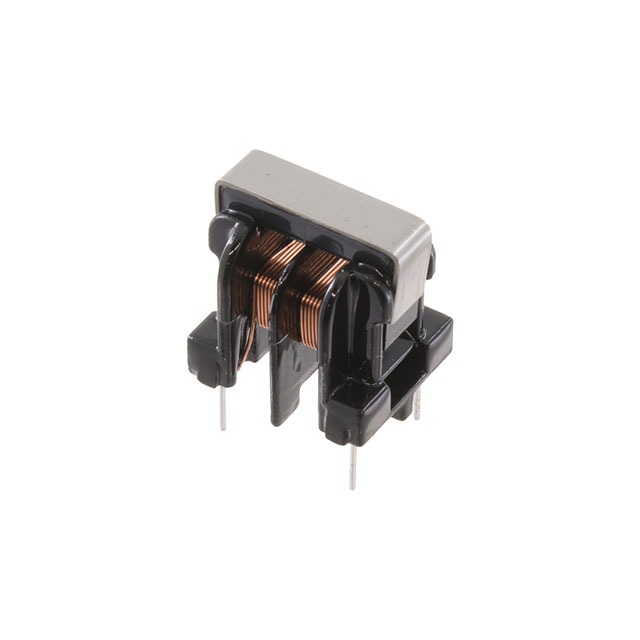

KEMET SU10VD-10020	2	Power Line	Through Hole	1 kHz 20 µH	Vertical 4 PC Pin	120 °C	-25 °C	0.787 in	20 mm	0.12 Ohm	1 A	250 V	0.709 in	16 mm	18 mm	0.63 "
