OAB18055 Series
Manufacturer: ORION FANS
Beta
⌘K

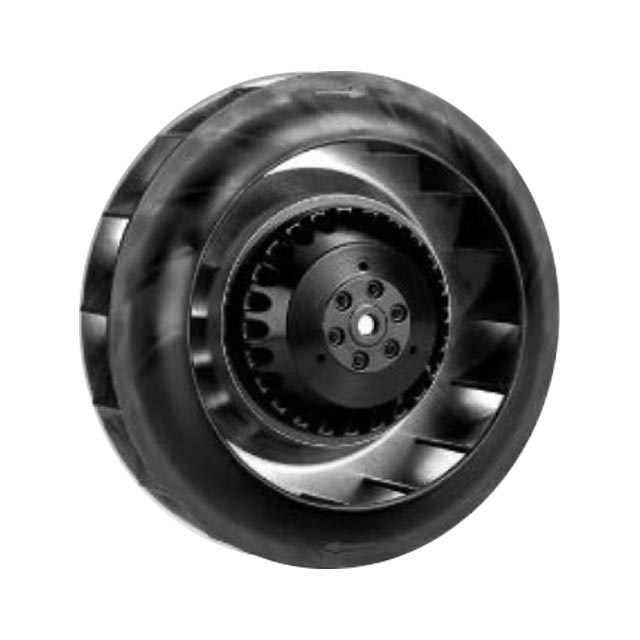

FAN BLOWER, MOTORIZED IMPELLER, 115 VAC, AC, 182 MM, 55 MM, 290 CFM
| Part | Lifetime @ Temp. | Material - Blade | Material - Frame | Current Rating (Amps) | Noise | Weight | Weight | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Width | Features | Fan Type | Ingress Protection | Bearing Type | Termination | Air Flow | Air Flow | Power (Watts) | Static Pressure | Static Pressure | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 40000 Hrs | Thermoplastic | Aluminum | 0.7 A | 67 dB | 2.7 lbs | 1.2 kg | 60 °C | -40 °C | 60 °C | -40 C | 2800 RPM | 55 mm | Capacitor | Motorized Impellers | IP55 - Dust Protected Water Resistant | Ball | 4 Wire Leads | 8.12 m³/min | 290 CFM | 78 W | 348.7 Pa | 1.4 in H2O | 115 VAC | 182 mm | Round |
 ORION FANS | 40000 Hrs | Thermoplastic | Aluminum | 0.34 A | 67 dB | 2.7 lbs | 1.2 kg | 60 °C | -40 °C | 60 °C | -40 C | 2800 RPM | 55 mm | Capacitor | Motorized Impellers | IP55 - Dust Protected Water Resistant | Ball | 4 Wire Leads | 8.12 m³/min | 290 CFM | 78 W | 348.7 Pa | 1.4 in H2O | 230 VAC | 182 mm | Round |
