LCXN Series

Catalog

POWER INDUCTORS - SMD 3.3UH 3030 20% AEC-Q200

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Inductance	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max)	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Ratings	Tolerance	Supplier Device Package	Current - Saturation (Isat)	Shielding	Current Rating (Amps)	Mounting Type	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Supplier Device Package	Height - Seated (Max) [Max]
Taiyo Yuden LCXND3030QKT3R3MNG	Wirewound	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	3.3 µH	100 kHz	0.059 "	1.5 mm	78 mOhm	125 °C	-40 C	49 MHz	AEC-Q200	20 %	1212	1.21 A	Unshielded	1.23 A	Surface Mount	Ferrite
Taiyo Yuden LCXNE2424MKT3R3MNG	Wirewound	2.4 mm	0.094 in	2.4 mm	0.094 "		Nonstandard	3.3 µH	100 kHz			225 mOhm	125 °C	-40 C	56 MHz	AEC-Q200	20 %		1.4 A	Unshielded	750 mA	Surface Mount	Ferrite	1.2 mm	0.047 "
Taiyo Yuden LCXNE2424KKT150MN	Wirewound	2.4 mm	0.094 in	2.4 mm	0.094 "		Nonstandard	15 µH	100 kHz	0.039 in		1.02 Ohm	125 °C	-40 C	27 MHz	AEC-Q200	20 %		470 mA	Unshielded	0.37 A	Surface Mount	Ferrite			1 mm
Taiyo Yuden LCXND6060KKT220MMG	Wirewound	6 mm	0.236 "	6 mm	0.236 in		2424 (6060 Metric)	22 µH	100 kHz	0.039 in		580 mOhm	125 °C	-40 C	12 MHz	AEC-Q200	20 %		0.65 A	Unshielded	700 mA	Surface Mount	Ferrite			1 mm	2424
Taiyo Yuden LCXND4040KKL1R0NDG	Wirewound	4 mm	0.157 "	4 mm	0.157 in		1616 (4040 Metric)	1 µH	100 kHz	0.039 in		56 mOhm	125 °C	-40 C	116 MHz	AEC-Q200	30 %	1616	2 A	Unshielded	1.9 A	Surface Mount	Ferrite			1 mm
Taiyo Yuden LCXND5050WKT101MMG	Wirewound	4.9 mm	0.193 in	4.9 mm	0.193 in		Nonstandard	100 µH	100 kHz			850 mOhm	125 °C	-40 C	7 MHz	AEC-Q200	20 %		420 mA	Semi-Shielded Unshielded	400 mA	Surface Mount	Ferrite			0.079 in		2 mm
Taiyo Yuden LCXND4040KKL3R3MDG	Wirewound	4 mm	0.157 "	4 mm	0.157 in		1616 (4040 Metric)	3.3 µH	100 kHz	0.039 in		100 mOhm	125 °C	-40 C	58 MHz	AEC-Q200	20 %	1616	1.1 A	Unshielded	1.4 A	Surface Mount	Ferrite			1 mm
Taiyo Yuden LCXND6060MKT100MMG	Wirewound	6 mm	0.236 "	6 mm	0.236 in		2424 (6060 Metric)	10 µH	100 kHz			200 mOhm	125 °C	-40 C	22 MHz	AEC-Q200	20 %		1 A	Unshielded	1.2 A	Surface Mount	Ferrite	1.2 mm	0.047 "		2424
Taiyo Yuden LCXND5050KKT1R0NMG	Wirewound	4.9 mm	0.193 in	4.9 mm	0.193 in		Nonstandard	1 µH	100 kHz	0.039 in		70 mOhm	125 °C	-40 C	95 MHz	AEC-Q200	30 %		2.35 A	Unshielded	1.75 A	Surface Mount	Ferrite			1 mm

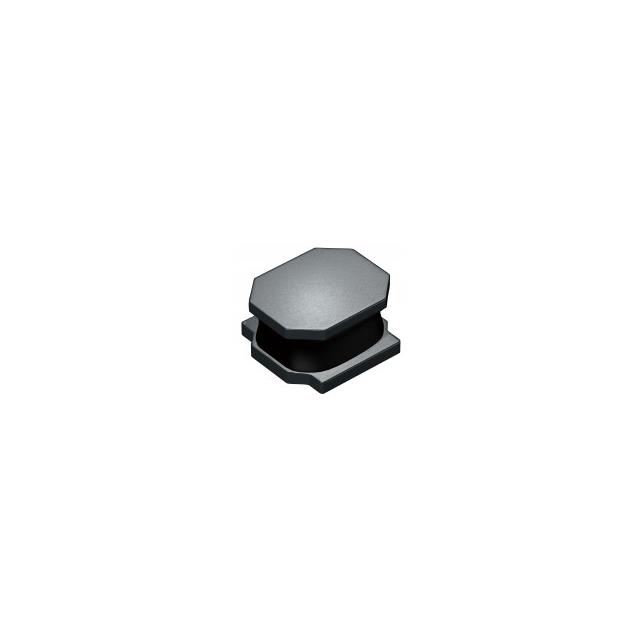

Taiyo Yuden LCXND4040TKL6R8MDG	Wirewound	4 mm	0.157 "	4 mm	0.157 in		1616 (4040 Metric)	6.8 µH	100 kHz	0.071 in		98 mOhm	125 °C	-40 C	30 MHz	AEC-Q200	20 %	1616	1.6 A	Unshielded	1.45 A	Surface Mount	Ferrite			1.8 mm
