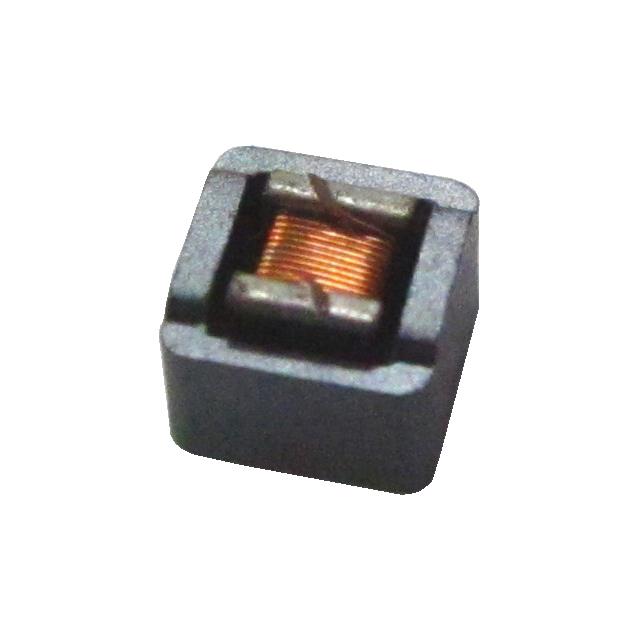

BWPS Series

Catalog

RF INDUCTORS - SMD CHILISIN RF INDUCTOR WIRE WOUND-HIGH CURRENT

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Q @ Freq	Current Rating (Amps)	DC Resistance (DCR) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Tolerance	Inductance Frequency - Test	Package / Case	Frequency - Self Resonant	Inductance	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Pulse Electronics BWPS00383829470M00	0.116 "	2.94 mm	33	430 mA	2.2 Ohm	0.15 "	3.81 mm	3.81 mm	0.15 "	Drum Core Wirewound	20 %	100 kHz	Nonstandard	15 MHz	47 µH	Ferrite	-40 C	105 ░C	Surface Mount	Shielded
Pulse Electronics BWPS00383829220K00	0.116 "	2.94 mm	33	650 mA	1.4 Ohm	0.15 "	3.81 mm	3.81 mm	0.15 "	Drum Core Wirewound	10 %	100 kHz	Nonstandard	30 MHz	22 µH	Ferrite	-40 C	105 ░C	Surface Mount	Shielded
Pulse Electronics BWPS00383829680M00	0.116 "	2.94 mm	33	0.33 A	3.8 Ohm	0.15 "	3.81 mm	3.81 mm	0.15 "	Drum Core Wirewound	20 %	100 kHz	Nonstandard	12 MHz	68 µH	Ferrite	-40 C	105 ░C	Surface Mount	Shielded
Pulse Electronics BWPS00383829150K00	0.116 "	2.94 mm		700 mA		0.15 "	3.81 mm	3.81 mm	0.15 "	Drum Core Wirewound	10 %	100 kHz	Nonstandard	75 MHz	15 µH	Ferrite	-40 C	105 ░C	Surface Mount	Shielded	30	1 MHz	1.15 Ohm
Pulse Electronics BWPS003838293R9M00	0.116 "	2.94 mm		1.2 A		0.15 "	3.81 mm	3.81 mm	0.15 "	Drum Core Wirewound	20 %	100 kHz	Nonstandard	172 MHz	3.9 µH	Ferrite	-40 C	105 ░C	Surface Mount	Shielded	30	1 MHz	290 mOhm
Pulse Electronics BWPS00383829151M00	0.116 "	2.94 mm	33	0.24 A		0.15 "	3.81 mm	3.81 mm	0.15 "	Drum Core Wirewound	20 %	100 kHz	Nonstandard	5.8 MHz	150 µH	Ferrite	-40 C	105 ░C	Surface Mount	Shielded			6.5 Ohm
Pulse Electronics BWPS003838291R0M00	0.116 "	2.94 mm	1 MHz 26	3 A	50 mOhm	0.15 "	3.81 mm	3.81 mm	0.15 "	Drum Core Wirewound	20 %	100 kHz	Nonstandard	344 MHz	1 µH	Ferrite	-40 C	105 ░C	Surface Mount	Shielded
