OSTHG05 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

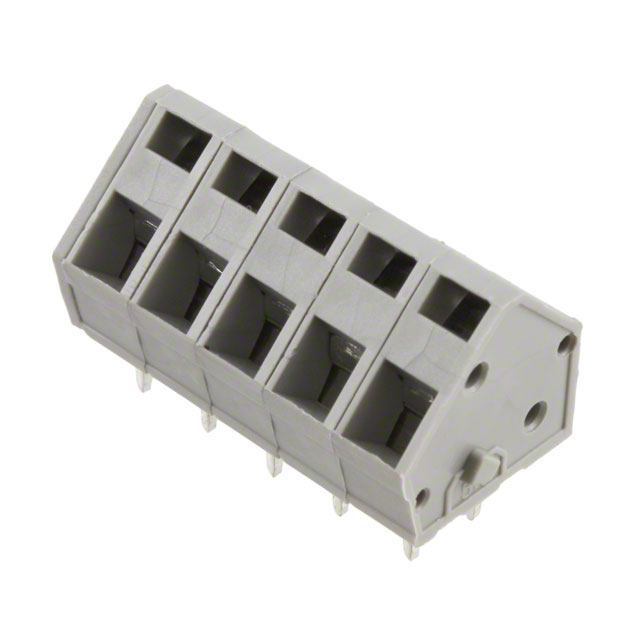

TERM BLOCK 5POS 5MM PCB
| Part | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Clamp Material - Plating [custom] | Positions Per Level | Color | Pitch | Pitch | Features | Wire Termination | Number of Levels | Mounting Type | Current | Voltage | Wire Gauge [Min] | Wire Gauge [Max] | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Thermoplastic | -30 ░C | 105 ░C | Brass | Stainless Steel | 5 | Gray | 0.197 in | 5 mm | Interlocking (Side) | Leg Spring Push-In Spring | 1 | Through Hole | 15 A | 300 VDC | 12 AWG | 28 AWG | Angled |
 On Shore Technology Inc. | Thermoplastic | -30 ░C | 105 ░C | Brass | Stainless Steel | 5 | Gray | 0.2 in | 5.08 mm | Interlocking (Side) | Leg Spring Push-In Spring | 1 | Through Hole | 15 A | 300 VDC | 12 AWG | 28 AWG | Angled |
