3110-16 Series
Manufacturer: CNC Tech
Beta
⌘K

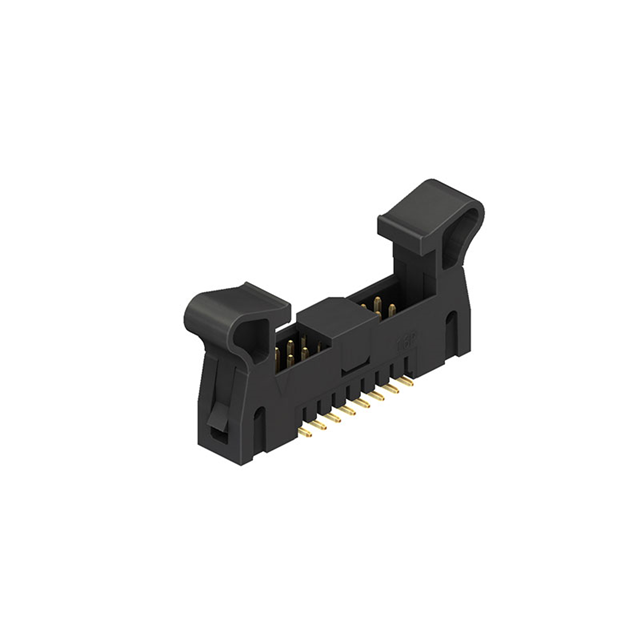

CONN HEADER VERT 16POS 2MM
| Part | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Connector Type | Contact Shape | Mounting Type | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Insulation Material | Contact Type | Number of Positions | Features | Material Flammability Rating | Contact Finish Thickness - Mating | Style | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Contact Material | Insulation Height [custom] | Insulation Height [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | 2 | 0.079 " | 2 mm | Header | Square | Through Hole | Gold | 0.122 in | 3.1 mm | Solder | Polybutylene Terephthalate (PBT) | Male Pin | 16 | Keying Slot | UL94 V-0 | Flash | Board to Cable/Wire | Latch Lock/Eject Hooks | -40 C | 105 ░C | Shrouded - 4 Wall | 2 mm | 0.079 in | All | Brass | ||
 CNC Tech | 2 | 0.079 " | 2 mm | Header | Square | Through Hole | Gold | 0.122 in | 3.1 mm | Solder | Polybutylene Terephthalate (PBT) | Male Pin | 16 | Keying Slot | UL94 V-0 | Flash | Board to Cable/Wire | Latch Lock/Eject Hooks Long | -40 C | 105 ░C | Shrouded - 4 Wall | 2 mm | 0.079 in | All | Brass | ||
 CNC Tech | 2 | 0.079 " | 2 mm | Header | Square | Through Hole | Gold | 0.122 in | 3.1 mm | Solder | Polybutylene Terephthalate (PBT) | Male Pin | 16 | Keying Slot | UL94 V-0 | Flash | Board to Cable/Wire | Push-Pull | -40 C | 105 ░C | Shrouded - 4 Wall | 2 mm | 0.079 in | All | Brass | ||
 CNC Tech | 2 | 0.079 " | 2 mm | Header | Square | Surface Mount | Gold | Solder | Polybutylene Terephthalate (PBT) | Male Pin | 16 | Keying Slot | UL94 V-0 | Flash | Board to Cable/Wire | Push-Pull | -40 C | 105 ░C | Shrouded - 4 Wall | 2 mm | 0.079 in | All | Brass | ||||
 CNC Tech | 2 | 0.079 " | 2 mm | Header | Square | Right Angle Through Hole | Gold | 0.122 in | 3.1 mm | Solder | Polybutylene Terephthalate (PBT) | Male Pin | 16 | UL94 V-0 | Flash | Board to Cable/Wire | Latch Lock/Eject Hooks Long | -40 C | 105 ░C | Shrouded - 4 Wall | 2 mm | 0.079 in | All | Brass | 0.236 " | 6 mm | |
 CNC Tech | 2 | 0.079 " | 2 mm | Header | Square | Surface Mount | Gold | Solder | Polybutylene Terephthalate (PBT) | Male Pin | 16 | Keying Slot | UL94 V-0 | Flash | Board to Cable/Wire | Latch Lock/Eject Hooks | -40 C | 105 ░C | Shrouded - 4 Wall | 2 mm | 0.079 in | All | Brass | ||||
 CNC Tech | 2 | 0.079 " | 2 mm | Header | Square | Surface Mount | Gold | Solder | Polybutylene Terephthalate (PBT) | Male Pin | 16 | Keying Slot | UL94 V-0 | Flash | Board to Cable/Wire | Latch Lock/Eject Hooks Long | -40 C | 105 ░C | Shrouded - 4 Wall | 2 mm | 0.079 in | All | Brass |
