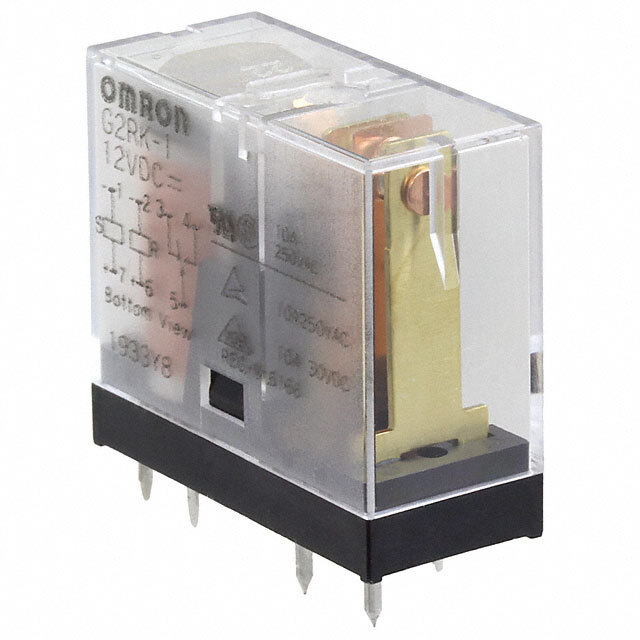

G2RK-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 5A 5V
| Part | Mounting Type | Coil Current | Seal Rating | Termination Style | Switching Voltage | Contact Form | Contact Rating (Current) | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Relay Type | Coil Voltage | Release Time | Contact Material | Must Operate Voltage | Operate Time | Approval Agency | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Through Hole | 167 mA | Sealed - Flux Protection | PC Pin | 125 VDC 380 VAC | SPST-NO (1 Form A) | 5 A | 30 Ohms | -40 °C | 70 °C | 625 W 1900 VA | General Purpose | 5 VDC | 20 ms | Silver Alloy | 3.5 VDC | 20 ms | CSA TUV UR VDE | Latching Dual Coil |
Omron Electronics Inc-EMC Div | Through Hole | 34.6 mA | Sealed - Flux Protection | PC Pin | 125 VDC 380 VAC | SPST-NO (1 Form A) | 5 A | 694 Ohms | -40 °C | 70 °C | 625 W 1900 VA | General Purpose | 24 VDC | 20 ms | Silver Alloy | 16.8 VDC | 20 ms | CSA TUV UR VDE | Latching Dual Coil |
