887-080 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 80POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Termination	Gender	Color	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Number of Positions	Number of Rows [custom]	Contact Material	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Mounting Type	Number of Positions/Bay/Row [custom]	Card Type
EDAC Inc. 887-080-540-803	Polyphenylene Sulfide (PPS)	2	Wire Wrap	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Dual	Through Hole	40	Non Specified - Dual Edge
EDAC Inc. 887-080-542-203	Polyphenylene Sulfide (PPS)	2	Wire Wrap	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Dual	Through Hole	40	Non Specified - Dual Edge

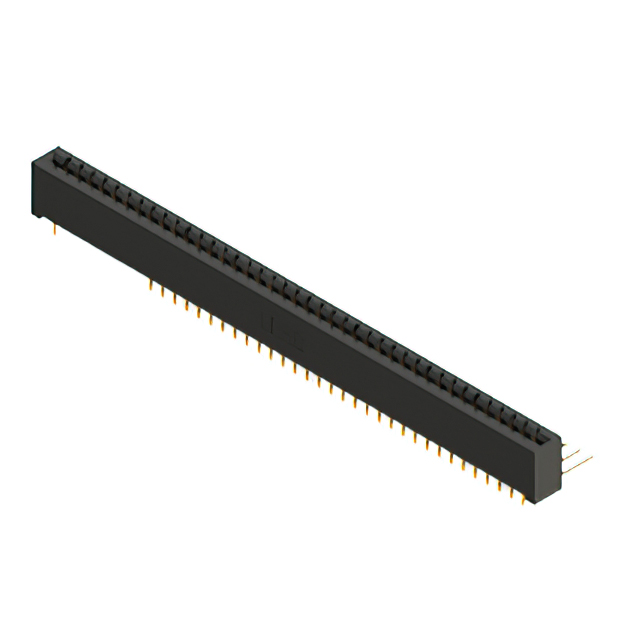

EDAC Inc. 887-080-559-201	Polyphenylene Sulfide (PPS)	2	Solder	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold				Dual	Right Angle Through Hole	40	Non Specified - Dual Edge
EDAC Inc. 887-080-541-207	Polyphenylene Sulfide (PPS)	2	Wire Wrap	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold	Flush Mount M3 Threaded Insert Top Opening			Dual	Through Hole	40	Non Specified - Dual Edge

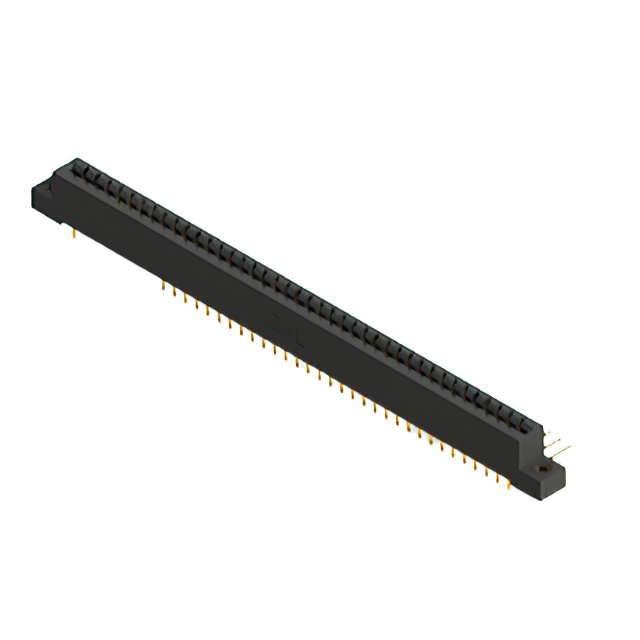

EDAC Inc. 887-080-558-207	Polyphenylene Sulfide (PPS)	2	Solder	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold	Flush Mount M3 Threaded Insert Top Opening			Dual	Right Angle Through Hole	40	Non Specified - Dual Edge
EDAC Inc. 887-080-521-803	Polyphenylene Sulfide (PPS)	2	Solder	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Dual	Through Hole	40	Non Specified - Dual Edge
EDAC Inc. 887-080-540-212	Polyphenylene Sulfide (PPS)	2	Wire Wrap	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Dual	Through Hole	40	Non Specified - Dual Edge
EDAC Inc. 887-080-524-804	Polyphenylene Sulfide (PPS)	2	Solder	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold		0.156 "	3.96 mm	Dual	Through Hole	40	Non Specified - Dual Edge
EDAC Inc. 887-080-544-812	Polyphenylene Sulfide (PPS)	2	Wire Wrap	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Dual	Through Hole	40	Non Specified - Dual Edge
EDAC Inc. 887-080-524-204	Polyphenylene Sulfide (PPS)	2	Solder	Female	Black	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	80	2	Copper Alloy	Gold	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Dual	Through Hole	40	Non Specified - Dual Edge
