1658015 Series

Catalog

MSB0.80PL11ASY160FL,-,10,-TY

Part	Mated Stacking Heights	Connector Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Height Above Board	Height Above Board	Contact Finish	Number of Rows

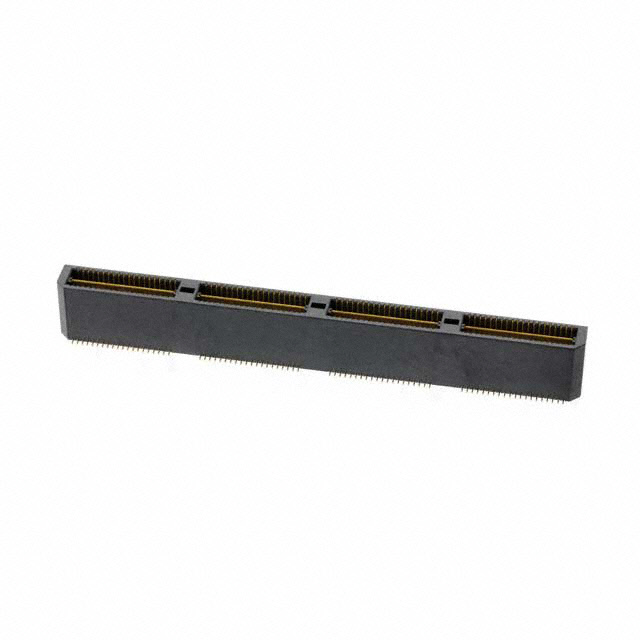

TE Connectivity Raychem Cable Protection 1658015-4	11 mm	Outer Shroud Contacts Plug	0.8 mm	0.031 in	10 Áin	0.25 Ám	Surface Mount	160	10.27 mm	0.404 in	Gold	2
TE Connectivity Raychem Cable Protection 6-1658015-1	11 mm	Outer Shroud Contacts Plug	0.8 mm	0.031 in	100 µin	2.54 µm	Surface Mount	40	10.27 mm	0.404 in	Gold	2
TE Connectivity Raychem Cable Protection 3-1658015-1	11 mm	Differential Pair Array Male	0.8 mm	0.031 in	10 Áin	0.25 Ám	Surface Mount	28	10.27 mm	0.404 in	Gold	2

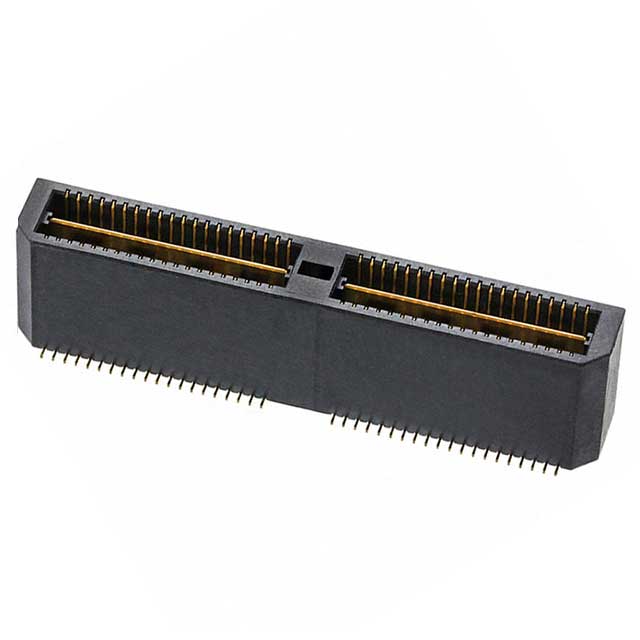

TE Connectivity Raychem Cable Protection 1658015-2	11 mm	Outer Shroud Contacts Plug	0.8 mm	0.031 in	10 Áin	0.25 Ám	Surface Mount	80	10.27 mm	0.404 in	Gold	2
TE Connectivity Raychem Cable Protection 1658015-3	11 mm	Outer Shroud Contacts Plug	0.8 mm	0.031 in	10 Áin	0.25 Ám	Surface Mount	120	10.27 mm	0.404 in	Gold	2
