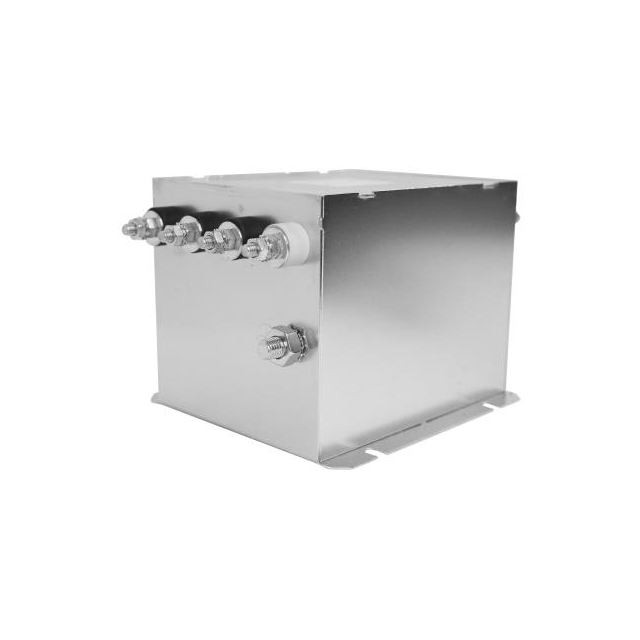

RP428 Series

Catalog

LINE FILTER 480VAC 80A CHASSIS

...

Part	Filter Type	Applications	Termination Style	Approval Agency	Mounting Type	Configuration	Current	Voltage - Rated AC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Frequency - Operating [Max]	Frequency - Operating [Min]
Astrodyne TDI RP428-80-10-W	Three Phase (Wye)	General Purpose	Wire Leads	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	80 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
Astrodyne TDI RP428-8-10-W	Three Phase (Wye)	General Purpose	Wire Leads	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	8 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
Astrodyne TDI RP428-25-0-S	Three Phase (Wye)	General Purpose	Threaded Post (M5)	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	25 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
Astrodyne TDI RP428-400-100-B	Three Phase (Wye)	General Purpose	Terminal Post	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	400 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
Astrodyne TDI RP428-200-100-C	Three Phase (Wye)	General Purpose	Terminal Block	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	200 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
Astrodyne TDI RP428-25-1000-S	Three Phase (Wye)	General Purpose	Threaded Post (M5)	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	25 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
Astrodyne TDI RP428-8-2000-W	Three Phase (Wye)	General Purpose	Wire Leads	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	8 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
Astrodyne TDI RP428-25-1000-C	Three Phase (Wye)	General Purpose	Terminal Block	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	25 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
Astrodyne TDI RP428-600-10-B	Three Phase (Wye)	General Purpose	Terminal Post	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	600 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
Astrodyne TDI RP428-300-100-B	Three Phase (Wye)	General Purpose	Terminal Post	CE CSA cURus ENEC SEMKO	Chassis Mount	Two Stage	300 A	480 V	100 °C	-25 °C	3.5 kV	60 Hz	50 Hz
