9GAX0412 Series

Catalog

FAN AXL 40X28MM 12VDC RECT CONN

Part	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	Bearing Type	Noise	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Size / Dimension [x]	Size / Dimension [z]	Width [x]	Voltage - Rated	Features	Fan Type	Termination	Air Flow	Air Flow	Approval Agency	Power (Watts)	Static Pressure	Static Pressure
Sanyo Denki America Inc. 9GAX0412P3S025	1.3 A	10.8 VDC	12.6 VDC	Plastic	Plastic	Ball	64 dB(A)	25000 RPM	60 °C	60 °C	-4 °F	-20 ░C	0.117 lb	53.07 g	40 mm	40 mm	28 mm	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial	4 Position Rectangular Connector
Sanyo Denki America Inc. 9GAX0412P3K001	920 mA	10.8 VDC	13.2 VDC	Plastic	Plastic	Ball	61 dB(A)	22000 RPM	60 °C	60 °C	-4 °F	-20 ░C	0.117 lb	53.07 g	40 mm	40 mm	28 mm	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial	4 Wire Leads	0.801 m³/min	28.6 CFM	CSA TUV UL	11.04 W	3.21 in H2O	800 Pa
Sanyo Denki America Inc. 9GAX0412P3S001	1.3 A	10.8 VDC	12.6 VDC	Plastic	Plastic	Ball	64 dB(A)	25000 RPM	60 °C	60 °C	-4 °F	-20 ░C	0.117 lb	53.07 g	40 mm	40 mm	28 mm	12 VDC	PWM Control Speed Sensor (Tach)	Tubeaxial	4 Wire Leads	0.89 m³/min	31.8 CFM	CSA TUV UL	15.6 W	4.017 in H2O	1000.6 Pa
Sanyo Denki America Inc. 9GAX0412P3K003	920 mA	10.8 VDC	13.2 VDC	Plastic	Plastic	Ball	61 dB(A)	22000 RPM	60 °C	60 °C	-4 °F	-20 ░C	0.117 lb	53.07 g	40 mm	40 mm	28 mm	12 VDC	PWM Control Speed Sensor (Tach)	Tubeaxial	4 Wire Leads	0.801 m³/min	28.6 CFM	CSA TUV UL	11.04 W	3.21 in H2O	800 Pa

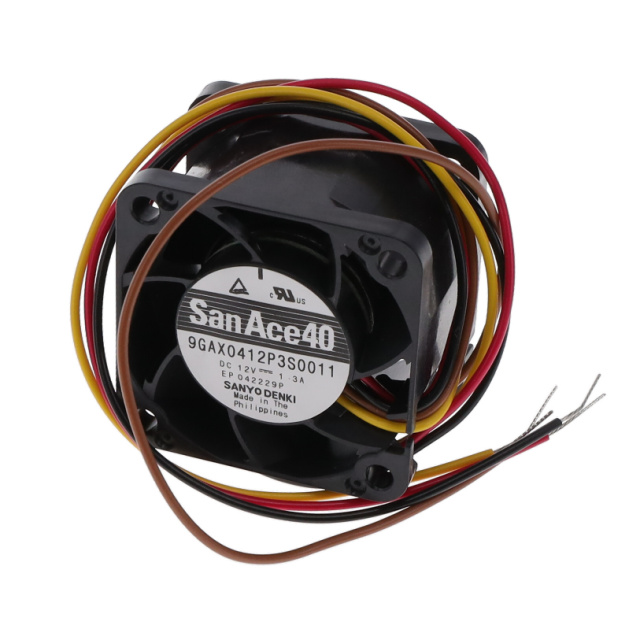

Sanyo Denki America Inc. 9GAX0412P3S0011	1.3 A	10.8 VDC	12.6 VDC	Plastic	Plastic	Ball	64 dB(A)	25000 RPM	60 °C	60 °C	-4 °F	-20 ░C	0.117 lb	53.07 g	40 mm	40 mm	28 mm	12 VDC	PWM Control Speed Sensor (Tach)	Tubeaxial	4 Wire Leads	0.89 m³/min	31.8 CFM	CSA TUV UL	15.6 W	4.02 in H2O	1001.3 Pa

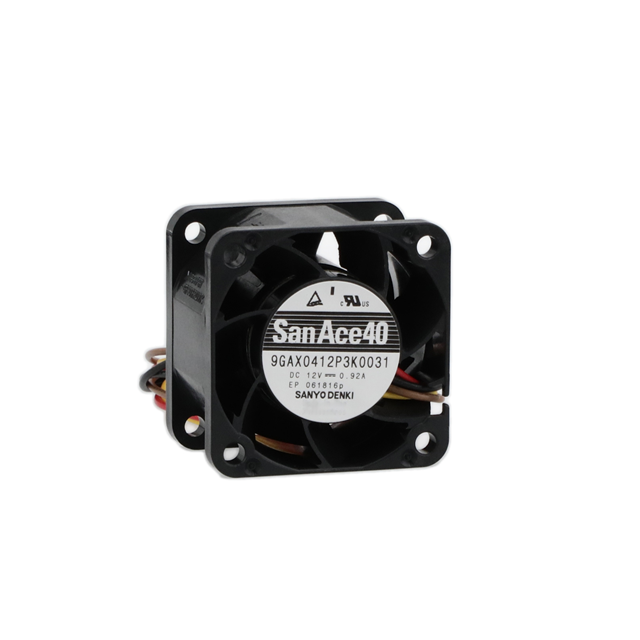

Sanyo Denki America Inc. 9GAX0412P3K0031	920 mA	10.8 VDC	13.2 VDC	Plastic	Plastic	Ball	61 dB(A)	22000 RPM	60 °C	60 °C	-4 °F	-20 ░C	0.117 lb	53.07 g	40 mm	40 mm	28 mm	12 VDC	PWM Control Speed Sensor (Tach)	Tubeaxial	4 Wire Leads	0.801 m³/min	28.6 CFM	CSA TUV UL	11.04 W	3.21 in H2O	800 Pa
