DA14580 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
IC RF TXRX+MCU BLE 40QFN
| Part | GPIO | Mounting Type | Current - Transmitting | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | RF Family/Standard | Memory Size | Supplier Device Package | Voltage - Supply | Type | Power - Output | Sensitivity | Protocol | Frequency | Current - Receiving | Serial Interfaces | Supplied Contents | For Use With/Related Products | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package [y] | Supplier Device Package [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 32 | Surface Mount | 3.4 mA | 40-VFQFN Exposed Pad | 85 °C | -40 °C | Bluetooth | 32 kB 50 kB 84 kB | 40-QFN (5x5) | 3.3 V | TxRx + MCU | 0 dBm | -93 dBm | Bluetooth v4.2 | 2.4 GHz | 3.7 mA | I2C SPI UART | ||||||

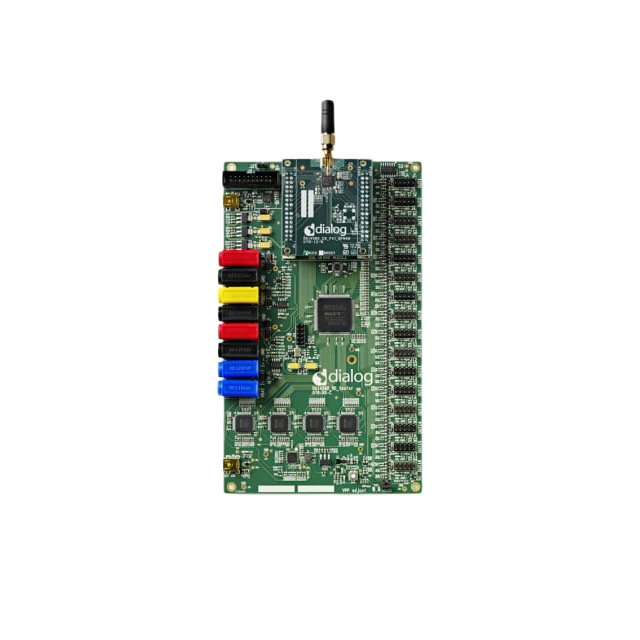

 Renesas Electronics Corporation | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | 2.4 GHz | Board(s) | DA14580 | |||||||||||||||||||
 Renesas Electronics Corporation | 24 | Surface Mount | 3.4 mA | 40-VFQFN Exposed Pad | 85 °C | -40 °C | Bluetooth | 32 kB 50 kB 84 kB | 40-QFN (5x5) | TxRx + MCU | -1 dBm | -93 dBm | Bluetooth v4.1 | 2.4 GHz | 3.7 mA | I2C SPI UART | 3.3 V | 2.35 V | |||||
Renesas Electronics Corporation | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | 2.4 GHz | Board(s) | DA14580 | |||||||||||||||||||

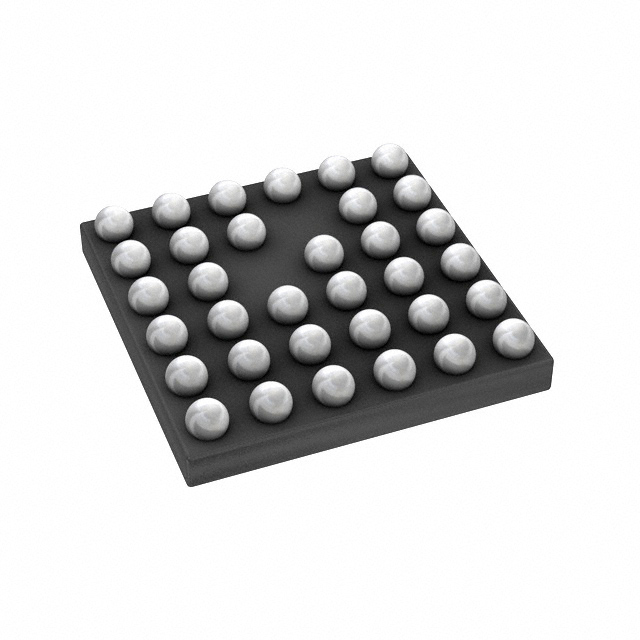

 Renesas Electronics Corporation | 14 | Surface Mount | 3.4 mA | 34-UFBGA WLCSP | 85 °C | -40 °C | Bluetooth | 32 kB 50 kB 84 kB | 34-WLCSP | TxRx + MCU | -1 dBm | -93 dBm | Bluetooth v4.1 | 2.4 GHz | 3.7 mA | I2C SPI UART | 3.3 V | 2.35 V | 2.44 | 2.44 | |||
 Renesas Electronics Corporation | 32 | Surface Mount | 3.4 mA | 48-VFQFN Exposed Pad | 85 °C | -40 °C | Bluetooth | 32 kB 50 kB 84 kB | 48-QFN (6x6) | TxRx + MCU | -1 dBm | -93 dBm | Bluetooth v4.1 | 2.4 GHz | 3.7 mA | I2C SPI UART | 3.3 V | 2.35 V |
