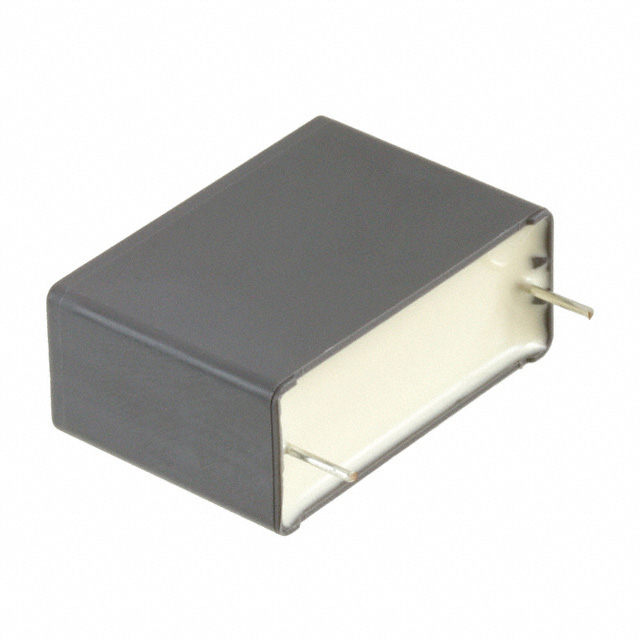

R73UR Series
Manufacturer: KEMET
Beta
⌘K
CAP FILM 0.022UF 5% 2KVDC RADIAL
| Part | Capacitance | Termination | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Lead Spacing | Lead Spacing | Mounting Type | Voltage Rating - DC | Voltage Rating - DC | Tolerance | Voltage Rating - AC | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Applications | Package / Case | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.022 µF | PC Pins | 0.87 in | 22.1 mm | -55 C | 105 ░C | 27.5 mm | 1.083 in | Through Hole | 2 kV | 2 kVDC | 5 % | 500 V | 32 mm | 1.26 in | 0.512 " | 13 mm | DC Filtering DC Link DV/DT High Frequency High Pulse Switching | Radial | Polypropylene (PP) Metallized |
