MV18 Series

Catalog

TERMINALS B-06-401K 31-6-WP 94598

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination [x]	Length - Termination [x]	Material - Insulation	Insulation Diameter	Insulation Diameter	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Color	Contact Material	Features	Termination	Insulation	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Terminal Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges	Width - Outer Edges	Thickness	Thickness	Length - Overall	Length - Overall	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Width - Outer Edges [x]	Width - Outer Edges [x]

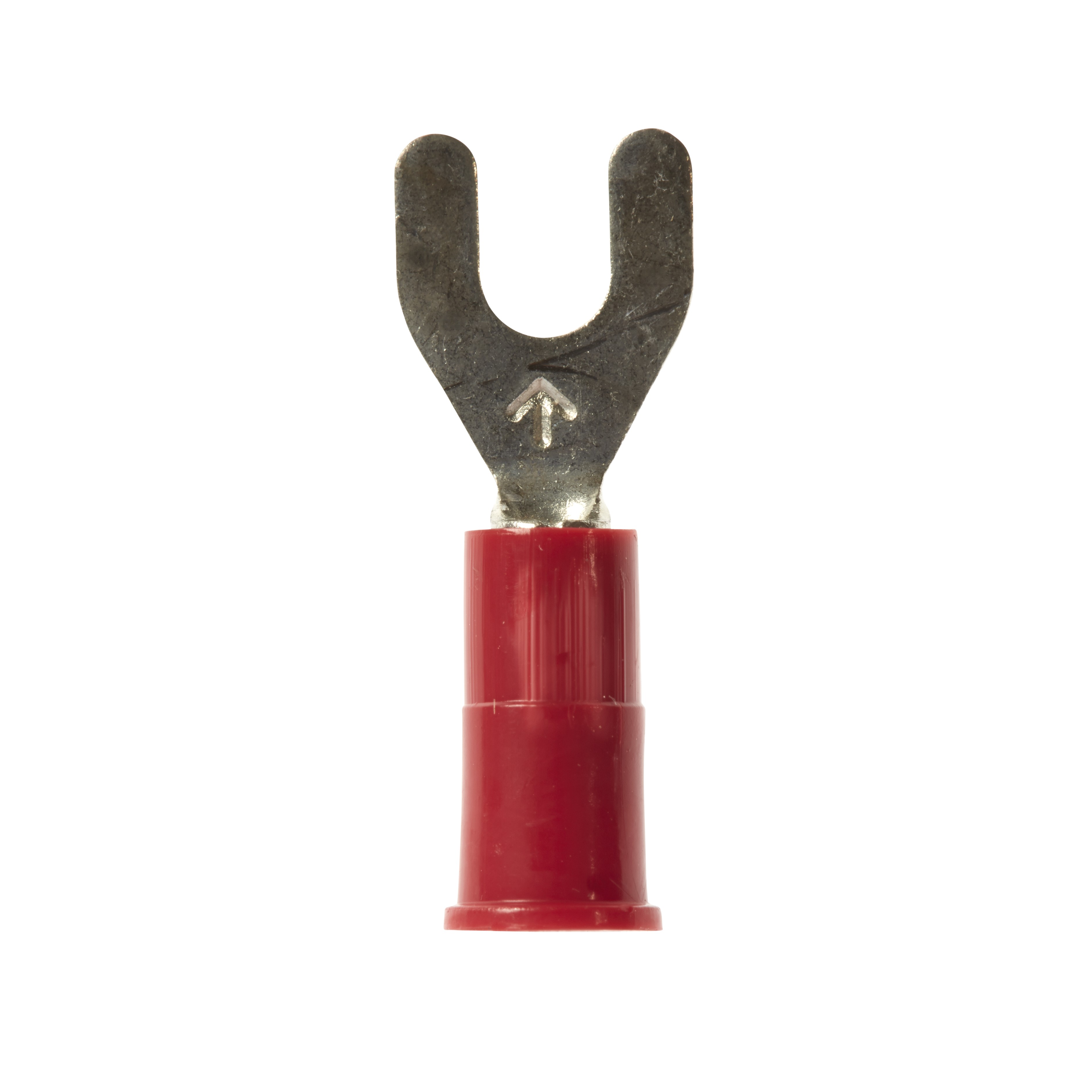

3M Electronic Specialty MV18-6FK	7.37 mm	0.29 in	11.43 mm	0.45 in	Vinyl	0.145 in	3.68 mm	Tin	22 AWG	17.5 AWG	Free Hanging (In-Line)	Red	Copper ETP	Brazed Seam	Crimp	Insulated	6 Stud	22.86 mm	0.9 "	Standard	0.34 in	8.64 mm
3M Electronic Specialty MV18-8R/LK					Vinyl	0.145 in	3.68 mm	Tin	22 AWG	17.5 AWG	Free Hanging (In-Line)	Red	Copper ETP	Brazed Seam	Crimp	Insulated	8 Stud	23.62 mm	0.93 in	Circular			7.87 mm	0.31 in	0.76 mm	0.03 in

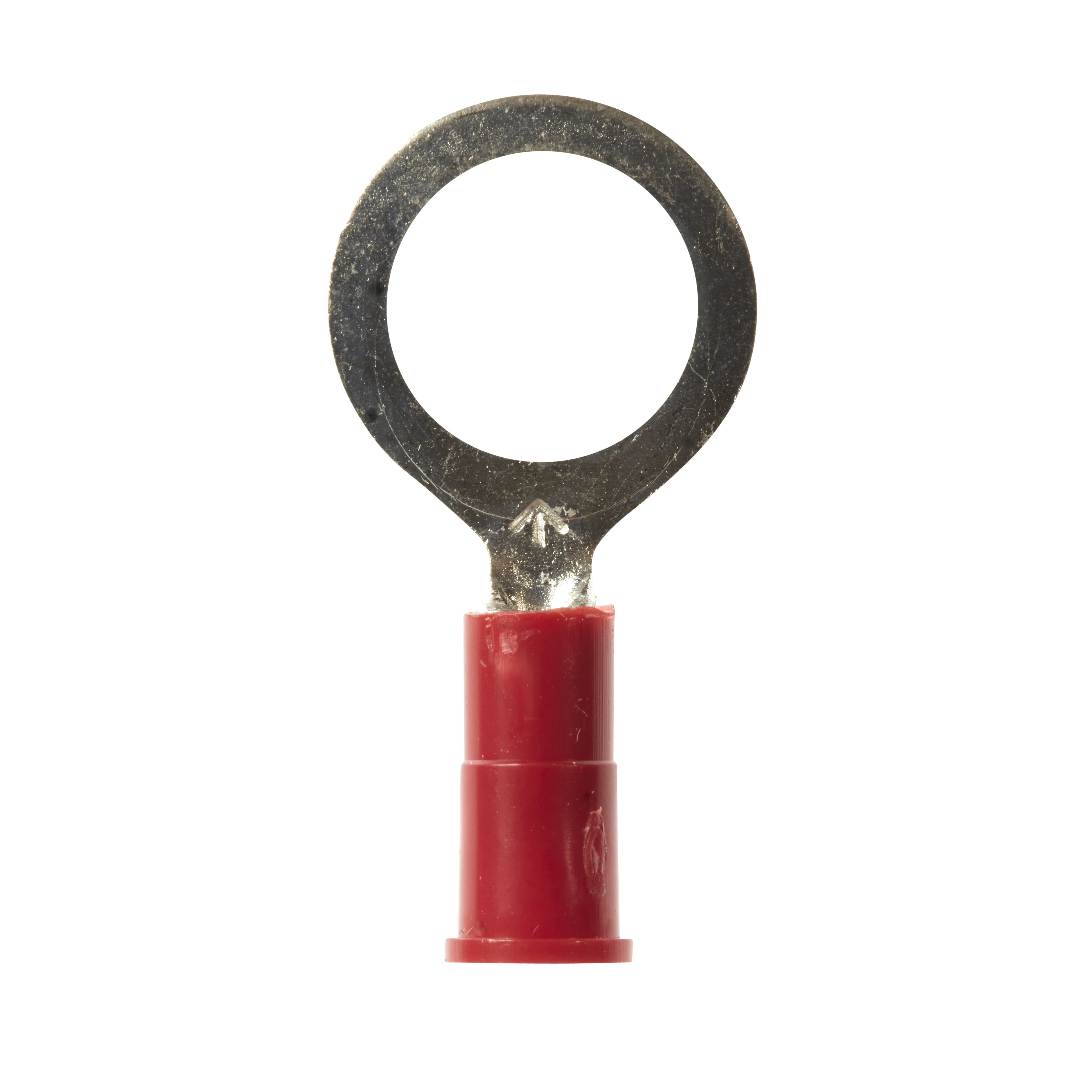

3M Electronic Specialty MV18-38RX-BOTTLE					Vinyl	0.145 in	3.68 mm	Tin	22 AWG	17.5 AWG	Free Hanging (In-Line)	Red	Copper ETP	Brazed Seam	Crimp	Insulated	0.375 Stud			Circular			14.22 mm	0.56 in	0.76 mm	0.03 in	28.7 mm	1.13 in
3M Electronic Specialty MV18-4FLX-BOTTLE			11.43 mm	0.45 in	Vinyl	0.145 in	3.68 mm	Tin	22 AWG	17.5 AWG	Free Hanging (In-Line)	Red	Copper ETP	Brazed Seam	Crimp	Insulated	4 Stud	22.35 mm	0.88 in	Snap Spring									6.35 mm	0.25 "	6.35 mm	0.25 "

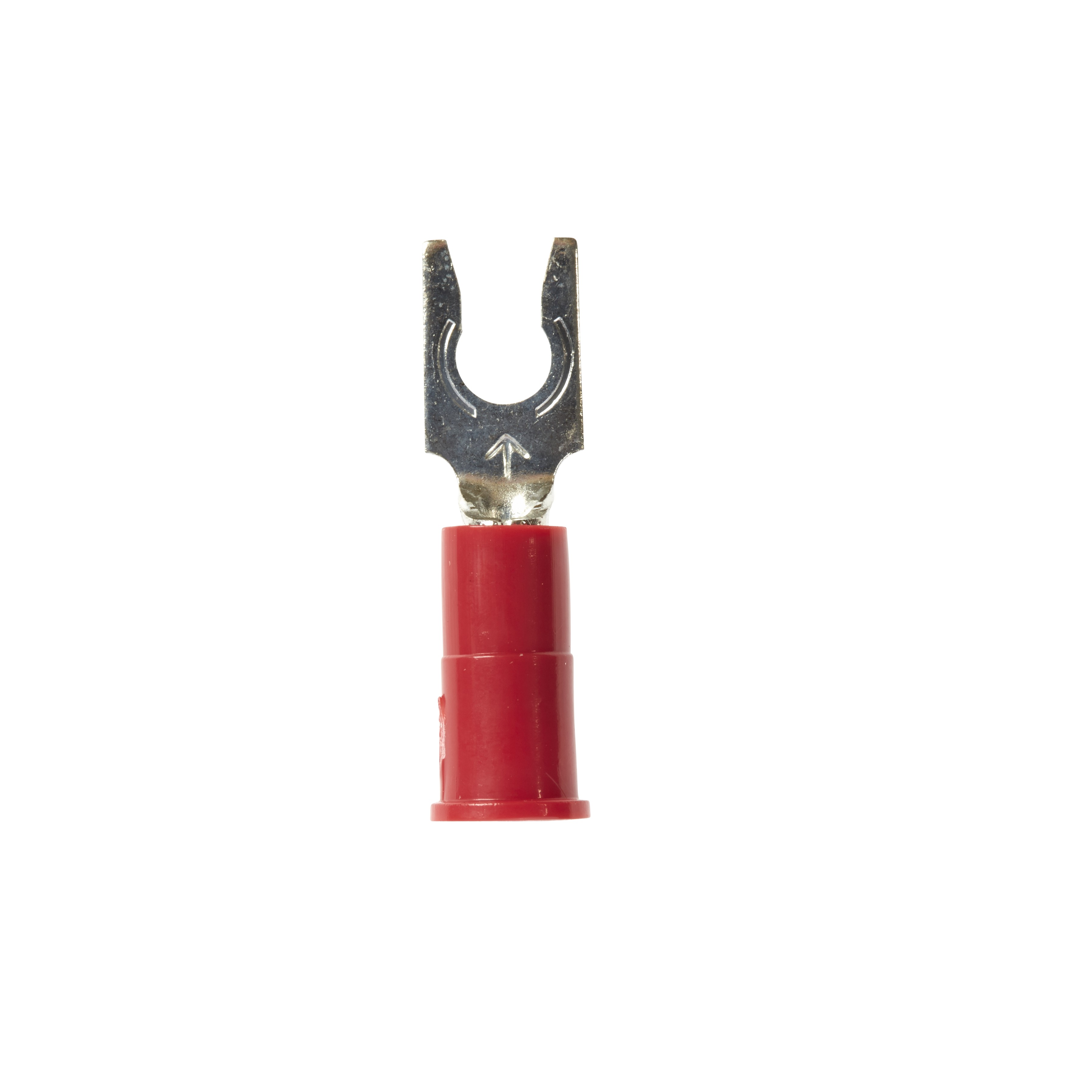

3M Electronic Specialty MV18-6FLK			11.43 mm	0.45 in	Vinyl	0.145 in	3.68 mm	Tin	22 AWG	17.5 AWG	Free Hanging (In-Line)	Red	Copper ETP	Brazed Seam	Crimp	Insulated	6 Stud	22.35 mm	0.88 in	Snap Spring									6.35 mm	0.25 "	6.35 mm	0.25 "
3M Electronic Specialty MV18-6R/SX-BOTTLE					Vinyl	0.145 in	3.68 mm		22 AWG	17.5 AWG	Free Hanging (In-Line)	Red		Brazed Seam	Crimp	Insulated	6 Stud	20.32 mm	0.8 "	Circular					0.76 mm	0.03 in					6.35 mm	0.25 "
3M Electronic Specialty MV18-8FK	7.37 mm	0.29 in	11.43 mm	0.45 in	Vinyl	0.145 in	3.68 mm	Tin	22 AWG	17.5 AWG	Free Hanging (In-Line)	Red	Copper ETP	Brazed Seam	Crimp	Insulated	8 Stud	22.86 mm	0.9 "	Standard	0.34 in	8.64 mm

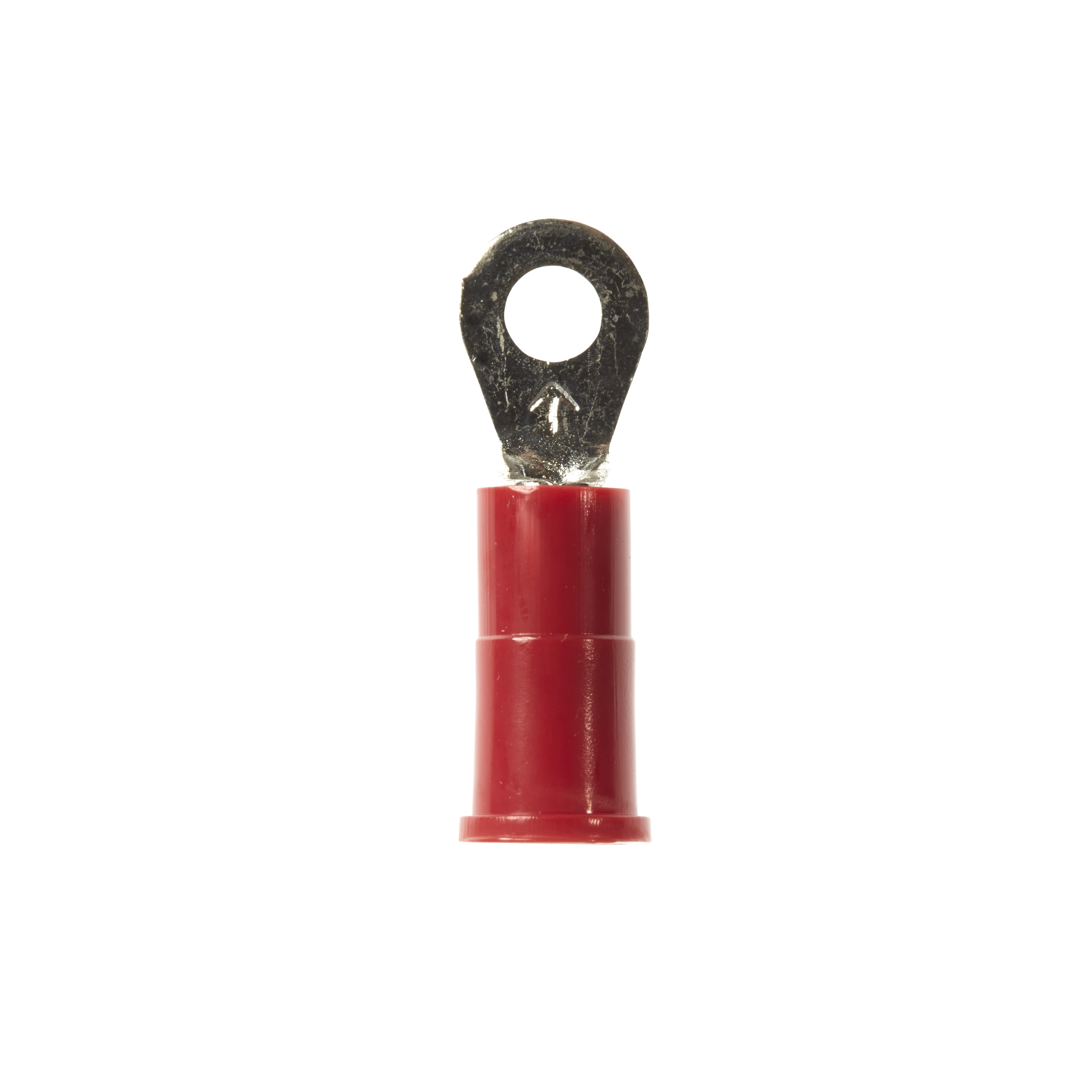

3M Electronic Specialty MV18-4R/SX-BOTTLE					Vinyl	0.145 in	3.68 mm	Tin	22 AWG	17.5 AWG	Free Hanging (In-Line)	Red	Copper ETP	Brazed Seam	Crimp	Insulated	4 Stud	20.32 mm	0.8 "	Circular					0.76 mm	0.03 in					6.35 mm	0.25 "
3M Electronic Specialty MV18-10R/LX-BOTTLE					Vinyl	0.145 in	3.68 mm	Tin	22 AWG	17.5 AWG	Free Hanging (In-Line)	Red	Copper ETP	Brazed Seam	Crimp	Insulated	10 Stud	23.62 mm	0.93 in	Circular			7.87 mm	0.31 in	0.76 mm	0.03 in

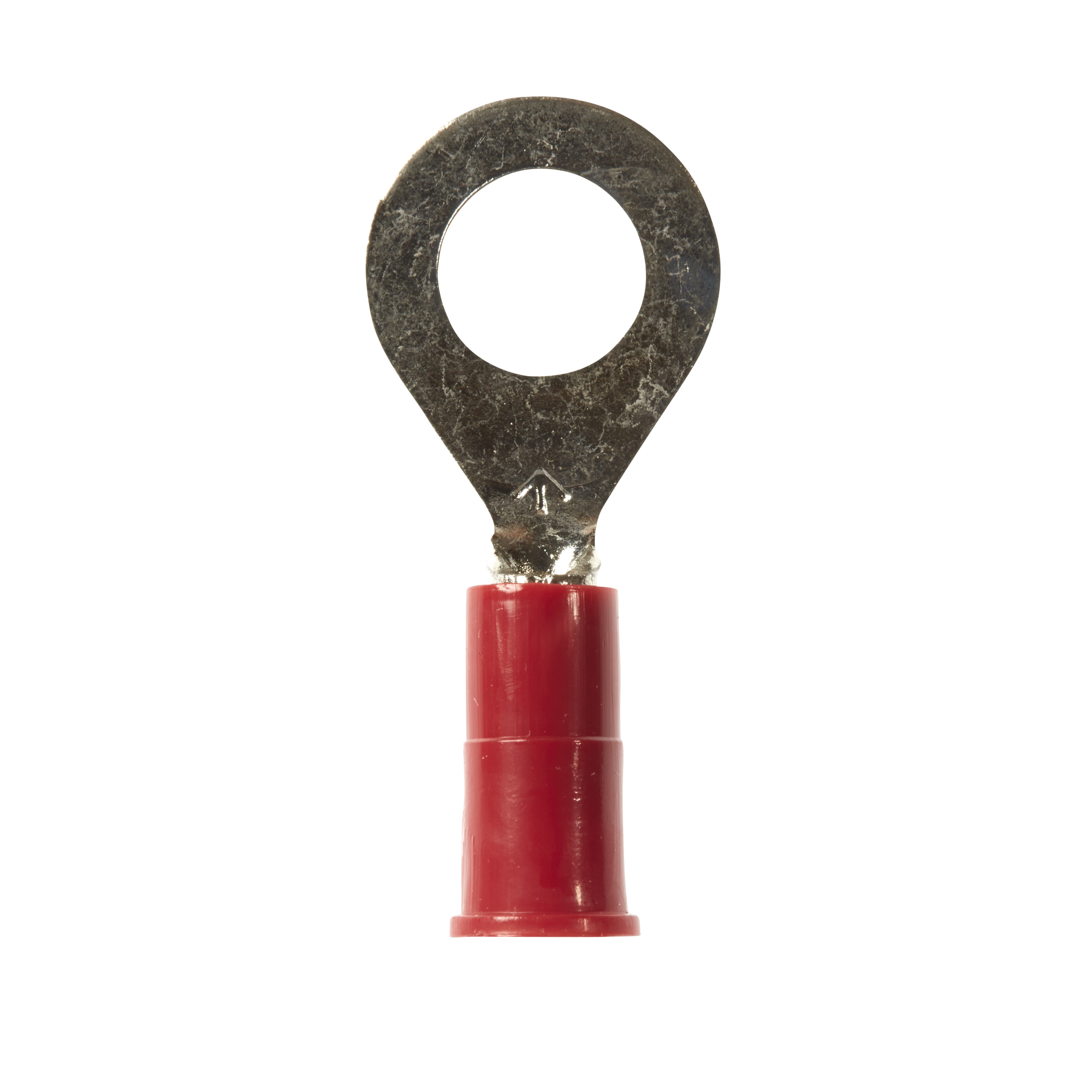

3M Electronic Specialty MV18-14R/SK					Vinyl	0.145 in	3.68 mm	Tin	22 AWG	17.5 AWG	Free Hanging (In-Line)	Red	Copper ETP	Brazed Seam	Crimp	Insulated	0.25 Stud	27.43 mm	1.08 in	Circular					0.76 mm	0.03 in					11.94 mm	0.47 in
