AD5445 Series

Catalog

HIGH BANDWIDTH 12-BIT PARALLEL INTERFACE MULTIPLYING D/A CONVERTER

Part	Data Interface	Settling Time	DNL Maximum (LSB)	DNL (Max) (LSB)	INL (Max) (LSB) Tolerance	INL (Max) (LSB)	DNL Minimum (LSB)	Number of Bits	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Package Name	Output Type	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Architecture	Package Length	Package Width	Reference Type	Operating Temperature (Max)	Operating Temperature (Min)	Differential Output	Number of D/A Converters	Mounting Type	Supplied Contents	Sampling Rate (Per Second)	DAC Type	Utilized IC / Part	Contents	Number of DAC's	Package / Case
Analog Devices Inc./Maxim Integrated AD5445YRUZ-REEL	Parallel	120 ns	2 LSB	2 LSB	1 LSB	1 LSB	-1 LSB	12 bits	5.5 V	2.5 V	20-TSSOP	Current - Unbuffered	2.5 V	5.5 V	R-2R	0.173 in	4.4 mm	External	125 °C	-40 °C	Yes	1 count	Surface Mount
Analog Devices Inc./Maxim Integrated AD5445YRUZ-REEL7	Parallel	120 ns	2 LSB	2 LSB	1 LSB	1 LSB	-1 LSB	12 bits	5.5 V	2.5 V	20-TSSOP	Current - Unbuffered	2.5 V	5.5 V	R-2R	0.173 in	4.4 mm	External	125 °C	-40 °C	Yes	1 count	Surface Mount

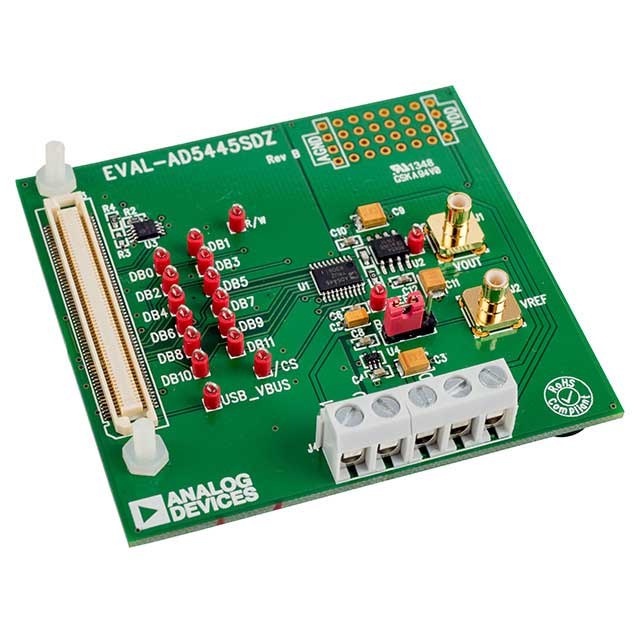

Analog Devices Inc./Maxim Integrated EVAL-AD5445SDZ	Parallel							12 bits																Board(s)	20.4 MHz	Current	AD5445	Board	1
Analog Devices Inc./Maxim Integrated AD5445YCPZ	Parallel	120 ns	2 LSB	2 LSB	1 LSB	1 LSB	-1 LSB	12 bits	5.5 V	2.5 V	20-LFCSP	Current - Unbuffered	2.5 V	5.5 V	R-2R	4 mm	4 mm	External	125 °C	-40 °C	Yes	1 count	Surface Mount							20-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD5445YRUZ	Parallel	120 ns	2 LSB	2 LSB	1 LSB	1 LSB	-1 LSB	12 bits	5.5 V	2.5 V	20-TSSOP	Current - Unbuffered	2.5 V	5.5 V	R-2R	0.173 in	4.4 mm	External	125 °C	-40 °C	Yes	1 count	Surface Mount
