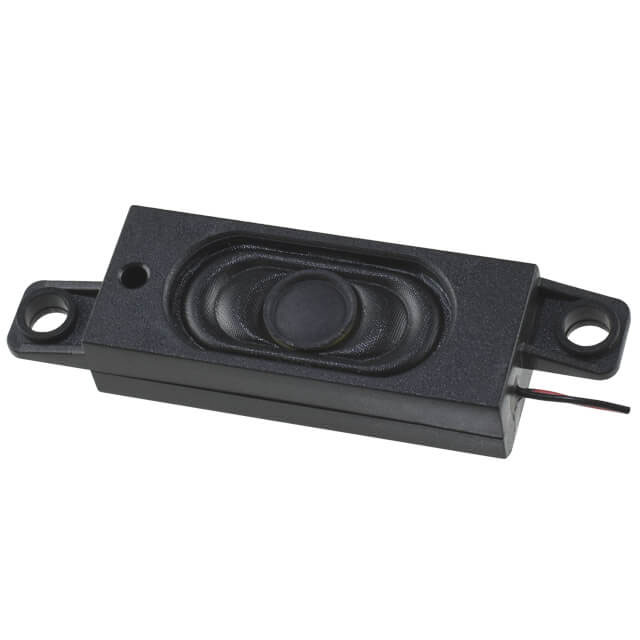

CES-571423 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

SPEAKER 8OHM 2W TOP PORT 100DB

Part	Shape	Impedance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - Type	Efficiency - Testing	Material - Cone	Termination	Material - Magnet	Technology	Port Location	Power - Rated	Efficiency - dBA	Distortion Rating [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Frequency - Self Resonant	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]
Same Sky (Formerly CUI Devices) CES-571423-28PMB	Rectangular	8 Ohms	0.906 in	2.854 in	23 mm	72.5 mm	14.86 mm	0.585 in	Sound Pressure Level (SPL)	2 W/100mm	Cloth	Wire Leads with Connector	Nd-Fe-B	Magnetic	Top	2 W	100 dBA	10 %	-20 ░C	60 °C	General Purpose	700 Hz	560 Hz	20 kHz	3 W
Same Sky (Formerly CUI Devices) CES-571423-28PMA	Rectangular	8 Ohms	0.906 in	2.854 in	23 mm	72.5 mm	14.86 mm	0.585 in	Sound Pressure Level (SPL)	2 W/100mm	Cloth	Wire Leads with Connector	Nd-Fe-B	Magnetic	Top	2 W	100 dBA	10 %	-20 ░C	60 °C	General Purpose	700 Hz	560 Hz	20 kHz	3 W
Same Sky (Formerly CUI Devices) CES-571423-28PMB	Rectangular	8 Ohms	0.906 in	2.854 in	23 mm	72.5 mm	14.86 mm	0.585 in	Sound Pressure Level (SPL)	2 W/100mm	Cloth	Wire Leads with Connector	Nd-Fe-B	Magnetic	Top	2 W	100 dBA				General Purpose Enclosure Included	700 Hz	560 Hz	20 kHz	3 W
Same Sky (Formerly CUI Devices) CES-571423-28PM	Rectangular	8 Ohms	0.906 in	2.854 in	23 mm	72.5 mm	14.86 mm	0.585 in	Sound Pressure Level (SPL)	2 W/100mm	Cloth	Wire Leads	Nd-Fe-B	Magnetic	Top	2 W	100 dBA	10 %	-20 ░C	60 °C	General Purpose Enclosure Included	700 Hz	700 Hz	20 kHz	3 W
Same Sky (Formerly CUI Devices) CES-571423-28PMA	Rectangular	8 Ohms	0.906 in	2.854 in	23 mm	72.5 mm	14.86 mm	0.585 in	Sound Pressure Level (SPL)	2 W/100mm	Cloth	Wire Leads with Connector	Nd-Fe-B	Magnetic	Top	2 W	100 dBA				General Purpose Enclosure Included	700 Hz	560 Hz	20 kHz	3 W
Same Sky (Formerly CUI Devices) CES-571423-28PM	Rectangular	8 Ohms	0.906 in	2.854 in	23 mm	72.5 mm	14.86 mm	0.585 in	Sound Pressure Level (SPL)	2 W/100mm	Cloth	Wire Leads	Nd-Fe-B	Magnetic	Top	2 W	100 dBA				General Purpose Enclosure Included	700 Hz	700 Hz	20 kHz	3 W
