N4614 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

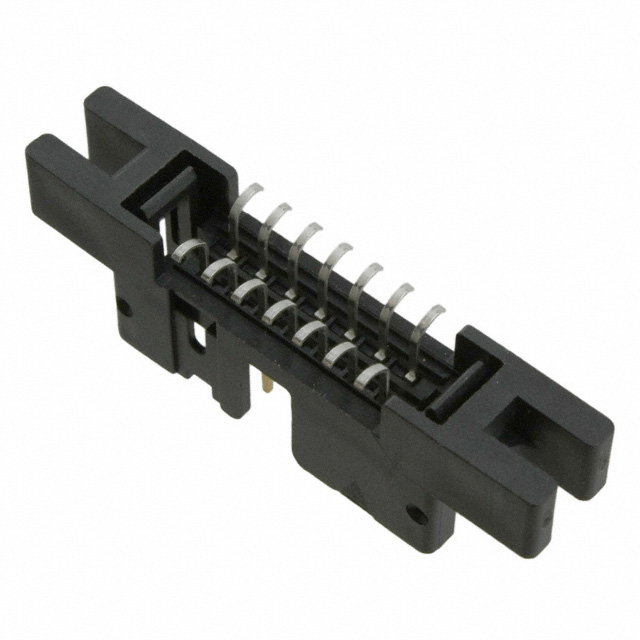

CONN HEADER SMD 14POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Contact Finish - Post | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Current Rating (Amps) | Contact Material | Style | Termination | Insulation Material | Number of Positions Loaded | Mounting Type | Number of Positions | Number of Rows [custom] | Contact Shape | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 7.62 µm | 300 µin | UL94 V-0 | Tin | Male Pin | 0.1 in | 2.54 mm | 13.34 mm | 0.525 " | 0.76 Ám | 30 Áin | Header | Gold | -55 C | 105 ░C | Push-Pull | 1.25 A | Copper Alloy | Board to Cable/Wire | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Surface Mount | 14 | 2 | Square | 0.1 " | 2.54 mm | Shrouded - 4 Wall | Black |
 3M Electronic Specialty | 7.62 µm | 300 µin | UL94 V-0 | Tin | Male Pin | 0.1 in | 2.54 mm | 13.34 mm | 0.525 " | 0.76 Ám | 30 Áin | Header | Gold | -55 C | 105 ░C | Latch Lock/Eject Hooks Long | 1.25 A | Copper Alloy | Board to Cable/Wire | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Surface Mount | 14 | 2 | Square | 0.1 " | 2.54 mm | Shrouded - 4 Wall | Black |
