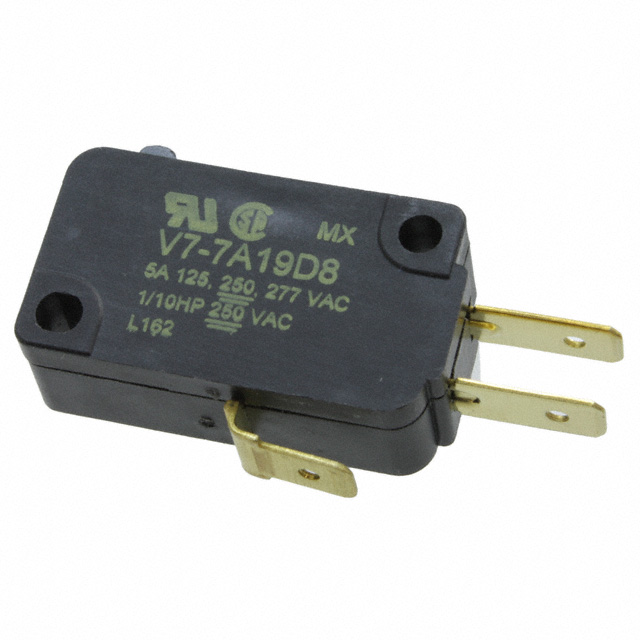

V7-7A1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Termination Style | Mounting Type | Mechanical Life | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Operating Force | Current Rating (Amps) | Voltage Rating - AC | Actuator Type | Differential Travel | Differential Travel | Electrical Life | Release Force | Overtravel [custom] | Overtravel [custom] | Pretravel | Pretravel | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Quick Connect | Chassis Mount | 10000000 Cycles | On-Mom | 85 °C | -40 C | SPDT | 273 gf | 5 A | 125 V | Lever Formed | ||||||||||
 Honeywell Sensing and Productivity Solutions | Quick Connect | Chassis Mount | 10000000 Cycles | On-Mom | 85 °C | -40 C | SPDT | 227 gf | 5 A | 125 V | Round (Pin Plunger) | 0.015 in | 0.38 mm | 100000 Cycles | 57 gf | 1.27 mm | 0.05 " | 1.2 mm | 0.047 in | 14.7 mm | 0.579 in |
