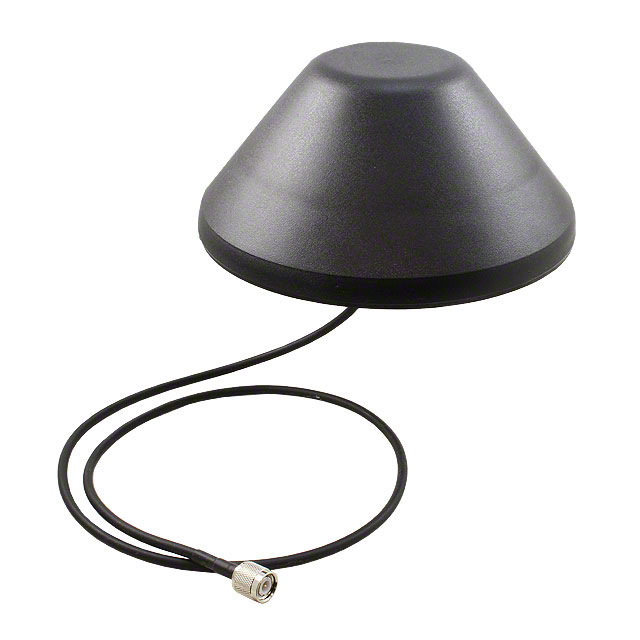

SMS69273 Series

Catalog

RF ANT 700MHZ/850MHZ DOME PNL MT

Part	Power - Max [Max]	Termination	Frequency Group	Features	RF Family/Standard	Frequency (Center/Band)	VSWR	Height (Max) [z]	Height (Max) [z]	Mounting Type	Antenna Type	Ingress Protection	Applications	Number of Bands	Gain	Frequency Range [Max]	Frequency Range [Min]
TE Connectivity AMP Connectors SMS69273-91TNM	3 W	TNC Male	Wide Band	Cable - 914mm	Cellular	1.8 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	2	87 mm	3.425 in	Panel Mount	Dome	IP67	AWS DCS GSM LTE MDS UMTS	2	0.2 dBi 0.8 dBi	2.7 GHz 960 MHz	1.71 GHz 698 MHz
TE Connectivity AMP Connectors SMS69273-91TNM	3 W	TNC Male	Wide Band	Cable - 914mm	Cellular	1.8 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	2	87 mm	3.425 in	Panel Mount	Dome	IP67	AWS DCS GSM LTE MDS UMTS	2	0.2 dBi 0.8 dBi	2.7 GHz 960 MHz	1.71 GHz 698 MHz
