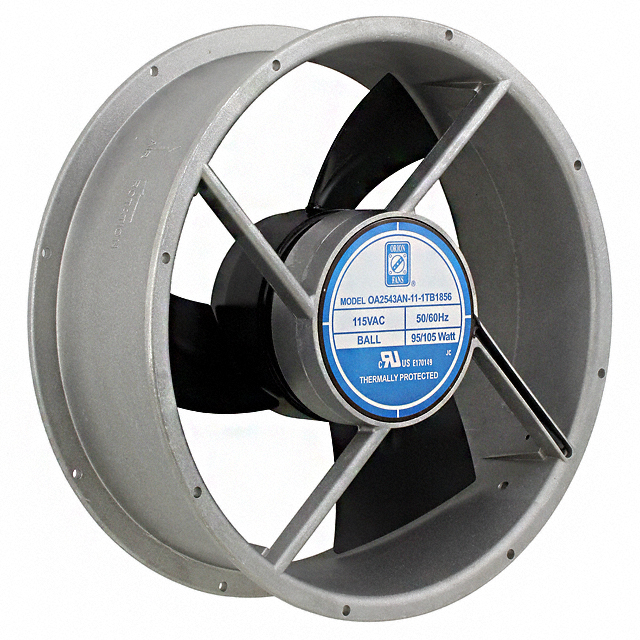

OA2543AN Series
Manufacturer: ORION FANS
Beta
⌘K
AC FAN BALL BEARING 115V 95W/105W 50HZ/60HZ 2800RPM/3300RPM 800CFM/930CFM 66DB FLANGE MOUNT
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Frame | Fan Type | RPM | Width [y] | Static Pressure | Static Pressure | Power (Watts) | Noise | Weight | Weight | Bearing Type | Ingress Protection | Size / Dimension | Size / Dimension [diameter] | Air Flow | Air Flow | Approval Agency | Features | Termination | Voltage - Rated | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Metal | 120 VAC | 100 VAC | 50000 Hrs | Aluminum | Tubeaxial | 3300 RPM | 89 mm | 266.5 Pa | 1.07 in H2O | 105 W | 67 dB | 2.1 kg | 4.6 lbs | Ball | IP56 - Dust Protected Water Resistant | Round | 10 in | 26.04 m³/min | 930 CFM | cURus TUV | Capacitor Thermal Overload Protector (TOP) | 2 Wire Leads | 115 VAC | |
 ORION FANS | Metal | 50000 Hrs | Aluminum | Tubeaxial | 3300 RPM | 89 mm | 266.5 Pa | 1.07 in H2O | 105 W | 67 dB | 2.1 kg | 4.6 lbs | Ball | IP56 - Dust Protected Water Resistant | Round | 10 in | 26.04 m³/min | 930 CFM | cURus TUV | Capacitor Thermal Overload Protector (TOP) | 2 Wire Leads | 230 VAC | |||
ORION FANS | Metal | 50000 Hrs | Aluminum | Tubeaxial | 3300 RPM | 89 mm | 266.5 Pa | 1.07 in H2O | 105 W | 67 dB | 2.1 kg | 4.6 lbs | Ball | IP56 - Dust Protected Water Resistant | Round | 10 in | 26.04 m³/min | 930 CFM | cURus TUV | Capacitor Thermal Overload Protector (TOP) | 230 VAC | 2 | |||
 ORION FANS | Metal | 120 VAC | 100 VAC | 50000 Hrs | Aluminum | Tubeaxial | 3300 RPM | 89 mm | 266.5 Pa | 1.07 in H2O | 105 W | 67 dB | 2.1 kg | 4.6 lbs | Ball | IP56 - Dust Protected Water Resistant | Round | 10 in | 26.04 m³/min | 930 CFM | cURus TUV | Capacitor Thermal Overload Protector (TOP) | 115 VAC | 2 |
