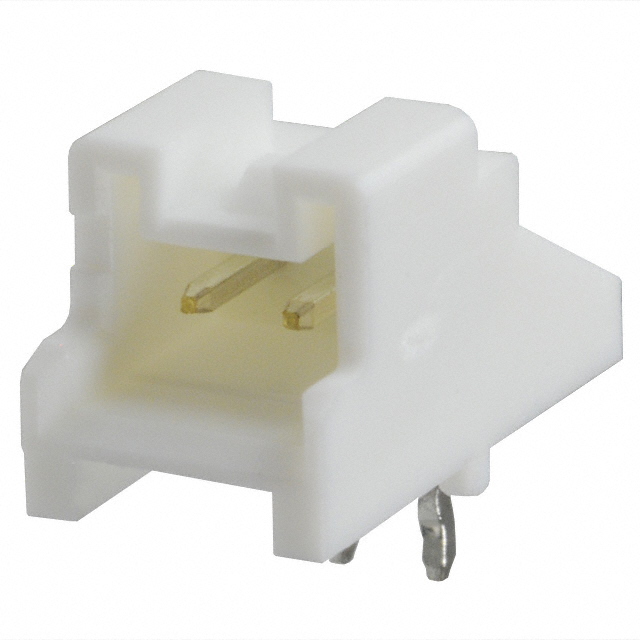

S02B-PAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 2POS 2MM
| Part | Features | Shrouding | Contact Type | Contact Length - Post [x] | Contact Length - Post | Contact Material | Pitch - Mating | Pitch - Mating | Termination | Voltage Rating | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Insulation Color | Contact Shape | Contact Finish - Post | Mounting Type | Material Flammability Rating | Current Rating (Amps) | Connector Type | Number of Positions | Number of Rows | Number of Positions Loaded | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board Guide | Shrouded - 4 Wall | Male Pin | 0.134 " | 3.4 mm | Copper Alloy | 0.079 " | 2 mm | Kinked Pin Solder | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Locking Ramp | 0.256 in | 6.5 mm | 0.126 in | 3.2 mm | Natural | Square | Tin | Right Angle Through Hole | UL94 V-0 | 3 A | Header | 2 | 1 | All | Board to Cable/Wire |
