CGS CCR Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
THROUGH HOLE CERAMIC RESISTOR, CCR SERIES, 15 OHM, 2 W, - 10%, 400 V, AXIAL LEADED
| Part | Tolerance | Power (Watts) | Composition | Features | Supplier Device Package | Resistance | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Number of Terminations [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Temperature Coefficient | Size / Dimension [diameter] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 10 % | 2 W | Ceramic | Pulse Withstanding | Axial | 15 Ohms | 7 mm | 0.276 in | 19 mm | 0.748 in | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C | ||
 TE Connectivity AMP Connectors | 10 % | 2 W | Ceramic | Pulse Withstanding | Axial | 68 Ohms | 7 mm | 0.276 in | 19 mm | 0.748 in | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C | ||
 TE Connectivity AMP Connectors | 10 % | 1 W | Ceramic | Pulse Withstanding | Axial | 10 Ohms | 0.217 " | 16.51 mm | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C | 5.5 mm | 16.5 mm | ||
 TE Connectivity AMP Connectors | 10 % | 1 W | Ceramic | Pulse Withstanding | 4.7 Ohms | 0.217 " | 16.51 mm | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C | 5.5 mm | 16.5 mm | |||

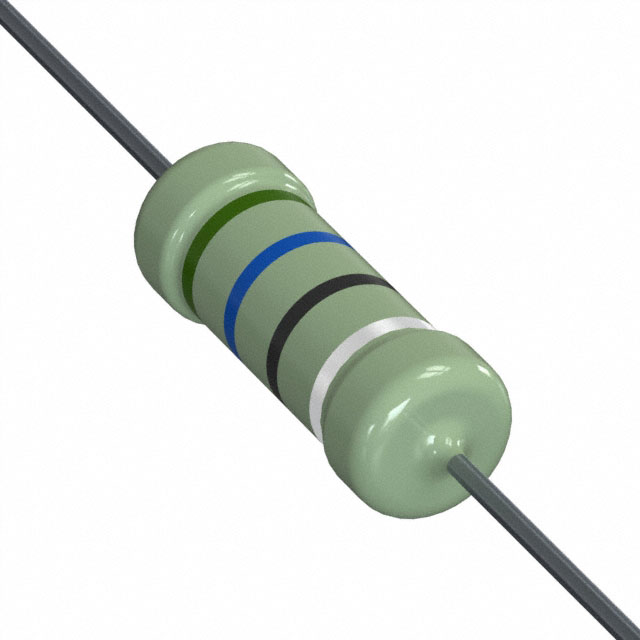

 TE Connectivity AMP Connectors | 10 % | 2 W | Ceramic | Pulse Withstanding | Axial | 56 Ohms | 7 mm | 0.276 in | 19 mm | 0.748 in | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C | ||
 TE Connectivity AMP Connectors | 10 % | 2 W | Ceramic | Pulse Withstanding | Axial | 22 kOhms | 7 mm | 0.276 in | 19 mm | 0.748 in | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C | ||
 TE Connectivity AMP Connectors | 10 % | 2 W | Ceramic | Pulse Withstanding | Axial | 33 Ohms | 7 mm | 0.276 in | 19 mm | 0.748 in | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C | ||
 TE Connectivity AMP Connectors | 10 % | 2 W | Ceramic | Pulse Withstanding | Axial | 22 Ohms | 7 mm | 0.276 in | 19 mm | 0.748 in | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C | ||
 TE Connectivity AMP Connectors | 10 % | 2 W | Ceramic | Pulse Withstanding | Axial | 6.8 Ohms | 7 mm | 0.276 in | 19 mm | 0.748 in | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C | ||

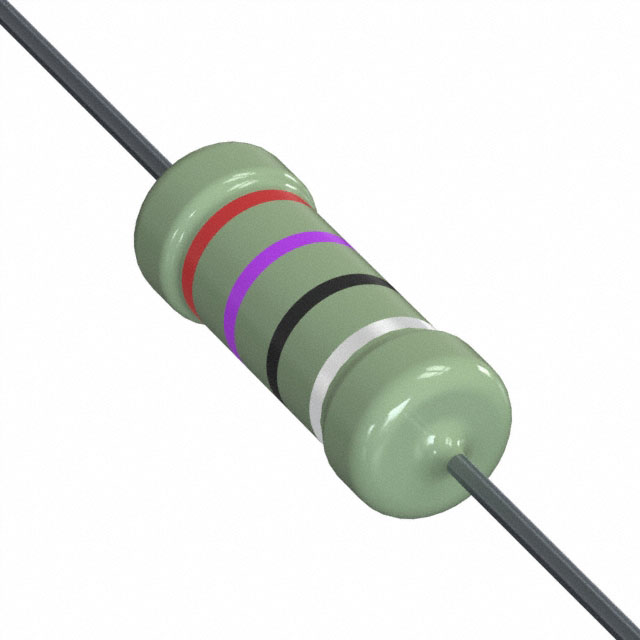

 TE Connectivity AMP Connectors | 10 % | 2 W | Ceramic | Pulse Withstanding | Axial | 27 Ohms | 7 mm | 0.276 in | 19 mm | 0.748 in | 2 | -40 C | 200 °C | Axial | 1300 ppm/°C |
