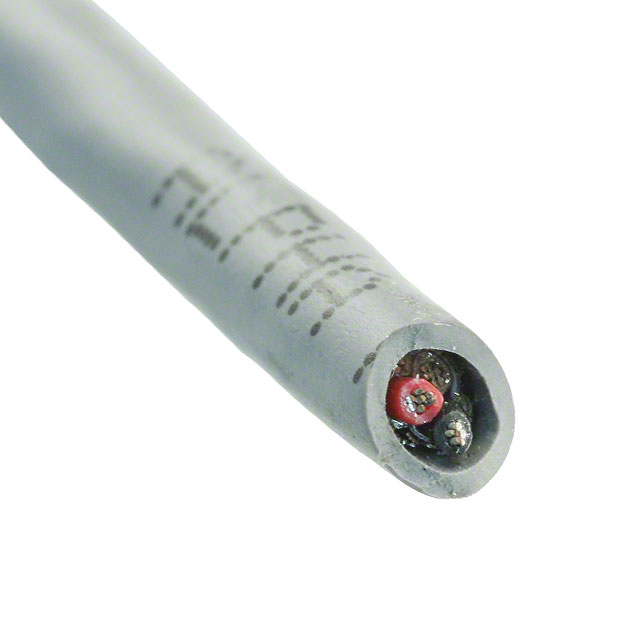

5113C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
XTRA-GUARD 1 /500 FT /EACH ROHS COMPLIANT: YES
| Part | Shield Coverage | Shield Material | Conductor Insulation | Voltage | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Shield Type | Cable Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Ratings | Usage | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | 300 VDC | 152.4 m | 500 ft | 4.85 mm | 0.191 " | Poly-Vinyl Chloride (PVC) | Braid Foil | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 7 | 32 AWG | 3 | 24 AWG | 0.813 mm | 0.032 in | Copper Tinned | ISO 10993 UL Style 2464 | Communication Control | Slate | -35 °C | 105 ░C |
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | 300 VDC | 4.85 mm | 0.191 " | Poly-Vinyl Chloride (PVC) | Braid Foil | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 7 | 32 AWG | 3 | 24 AWG | 0.813 mm | 0.032 in | Copper Tinned | ISO 10993 UL Style 2464 | Communication Control | Slate | -35 °C | 105 ░C |
