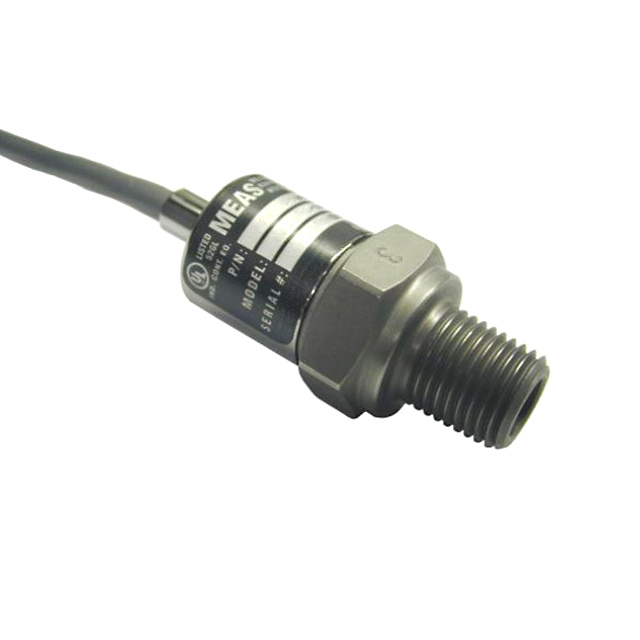

MEAS MSP300 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PRESSURE TRANSMITTER, GAUGE, 0-250PSI

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Output [Min]	Package / Case	Applications	Pressure Type	Port Size	Port Size	Port Size	Accuracy	Operating Pressure	Operating Pressure	Features	Maximum Pressure	Maximum Pressure	Port Style	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Output	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity AMP Connectors M3041-000006-250PG	85 °C	-20 ░C	5 V	1 V	Cylinder Threaded	Industrial Automation	Vented Gauge	0.125 in	Male NPT	3.18 mm	1 %	250 PSI	1723.69 kPa	Amplified Output Temperature Compensated	3447.38 kPa	500 PSI	Threaded	Cable	10 VDC	30 VDC	Analog Voltage
TE Connectivity AMP Connectors M3021-000005-500PG	85 °C	-20 ░C	100 mV	0 mV	Cylinder Threaded	Industrial Automation	Vented Gauge	0.25 "	Male NPT	0.25 in	1 %	500 PSI	3447.38 kPa	Temperature Compensated	6894.76 kPa	1000 PSI	Threaded	Cable			Analog Voltage	5 V
TE Connectivity AMP Connectors M3021-000005-250PG	85 °C	-20 ░C	100 mV	0 mV	Cylinder Threaded	Industrial Automation	Vented Gauge	0.25 "	Male NPT	0.25 in	1 %	250 PSI	1723.69 kPa	Amplified Output Temperature Compensated	3447.38 kPa	500 PSI	Threaded	Cable			Analog Voltage	5 V
TE Connectivity AMP Connectors M3021-000005-1K5PG
TE Connectivity AMP Connectors M3041-000006-01KPG	85 °C	-20 ░C	5 V	1 V	Cylinder Threaded	Industrial Automation	Vented Gauge	0.125 in	Male NPT	3.18 mm	1 %	1000 PSI	6894.76 kPa	Amplified Output Temperature Compensated	13789.51 kPa		Threaded	Cable	10 VDC	30 VDC	Analog Voltage		2000 PSI
TE Connectivity AMP Connectors M3051-000005-100PG	85 °C	-20 ░C	20 mA	4 mA	Cylinder Threaded	Industrial Automation	Vented Gauge	0.25 "	Male NPT	0.25 in	1 %	100 PSI	689.48 kPa	Amplified Output Temperature Compensated	1378.95 kPa	200 PSI	Threaded	Cable	9 V	30 VDC	Analog Current
TE Connectivity AMP Connectors M3051-000005-05KPG	85 °C	-20 ░C	20 mA	4 mA	Cylinder Threaded	Industrial Automation	Vented Gauge	0.25 "	Male NPT	0.25 in	1 %	5000 PSI	34473.79 kPa	Amplified Output Temperature Compensated			Threaded	Cable	9 V	30 VDC	Analog Current		10000 PSI	68947.57 kPa
TE Connectivity AMP Connectors M3021-000005-10KPG	85 °C	-20 ░C	100 mV	0 mV	Cylinder Threaded	Industrial Automation	Vented Gauge	0.25 "	Male NPT	0.25 in	1 %	10000 PSI	68947.57 kPa	Temperature Compensated	137895.15 kPa	20000 PSI	Threaded	Cable			Analog Voltage	5 V
TE Connectivity AMP Connectors M3041-000005-05KPG	85 °C	-20 ░C	5 V	1 V	Cylinder Threaded	Industrial Automation	Vented Gauge	0.25 "	Male NPT	0.25 in	1 %	5000 PSI	34473.79 kPa	Amplified Output Temperature Compensated			Threaded	Cable	10 VDC	30 VDC	Analog Voltage		10000 PSI	68947.57 kPa
TE Connectivity AMP Connectors M3021-000005-01KPG	85 °C	-20 ░C	100 mV	0 mV	Cylinder Threaded	Industrial Automation	Vented Gauge	0.25 "	Male NPT	0.25 in	1 %	1000 PSI	6894.76 kPa	Temperature Compensated	13789.51 kPa		Threaded	Cable			Analog Voltage	5 V	2000 PSI
