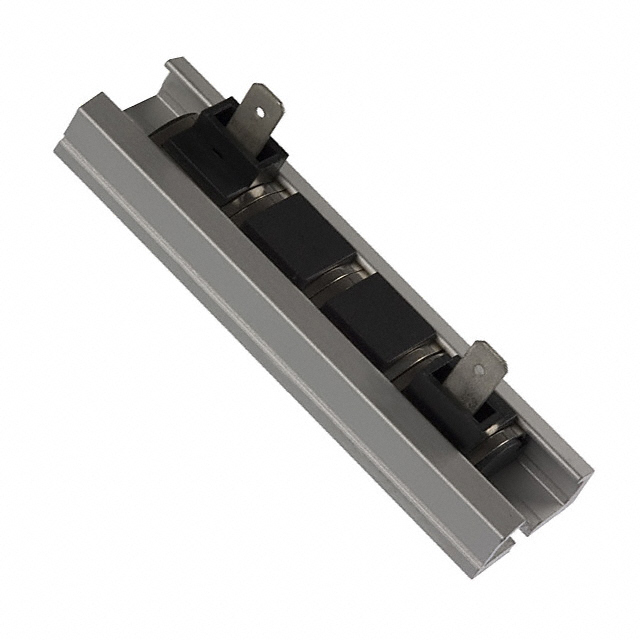

TL Series
Manufacturer: Ohmite
Beta
⌘K
PLANAR RESISTORS - CHASSIS MOUNT 1K OHM 10% 88MM MODULAR HEAT SINK
| Part | Lead Style | Lead Style | Lead Style | Mounting Feature | Power (Watts) | Composition | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Tolerance | Package / Case | Temperature Coefficient | Resistance | Coating, Housing Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 6.35 mm | 0.25 " | Quick Connects | Flanges | 114 W | Thick Film | 25.7 mm | 1.012 " | 3.465 in | 88 mm | 10 % | Module | 250 ppm/°C | 1000 Ohms | Aluminum | 125 °C | -40 C |
 Ohmite | 6.35 mm | 0.25 " | Quick Connects | Flanges | 114 W | Thick Film | 25.7 mm | 1.012 " | 3.465 in | 88 mm | 10 % | Module | 250 ppm/°C | 50 Ohms | Aluminum | 125 °C | -40 C |
