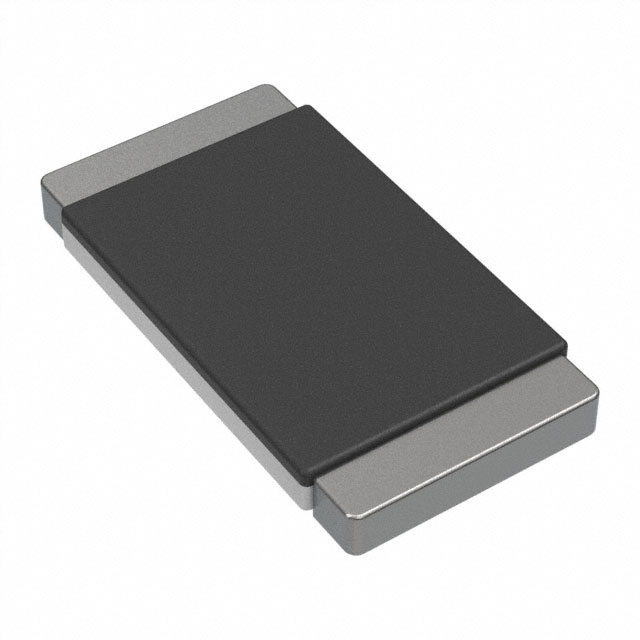

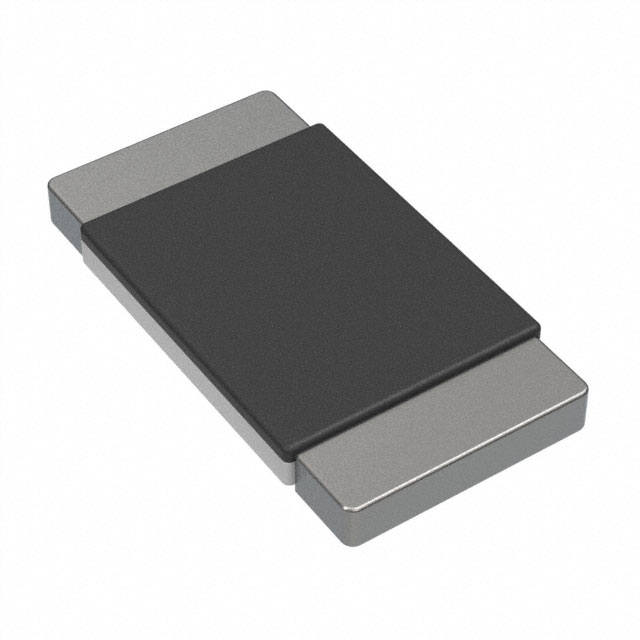

SCMM2512S5 Series

Catalog

RES SMD 500 UOHM 1% 5W 2512

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Composition	Number of Terminations [custom]	Temperature Coefficient	Package / Case	Power (Watts)	Resistance	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance
Delta Electronics/Cyntec SCMM2512S5-0M50F	2512 2512 (6432 Metric)	-65 ░C	170 °C	Metal Film	2	100 ppm/°C	6332 Metric	5 W	0.5 mOhms	2512	0.126 in	3.2 mm	0.25 in	6.35 mm	Current Sense Pulse Withstanding	0.033 in	0.85 mm	1 %
Delta Electronics/Cyntec SCMM2512S5-R001F	2512 2512 (6432 Metric)	-65 ░C	170 °C	Metal Film	2	50 ppm/░C	6332 Metric	5 W	1 mOhms	2512	0.126 in	3.2 mm	0.25 in	6.35 mm	Current Sense Pulse Withstanding	0.033 in	0.85 mm	1 %
Delta Electronics/Cyntec SCMM2512S5-0M80F	2512 (6432 Metric)	-65 ░C	170 °C	Metal Film	2	75 ppm/°C		5 W	0.8 mOhms	2512	0.126 in	3.2 mm	0.25 in	6.35 mm	Current Sense Pulse Withstanding	0.033 in	0.85 mm	1 %
