ECA-1JM Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 220UF 20% 63V RADIAL TH

Part	Polarization	Voltage - Rated	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Applications	Lifetime @ Temp.	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Capacitance	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]

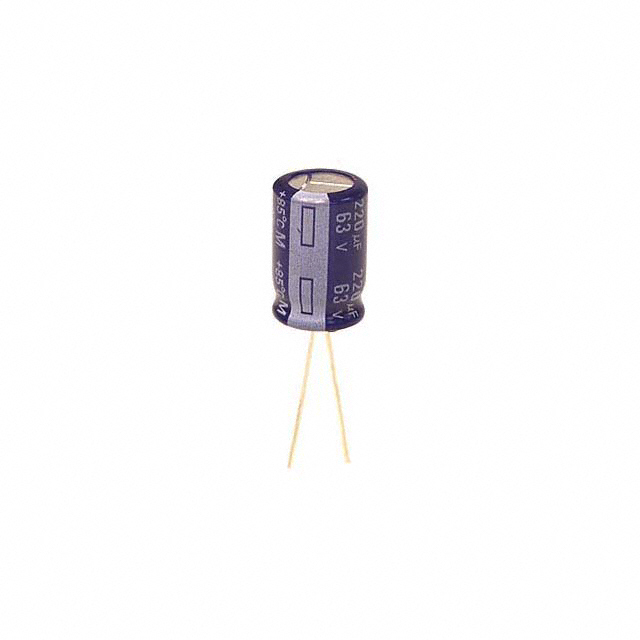

Panasonic Electronic Components ECA-1JM221	Polar	63 V	0.197 "	5 mm	765 mA	0.394 in	10 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %	0.669 "	17 mm	450 mA	220 µF

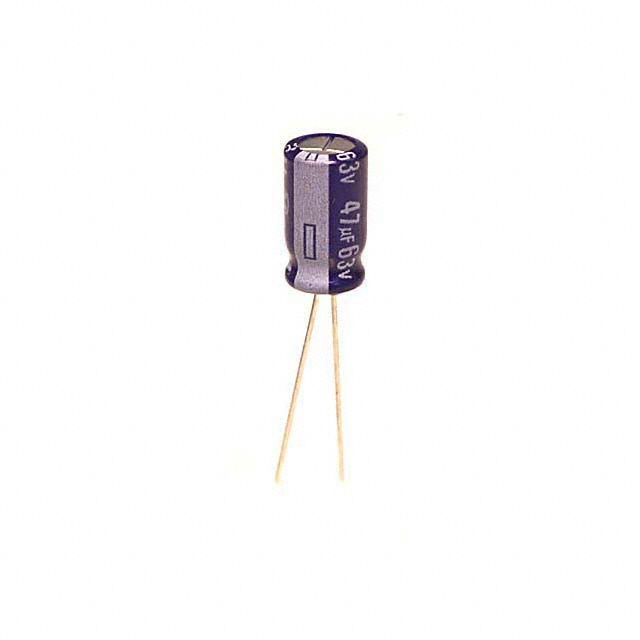

Panasonic Electronic Components ECA-1JM470	Polar	63 V	0.098 in	2.5 mm	272 mA	0.248 "	6.3 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %			160 mA	47 µF	12.2 mm	0.48 in
Panasonic Electronic Components ECA-1JM330B	Polar	63 V	0.197 "	5 mm	221 mA	0.248 "	6.3 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %			130 mA	33 ÁF	12.2 mm	0.48 in
Panasonic Electronic Components ECA-1JM331B	Polar	63 V	0.197 "	5 mm	935 mA	0.394 in	10 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %				330 µF			0.866 in	22 mm
Panasonic Electronic Components ECA-1JM470I	Polar	63 V	0.098 in	2.5 mm	272 mA	0.248 "	6.3 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %			160 mA	47 µF	12.2 mm	0.48 in
Panasonic Electronic Components ECA-1JM470B	Polar	63 V	0.197 "	5 mm	272 mA	0.248 "	6.3 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %			160 mA	47 µF	12.2 mm	0.48 in

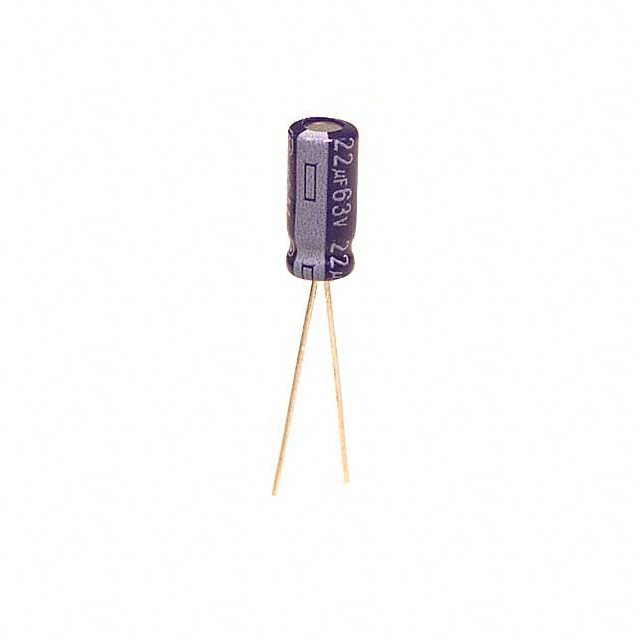

Panasonic Electronic Components ECA-1JM220	Polar	63 V	0.079 in	2 mm	178.5 mA	0.197 in	5 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %			105 mA	22 µF	12 mm	0.472 in
Panasonic Electronic Components ECA-1JM101BJ	Polar	63 V	0.138 in	3.5 mm	459 mA	0.315 in	8 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %		0.492 in	270 mA	100 µF					12.5 mm
Panasonic Electronic Components ECA-1JM221B	Polar	63 V	0.197 "	5 mm	765 mA	0.394 in	10 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %	0.669 "	17 mm	450 mA	220 µF
Panasonic Electronic Components ECA-1JM100I	Polar	63 V	0.098 in	2.5 mm	119 mA	0.197 in	5 mm	85 °C	-40 C	Can Radial	Through Hole	General Purpose	2000 Hrs	20 %			70 mA	10 µF	12 mm	0.472 in
