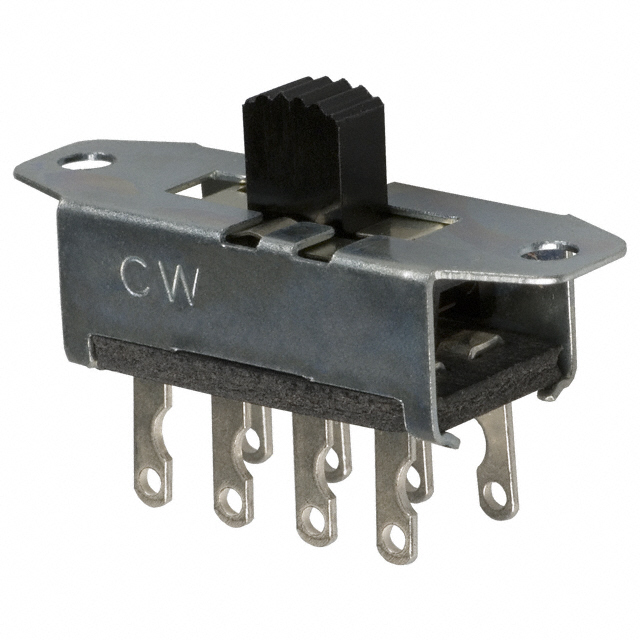

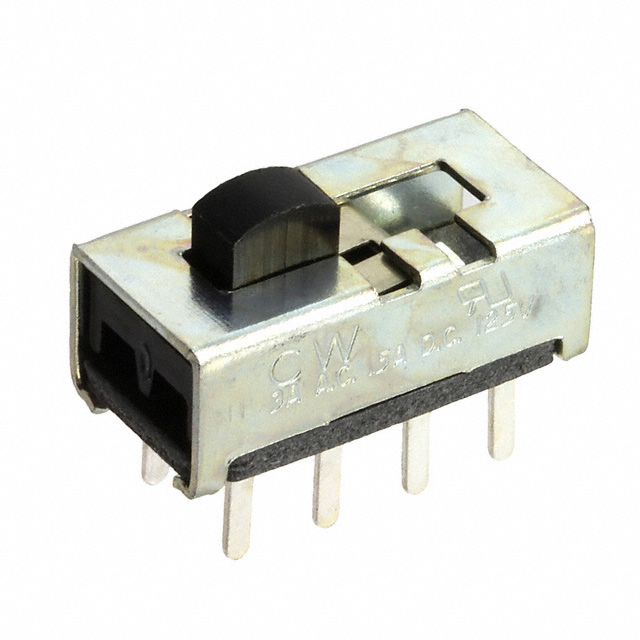

G-128S Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE DP3T 500MA 125V
| Part | Mechanical Life | Actuator Material | Electrical Life | Switch Travel | Actuator Type | Actuator Length [x] | Switch Function | Voltage Rating - AC | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current Rating (Amps) | Termination Style | Contact Timing | Voltage Rating - DC | Contact Material | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 8.33 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Panel Mount | 500 mA | PC Pin | Not Specified | 125 VDC | Copper | DP3T |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 5.08 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Panel Mount | 3 A 500 mA | PC Pin | Not Specified | 125 VDC | Copper | DP3T |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 8.33 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Panel Mount | 500 mA | PC Pin | Not Specified | 125 VDC | Copper | DP3T |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 5.08 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Panel Mount | 500 mA | Solder Lug | Not Specified | 125 VDC | Copper | DP3T |
 CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 5.08 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Through Hole | 500 mA | PC Pin | Not Specified | 125 VDC | Copper | DP3T |
 CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 5.08 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Panel Mount | 3 A 500 mA | Solder Lug | Non-Shorting (BBM) | 125 VDC | Copper | DP3T |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 5.08 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Through Hole | 500 mA | PC Pin | Not Specified | 125 VDC | Copper | DP3T |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 3.18 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Through Hole | 3 A 500 mA | PC Pin | Not Specified | 125 VDC | Copper | DP3T |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 5.08 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Panel Mount | 6 A 500 mA | PC Pin | Not Specified | 125 VDC | Copper | DP3T |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | Standard | 11.5 mm | On-On-On | 125 V | Silver | -10 °C | 104 °C | Through Hole | 500 mA | PC Pin | Not Specified | 125 VDC | Copper | DP3T |
