NM-14 Series
Manufacturer: Essentra Components
Beta
⌘K

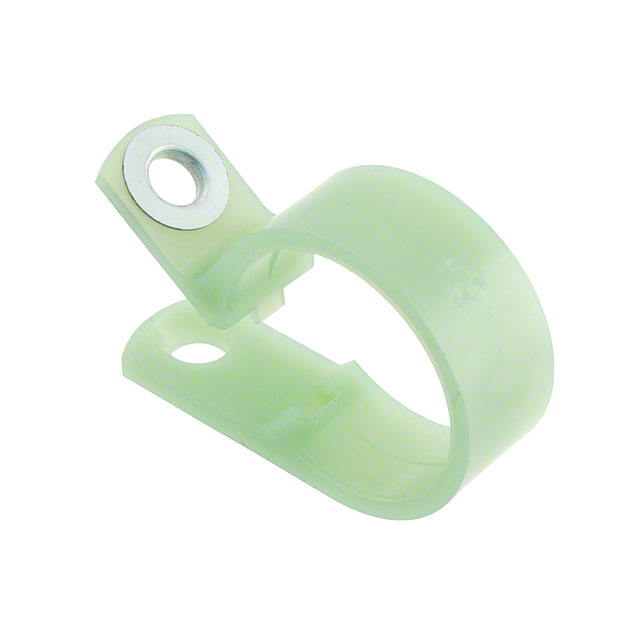

FASTENER, SCREW MOUNT CABLE CLAMP, 0.875 ", NYLON (POLYAMIDE), GREEN, 0.553 "
| Part | Screw Size | Screw Size | Bundle Center to Mounting Center [x] | Bundle Center to Mounting Center [x] | Mounting Type | Width [y] | Width [y] | Material | Features | Panel Hole Size | Panel Hole Size | Material Thickness | Material Thickness | Opening Size | Opening Size | Type Attributes | Color | Material Flammability Rating | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | M5 | #10 | 0.878 in | 22.3 mm | Fastener | 0.503 in | 12.78 mm | Polyamide (PA66) Nylon 6/6 | Eyelet Heat Stabilized | 0.206 in | 5.23 mm | 1.73 mm | 0.068 in | 0.875 " | 22.22 mm | Ribbed | Green | UL94 V-2 | Clamp P-Type |
