SV4 Series
Manufacturer: E-Switch
Beta
⌘K

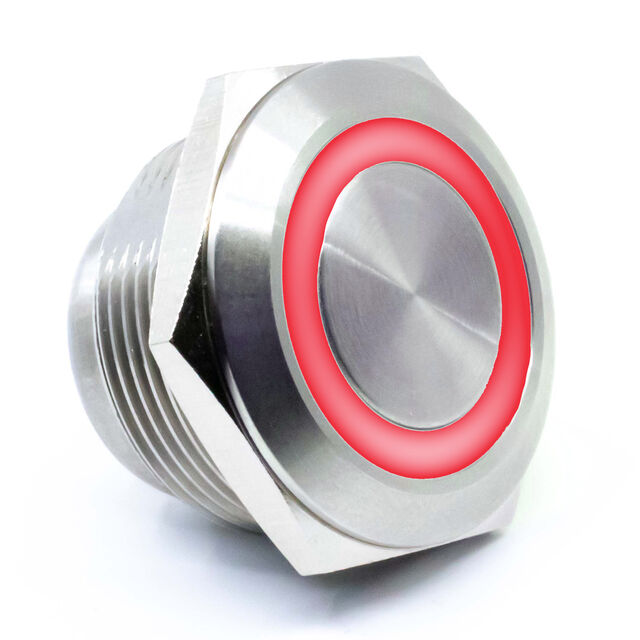

PUSHBUTTON SWITCHES ANTI-VANDAL, SPST, OFF-(ON), PANEL MOUNT, FRONT, SILVER, LED, RED/GREEN, IP67
| Part | Mechanical Life | Electrical Life | Illumination Type, Color | Actuator Type | Voltage Rating - DC | Circuit | Termination Style | Color - Actuator/Cap | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [diameter] | Mounting Type | Illumination Voltage (Nominal) | Current Rating (Amps) | Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 1000000 Cycles | 200000 Cycles | Green/Red LED | Button Flush Round | 36 VDC | SPST-NO | Solder Quick Connect - 0.110" (2.8mm) | Silver | IP67 - Dust Tight Waterproof | -20 ░C | 70 °C | 19 mm | Panel Mount Front | 2 VDC 3.1 VDC | 2 A | Anti-Vandal Illuminated | Off-Mom |
