PTC05 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 5POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Number of Positions	Shrouding	Style	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Termination	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Number of Rows	Connector Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Positions Loaded	Contact Shape	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]

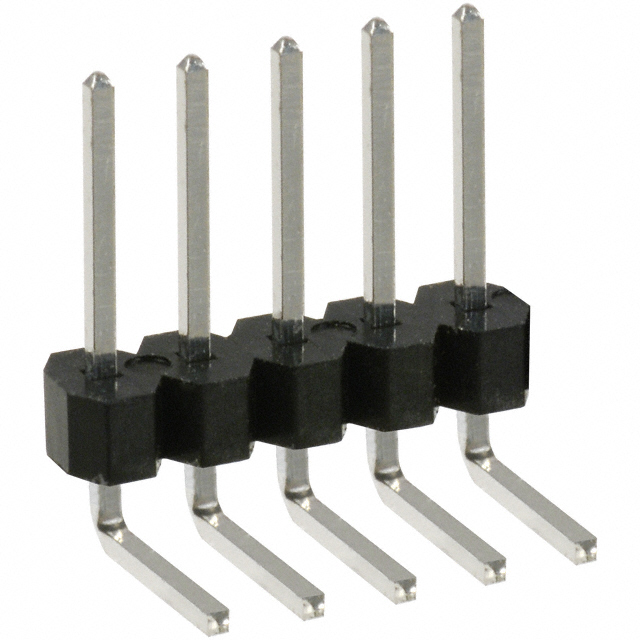

Sullins Connector Solutions PTC05SGBN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Right Angle Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	5	Unshrouded	Board to Board Cable	8.08 mm	0.318 in	3 A	Solder	Tin	Push-Pull	3.56 mm	0.14 in	1	Header	5.58 mm	0.22 in	UL94 V-0	All	Square
Sullins Connector Solutions PTC05SBAN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Right Angle Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	5	Unshrouded	Board to Board Cable	5.84 mm	0.23 in	3 A	Solder	Tin	Push-Pull	3.56 mm	0.14 in	1	Header	3.05 mm	0.12 in	UL94 V-0	All	Square
Sullins Connector Solutions PTC05SFAN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	5	Unshrouded	Board to Board Cable	8.08 mm	0.318 in	3 A	Solder	Tin	Push-Pull	2.54 mm	0.1 in	1	Header	3.05 mm	0.12 in	UL94 V-0	All	Square	13.67 mm	0.538 in
Sullins Connector Solutions PTC05DAFN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	10	Unshrouded	Board to Board Cable	5.84 mm	0.23 in	3 A	Solder	Tin	Push-Pull	2.54 mm	0.1 in		Header			UL94 V-0	All	Square			2	0.1 in	2.54 mm	0.95 in	24.13 mm	15.75 mm	0.62 "
Sullins Connector Solutions PTC05SAEN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	5	Unshrouded	Board to Board Cable	5.84 mm	0.23 in	3 A	Solder	Tin	Push-Pull	2.54 mm	0.1 in	1	Header	13.21 mm	0.52 in	UL94 V-0	All	Square						0.85 in	21.59 mm
Sullins Connector Solutions PTC05SAFN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	5	Unshrouded	Board to Board Cable	5.84 mm	0.23 in	3 A	Solder	Tin	Push-Pull	2.54 mm	0.1 in	1	Header			UL94 V-0	All	Square						0.95 in	24.13 mm	15.75 mm	0.62 "
Sullins Connector Solutions PTC05DFBN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	10	Unshrouded	Board to Board Cable	8.08 mm	0.318 in	3 A	Solder	Tin	Push-Pull	2.54 mm	0.1 in		Header	5.58 mm	0.22 in	UL94 V-0	All	Square			2	0.1 in	2.54 mm	0.638 in	16.21 mm

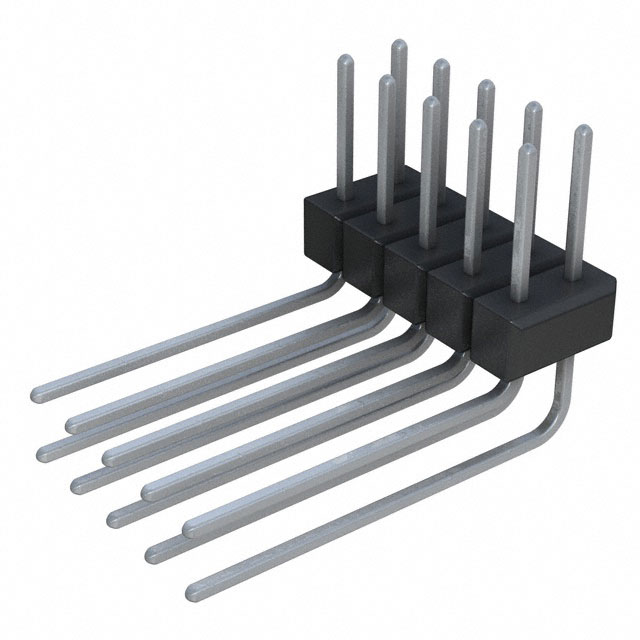

Sullins Connector Solutions PTC05DBEN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Right Angle Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	10	Unshrouded	Board to Board Cable	5.84 mm	0.23 in	3 A	Solder	Tin	Push-Pull				Header	13.21 mm	0.52 in	UL94 V-0	All	Square			2	0.1 in	2.54 mm					6.1 mm	0.24 in
Sullins Connector Solutions PTC05DBAN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Right Angle Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	10	Unshrouded	Board to Board Cable	5.84 mm	0.23 in	3 A	Solder	Tin	Push-Pull				Header	3.05 mm	0.12 in	UL94 V-0	All	Square			2	0.1 in	2.54 mm					6.1 mm	0.24 in
Sullins Connector Solutions PTC05SABN	2.54 µm	100 µin	0.1 "	2.54 mm	Male Pin	Through Hole	Black	100 çin	2.54 çm	Polyester Thermoplastic	Copper Alloy	5	Unshrouded	Board to Board Cable	5.84 mm	0.23 in	3 A	Solder	Tin	Push-Pull	2.54 mm	0.1 in	1	Header	5.84 mm	0.23 "	UL94 V-0	All	Square						0.56 in	14.22 mm
