GT3A Series

Manufacturer: IDEC

Catalog

TIME DELAY & TIMING RELAYS TIMER 11-PIN PLUG-IN DPDT 3A

Part	Voltage - Supply	Relay Type	Timing Initiate Method	Timing Adjustment Method	Mounting Type	Contact Rating @ Voltage	Termination Style	Function	Circuit	Delay Time [Min]	Delay Time [Max]	Termination Style	Contact Rating @ Voltage
IDEC GT3A-2EAD24	24 VAC	Mechanical Relay	Input Voltage	Hand Dial	Socketable	3 A 250 VAC	Plug In	Programmable (Multi-Function)	DPDT (2 Form C)	0.1 Sec	180 Hrs
IDEC GT3A-5AD24	24 VAC	Mechanical Relay	Input Voltage Trigger Signal	Hand Dial	Socketable	5 A	Plug In	Programmable (Multi-Function)	DPDT (2 Form C)	0.1 Sec	180 Hrs	11 Pin	250VAC/24VDC
IDEC GT3A-5EAD24	24 VAC	Mechanical Relay	Input Voltage Trigger Signal	Hand Dial	Socketable	5 A	Plug In	Programmable (Multi-Function)	DPDT (2 Form C)	0.1 Sec	180 Hrs	11 Pin	250VAC/24VDC
IDEC GT3A-4D12	12 VDC	Mechanical Relay	Input Voltage Trigger Signal	Hand Dial	Socketable	5 A	Plug In	Programmable (Multi-Function)	DPDT (2 Form C)	0.1 Sec	180 Hrs	11 Pin	250VAC/24VDC

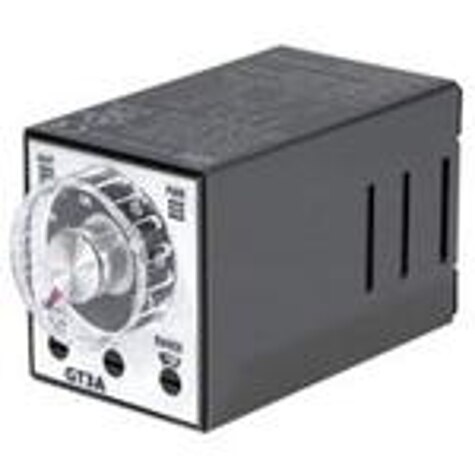

IDEC GT3A-2D12	12 VDC	Mechanical Relay	Input Voltage	Hand Dial	Socketable	3 A 250 VAC	Plug In	Programmable (Multi-Function)	DPDT (2 Form C)	0.1 Sec	180 Hrs
