SI83405 Series

Catalog

1 CH, ISOLATED SMART SWITCH, SOU

Part	Propagation Delay tpLH / tpHL (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Isolation	Technology	Common Mode Transient Immunity (Min) [Min]	Number of Channels [custom]	Channel Type	Type	Inputs - Side 1/Side 2 [custom]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Output Configuration	Voltage - Load [Max]	Voltage - Load [Min]	Switch Type	Output Type	Package / Case	Input Type	Ratio - Input:Output	Current - Output (Max) [Max]	Features	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of Outputs	Supplier Device Package	Rds On (Typ)	Fault Protection	Interface	Mounting Type

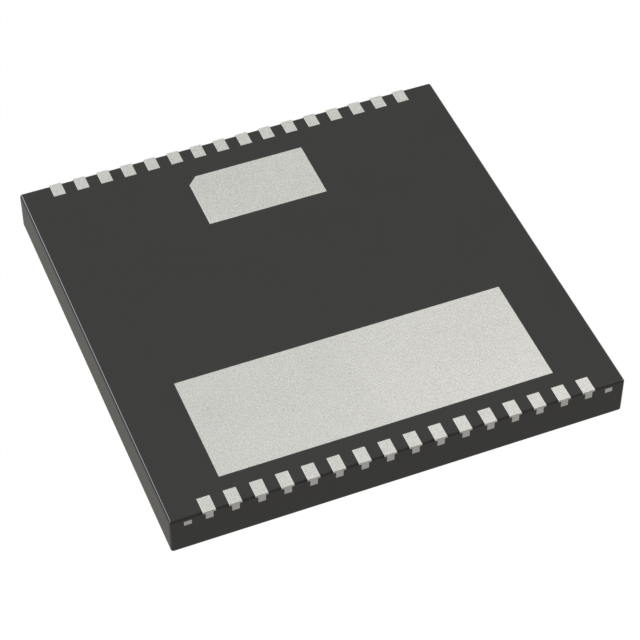

Skyworks Solutions Inc. SI83405BDA-IF	3.5 µs 4.5 µs	125 °C 125 °C	-40 C -40 °C	5.5 V 32 VDC	2.25 V 9 V	1500 VAC	Magnetic Coupling	100 V/ns	1	Unidirectional	SPI	1	2 µs	-	High Side	32 V	9 V	General Purpose	N-Channel	32-VFDFN Exposed Pad	Non-Inverting	1:1	2.5 A	Slew Rate Controlled	2.25 V	5.5 V	1	32-DFN (9x9)	41 mOhm	Current Limiting (Fixed) Over Temperature UVLO	SPI	Surface Mount
Skyworks Solutions Inc. SI83405BFA-IF	3.5 µs 4.5 µs	125 °C 125 °C	-40 C -40 °C	5.5 V 32 VDC	2.25 V 9 V	1500 VAC	Capacitive Coupling	100 V/ns	1	Bidirectional Unidirectional	SPI	1	2 µs	-	High Side	32 V	9 V	General Purpose	N-Channel	32-VFDFN Exposed Pad	Non-Inverting	1:1	2.5 A	Slew Rate Controlled	2.25 V	5.5 V	1	32-DFN (9x9)	41 mOhm	Current Limiting (Fixed) Over Temperature UVLO	Parallel SPI	Surface Mount
Skyworks Solutions Inc. SI83405BDA-IFR	3.5 µs 4.5 µs	125 °C 125 °C	-40 C -40 °C	5.5 V 32 VDC	2.25 V 9 V	1500 VAC	Magnetic Coupling	100 V/ns	1	Unidirectional	SPI	1	2 µs	-	High Side	32 V	9 V	General Purpose	N-Channel	32-VFDFN Exposed Pad	Non-Inverting	1:1	2.5 A	Slew Rate Controlled	2.25 V	5.5 V	1	32-DFN (9x9)	41 mOhm	Current Limiting (Fixed) Over Temperature UVLO	SPI	Surface Mount
