499923 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

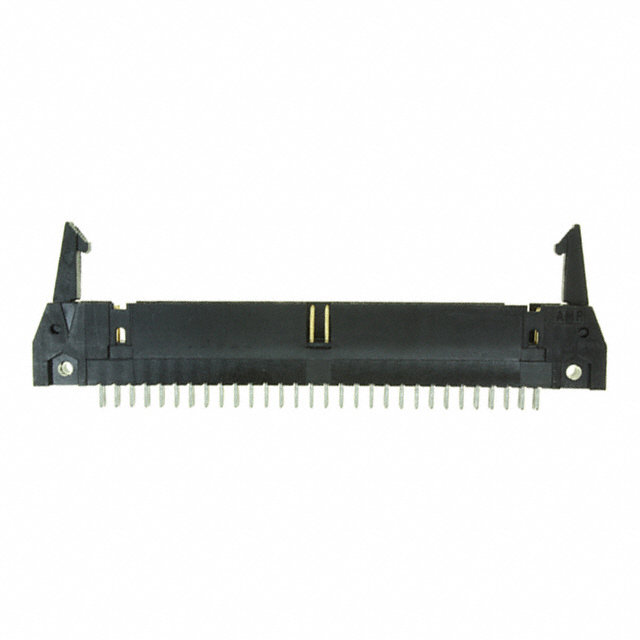

CONN HEADER VERT 60POS 2.54MM
| Part | Contact Finish Thickness - Post | Insulation Height | Insulation Color | Termination | Fastening Type | Material Flammability Rating | Contact Finish - Post | Features | Contact Shape | Shrouding | Contact Finish - Mating | Contact Length - Post | Contact Finish Thickness - Mating | Number of Rows | Row Spacing - Mating | Contact Type | Current Rating (Per Contact) | Contact Length - Mating | Number of Positions | Voltage Rating | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Overall Contact Length | Style | Pitch - Mating | Connector Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 100 Ąin | 0.549 in | Black | Solder | Latch Lock/Eject Hooks Long | UL94 V-0 | Tin-Lead | Keying Slot Mounting Flange | Square | Shrouded - 4 Wall | Gold Gold-Palladium | 0.155 in | 15 µin | 2 | 0.1 in | Male Pin | 1 A | 0.24 in | 60 | 250 V | Through Hole | 105 °C | -65 °C | 0.684 in | Board Cable/Wire | 0.1 in | Header | All |
