ATS-CPX Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 40X40X10MM XCUT CP

...

Part	Package Cooled	Material	Material Finish	Thermal Resistance @ Forced Air Flow	Width [y]	Width [y]	Shape	Type	Fin Height [custom]	Fin Height [custom]	Attachment Method	Fin Height [z]	Fin Height [z]	Length	Length	Width [x]	Width [x]	Length [x]	Length [x]	Fin Height	Fin Height	Width	Width

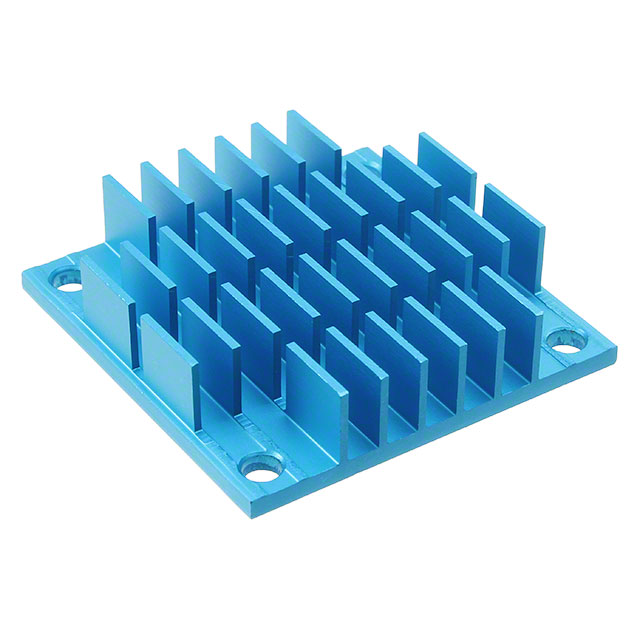

Advanced Thermal Solutions Inc. ATS-CPX040040010-194-C1-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	13.02 °C/W	1.575 in	40 mm	Fins Square	Top Mount	0.394 "	10 mm	Push Pin

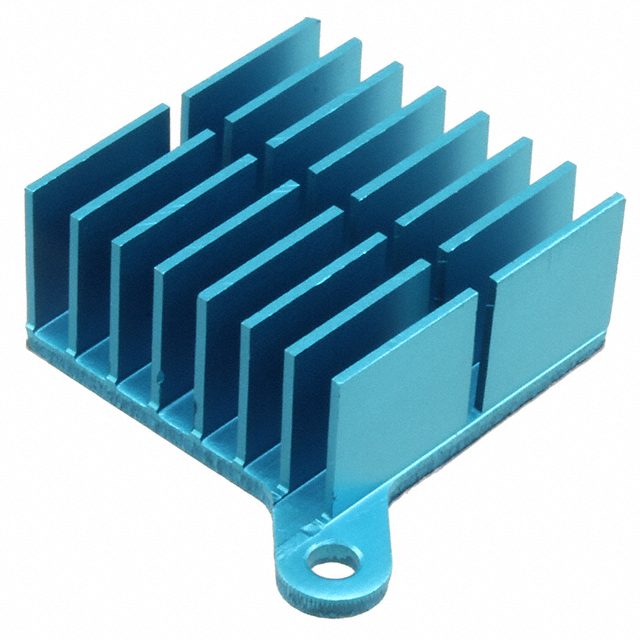

Advanced Thermal Solutions Inc. ATS-CPX030030015-142-C3-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	10.26 °C/W			Fins Square	Top Mount			Push Pin	15 mm	0.59 in	0.03 m	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-CPX070070015-134-C2-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	4.44 °C/W			Fins Square	Top Mount			Push Pin	15 mm	0.59 in			70 mm	2.756 "	2.756 in	70 mm

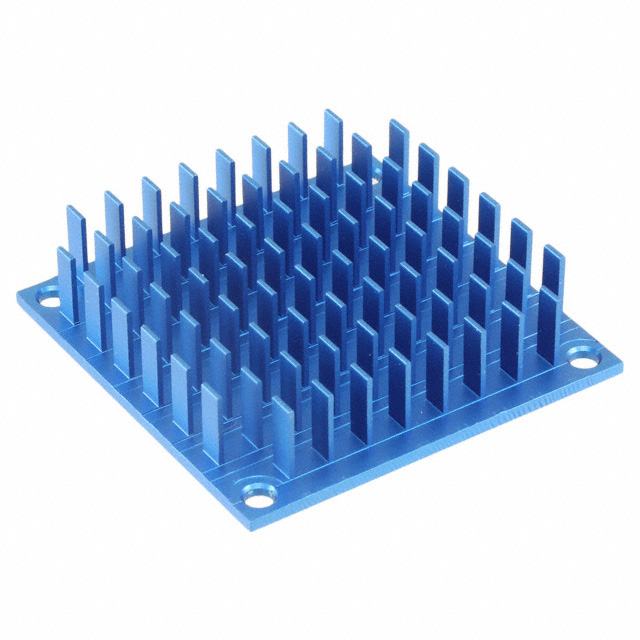

Advanced Thermal Solutions Inc. ATS-CPX054054012-204-C2-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	7.43 °C/W			Fins Square	Top Mount			Push Pin			54 mm	2.126 in	54 mm	2.126 in			0.472 in	12 mm

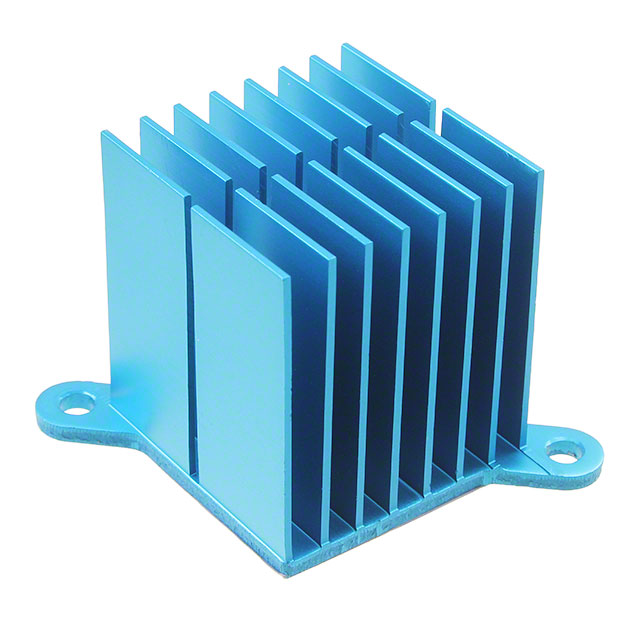

Advanced Thermal Solutions Inc. ATS-CPX030030035-146-C1-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	3.98 °C/W			Fins Square	Top Mount	1.378 in	35 mm	Push Pin			0.03 m	1.181 in	30 mm	1.181 in

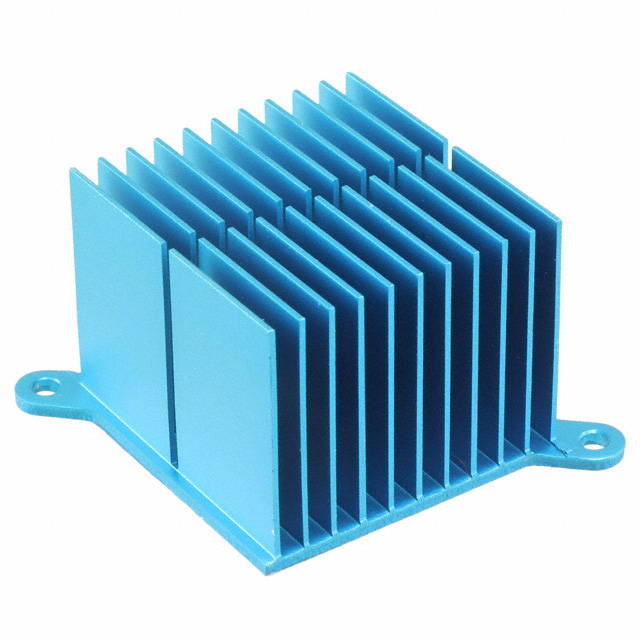

Advanced Thermal Solutions Inc. ATS-CPX045045035-192-C3-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	2.43 °C/W			Fins Square	Top Mount	1.378 in	35 mm	Push Pin							1.772 in	45 mm			1.772 in	45 mm

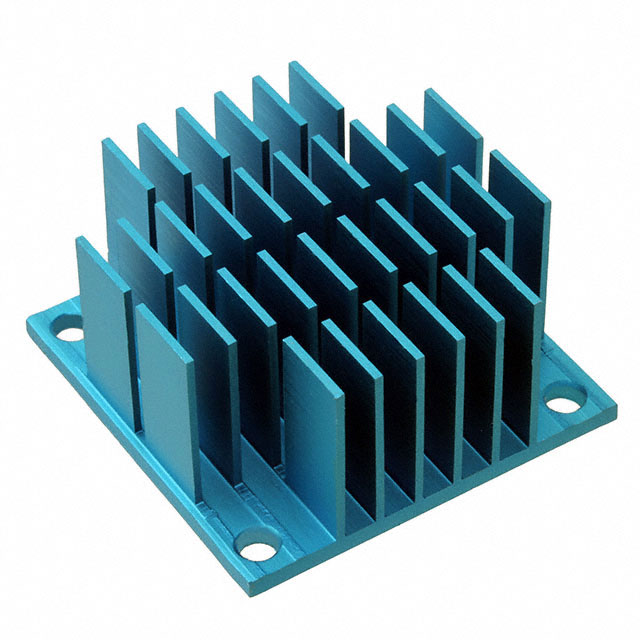

Advanced Thermal Solutions Inc. ATS-CPX040040020-183-C3-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	5.47 °C/W	1.575 in	40 mm	Fins Square	Top Mount			Push Pin	20 mm	0.79 in

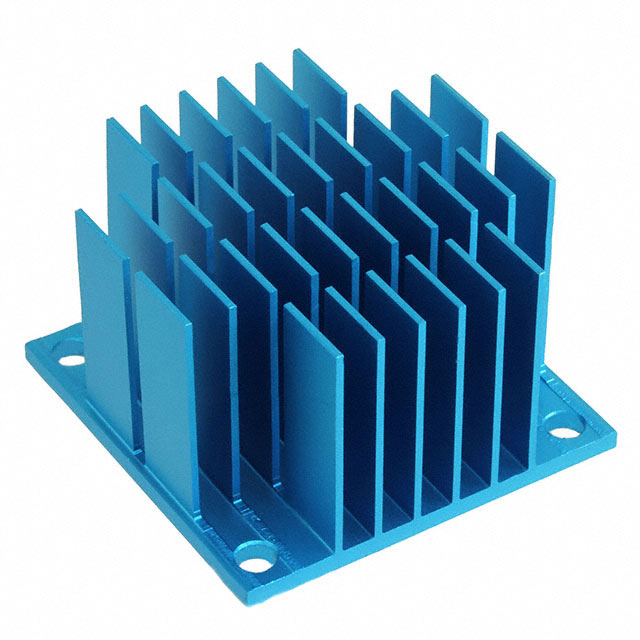

Advanced Thermal Solutions Inc. ATS-CPX040040025-116-C2-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	4.14 °C/W	1.575 in	40 mm	Fins Square	Top Mount			Push Pin									0.984 in	25 mm

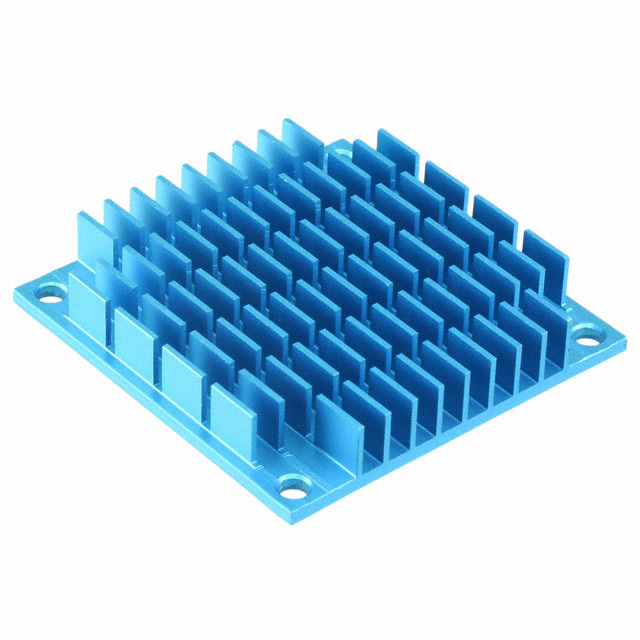

Advanced Thermal Solutions Inc. ATS-CPX054054010-125-C1-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	8.9 °C/W			Fins Square	Top Mount	0.394 "	10 mm	Push Pin			54 mm	2.126 in	54 mm	2.126 in

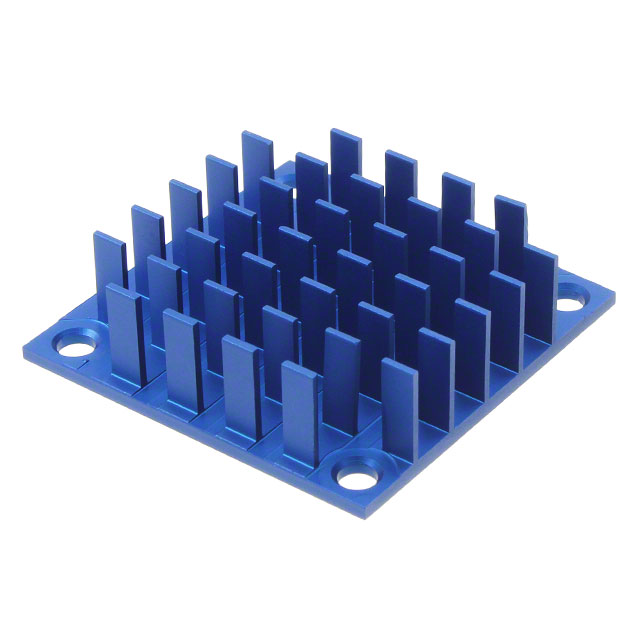

Advanced Thermal Solutions Inc. ATS-CPX040040012-195-C2-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	10.93 °C/W	1.575 in	40 mm	Fins Square	Top Mount			Push Pin									0.472 in	12 mm
