043009 Series
Manufacturer: Molex
Beta
⌘K

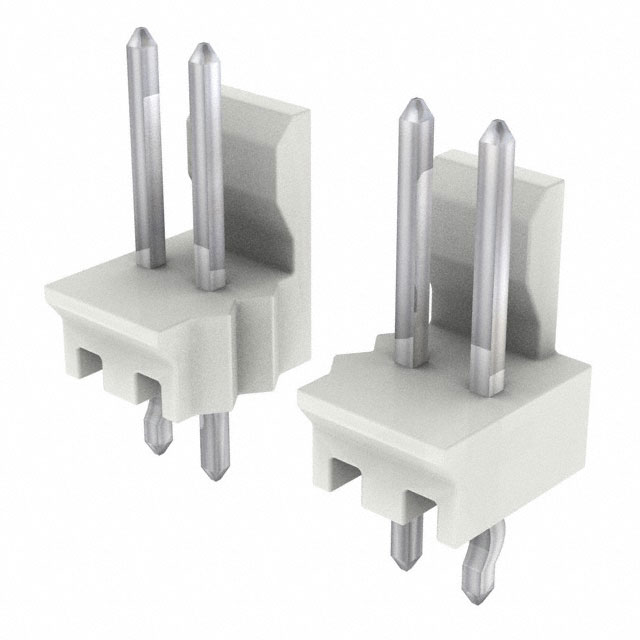

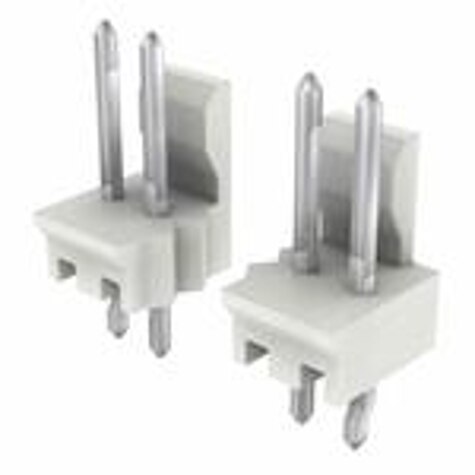

CONN HEADER VERT 7POS 2.54MM
| Part | Contact Length - Mating | Contact Length - Mating | Fastening Type | Termination | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Material Flammability Rating | Overall Contact Length | Overall Contact Length | Applications | Connector Type | Contact Material | Mounting Type | Contact Shape | Insulation Material | Number of Positions | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Insulation Height [z] | Insulation Height [z] | Number of Rows | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 7.49 mm | 0.295 in | Friction Lock | Kinked Pin Solder | 0.1 in | 2.54 mm | Tin | UL94 V-0 | 14.22 mm | 0.56 in | Automotive General Purpose Medical Telecommunications | Header | Brass | Through Hole | Square | Polyester Glass Filled | 7 | Board to Board Cable | 60 µin | 1.52 µm | Shrouded - 1 Wall | 0.322 " | 8.18 mm | 1 | Natural | 60 Áin | 1.52 Ám | Male Pin | 3.56 mm | 0.14 in | |
 Molex | 7.49 mm | 0.295 in | Friction Lock | Kinked Pin Solder | 0.1 in | 2.54 mm | Tin | UL94 V-0 | 14.22 mm | 0.56 in | Automotive General Purpose Medical Telecommunications | Header | Brass | Through Hole | Square | Polyester Glass Filled | Board to Board Cable | 60 µin | 1.52 µm | Shrouded - 1 Wall | 0.322 " | 8.18 mm | 1 | Natural | 60 Áin | 1.52 Ám | Male Pin | 3.56 mm | 0.14 in | 4 |
