892-094 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 94POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Card Type	Termination	Contact Finish	Read Out	Contact Type	Contact Material	Mounting Type	Gender	Color	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features

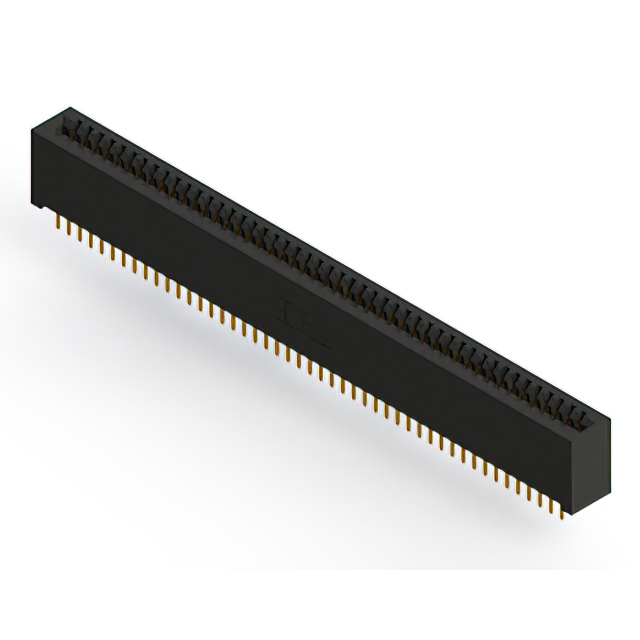

EDAC Inc. 892-094-521-201	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Solder	Gold	Dual	Cantilever	Copper Alloy	Through Hole	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-094-542-212	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Wire Wrap	Gold	Dual	Cantilever	Copper Alloy	Through Hole	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-094-523-212	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Solder	Gold	Dual	Cantilever	Copper Alloy	Through Hole	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-094-524-203	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Solder	Gold	Dual	Cantilever	Copper Alloy	Through Hole	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 892-094-560-208	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Solder	Gold	Dual	Cantilever	Copper Alloy	Board Edge Straddle Mount	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening			Card Extender
EDAC Inc. 892-094-544-201	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Wire Wrap	Gold	Dual	Cantilever	Copper Alloy	Through Hole	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-094-544-203	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Wire Wrap	Gold	Dual	Cantilever	Copper Alloy	Through Hole	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 892-094-524-202	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Solder	Gold	Dual	Cantilever	Copper Alloy	Through Hole	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-094-520-208	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Solder	Gold	Dual	Cantilever	Copper Alloy	Through Hole	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-094-544-204	2	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Wire Wrap	Gold	Dual	Cantilever	Copper Alloy	Through Hole	Female	Black	0.1 "	2.54 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	94	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
