150656 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

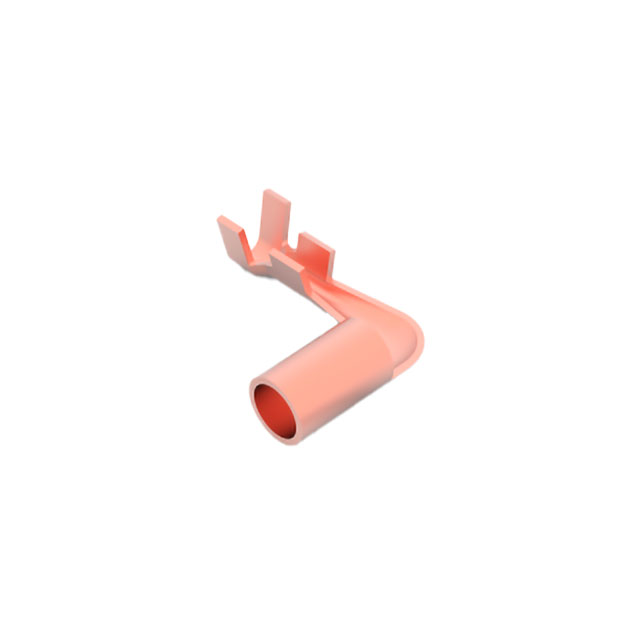

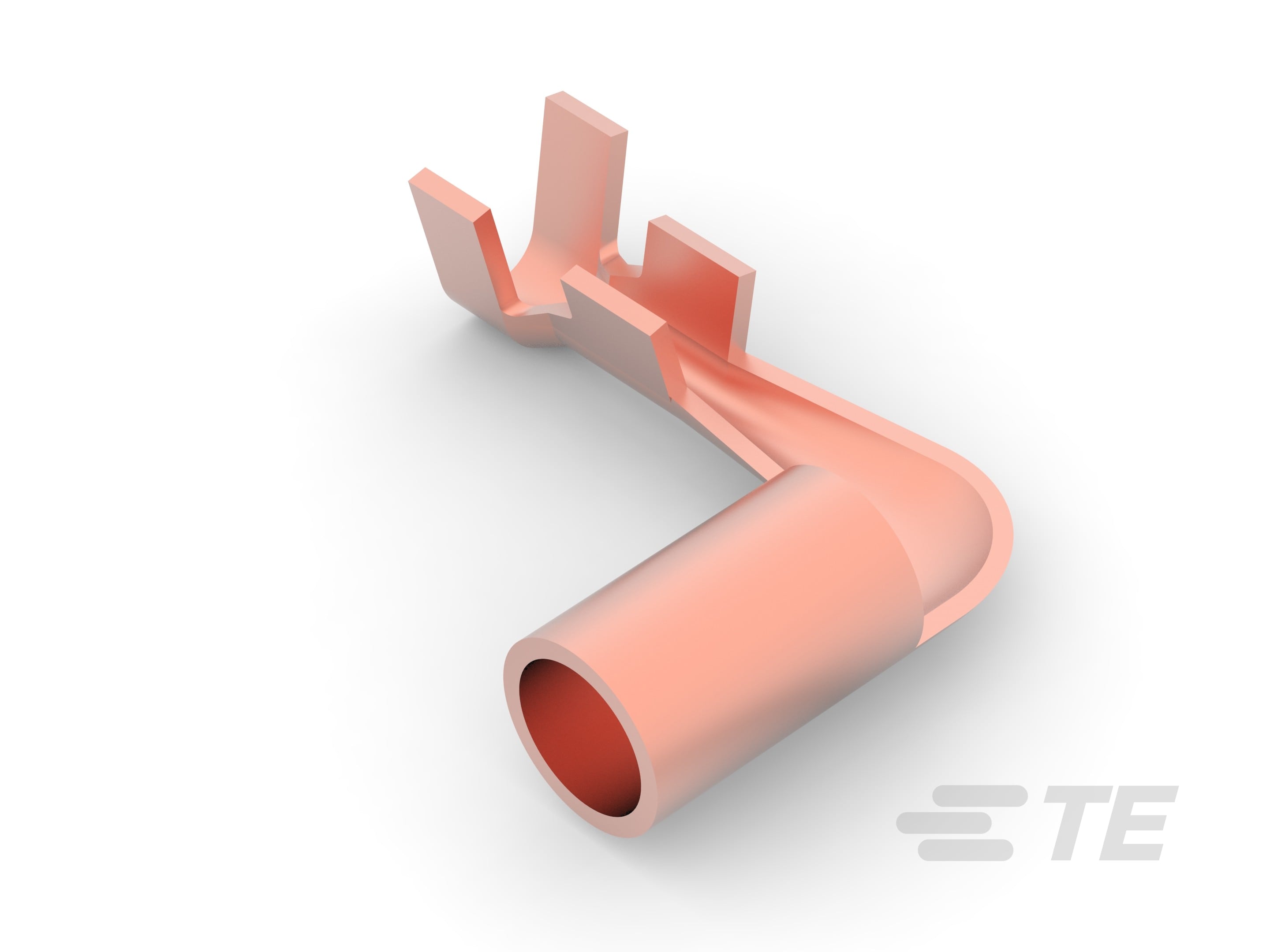

SHUR PLUG .156 DIA REC 20-16 AWG PB
| Part | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Terminal Type | Insulation | Contact Material | Termination | Wire Gauge [Max] | Wire Gauge [Min] | Length - Barrel [x] | Length - Barrel | Diameter - Barrel [diameter] | Diameter - Barrel [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.1 in | 3.56 mm | 2.54 mm | 0.14 in | Female Flag Receptacle (Socket) | Non-Insulated | Phosphor Bronze | Crimp | 20 AWG | 16 AWG | 0.308 in | 7.82 mm | 0.156 in | 3.96 mm | Tin |
 TE Connectivity AMP Connectors | 0.098 in | 3.61 mm | 2.5 mm | 0.142 in | Female Receptacle (Socket) Right Angle | Non-Insulated | Phosphor Bronze | Crimp | 20 AWG | 16 AWG | 0.308 in | 7.82 mm | 0.156 in | 3.96 mm |
