LD6805 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

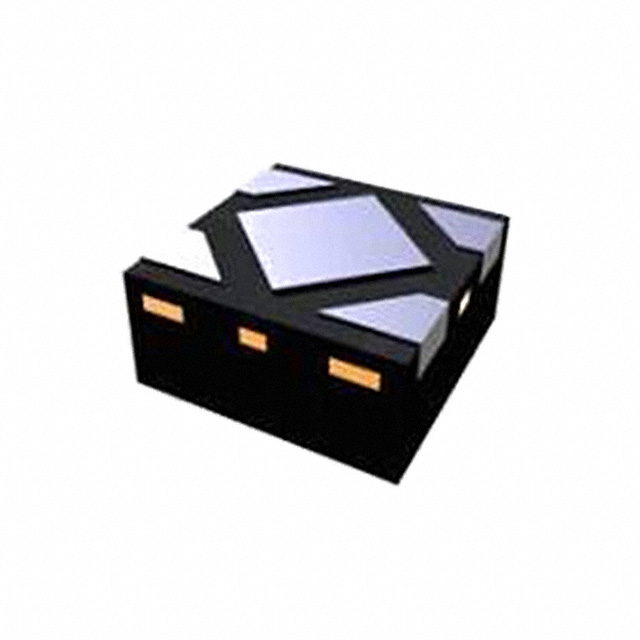

IC REG LIN 1.4V 150MA DFN1010C-4

Part	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Output Type	Protection Features	Output Configuration	Number of Regulators	Current - Output	Current - Supply (Max) [Max]	PSRR	Supplier Device Package	Package / Case	Voltage - Output (Min/Fixed)	Mounting Type	Control Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed) [Min]
Freescale Semiconductor - NXP LD6805K/14H,115	35 µA	0.25 V	1.81 mOhm	Over Current Transient Voltage	Positive	1	150 mA	150 µA	75 dB	DFN1010C-4	4-UDFN Exposed Pad	1.4 V	Surface Mount	Enable	5.5 V	85 °C	-40 °C
Freescale Semiconductor - NXP LD6805K/12H,115	35 µA	0.25 V	1.81 mOhm	Over Current Transient Voltage	Positive	1	150 mA	150 µA	75 dB	DFN1010C-4	4-UDFN Exposed Pad	1.2 V	Surface Mount	Enable	5.5 V	85 °C	-40 °C
Freescale Semiconductor - NXP LD6805K/23P,115	35 µA	0.25 V	1.81 mOhm	Over Current Transient Voltage	Positive	1	150 mA	150 µA	75 dB	DFN1010C-4	4-UDFN Exposed Pad		Surface Mount	Enable	5.5 V	85 °C	-40 °C	2.3 V
Freescale Semiconductor - NXP LD6805K/16P,115	35 µA	0.25 V	1.81 mOhm	Over Current Transient Voltage	Positive	1	150 mA	150 µA	75 dB	DFN1010C-4	4-UDFN Exposed Pad	1.6 V	Surface Mount	Enable	5.5 V	85 °C	-40 °C
Freescale Semiconductor - NXP LD6805K/22P,115	35 µA	0.25 V	1.81 mOhm	Over Current Transient Voltage	Positive	1	150 mA	150 µA	75 dB	DFN1010C-4	4-UDFN Exposed Pad	2.2 V	Surface Mount	Enable	5.5 V	85 °C	-40 °C
Freescale Semiconductor - NXP LD6805K/28P,115	35 µA	0.25 V	1.81 mOhm	Over Current Transient Voltage	Positive	1	150 mA	150 µA	75 dB	DFN1010C-4	4-UDFN Exposed Pad	2.8 V	Surface Mount	Enable	5.5 V	85 °C	-40 °C
Freescale Semiconductor - NXP LD6805K/36P,115	35 µA	0.25 V	1.81 mOhm	Over Current Transient Voltage	Positive	1	150 mA	150 µA	75 dB	DFN1010C-4	4-UDFN Exposed Pad	3.6 V	Surface Mount	Enable	5.5 V	85 °C	-40 °C
Freescale Semiconductor - NXP LD6805K/23H,115	35 µA	0.25 V	1.81 mOhm	Over Current Transient Voltage	Positive	1	150 mA	150 µA	75 dB	DFN1010C-4	4-UDFN Exposed Pad		Surface Mount	Enable	5.5 V	85 °C	-40 °C	2.3 V
Freescale Semiconductor - NXP LD6805K/30P,115	35 µA	0.25 V	1.81 mOhm	Over Current Transient Voltage	Positive	1	150 mA	150 µA	75 dB	DFN1010C-4	4-UDFN Exposed Pad		Surface Mount	Enable	5.5 V	85 °C	-40 °C
