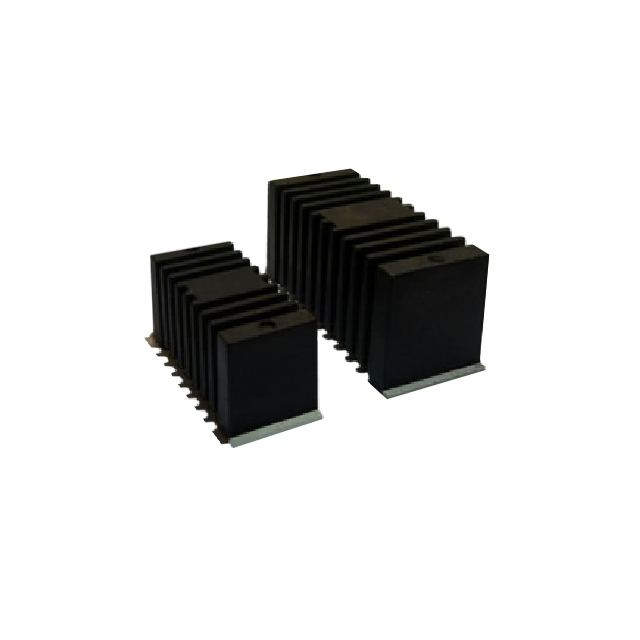

RWS10 Series

Manufacturer: Ohmite

Catalog

WIREWOUND RESISTORS - SMD 10 WATTS WIREWOUND SMD 3.3 KILOOHMS 5% TAPE REEL

Part	Tolerance	Resistance	Number of Terminations [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Composition	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)
Ohmite RWS10 3K3 J TR	5 %	3300 Ohms	2	28.6 mm	1.126 in	12 mm	0.472 "	20 ppm/°C	-55 C	275 °C	Nonstandard	Wirewound	Pulse Withstanding	0.512 "	13 mm	10 W
Ohmite RWS10 8K2 J TR	5 %	8.2 kOhms	2	28.6 mm	1.126 in	12 mm	0.472 "	20 ppm/°C	-55 C	275 °C	Nonstandard	Wirewound	Pulse Withstanding	0.512 "	13 mm	10 W
Ohmite RWS10 R68 J TR	5 %	680 mOhms	2	28.6 mm	1.126 in	12 mm	0.472 "	90 ppm/°C	-55 C	275 °C	Nonstandard	Wirewound	Pulse Withstanding	0.512 "	13 mm	10 W
Ohmite RWS10 220R J TR	5 %	220 Ohms	2	28.6 mm	1.126 in	12 mm	0.472 "	20 ppm/°C	-55 C	275 °C	Nonstandard	Wirewound	Pulse Withstanding	0.512 "	13 mm	10 W
