1000Base-T Series
Manufacturer: Pulse Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
PULSE TRANSFORMERS 1000BASE-T SMD POE+ 350UH .3OHMS 1-PORT
| Part | Size / Dimension Length | Size / Dimension Width | Inductance | Operating Temperature (Min) | Operating Temperature (Max) | Height - Seated (Max) | Mounting Type | Turns Ratio - Primary (Receiver) | Turns Ratio Mode | Turns Ratio - Secondary (Receiver) | Turns Ratio - Secondary (Transmitter) | Turns Ratio - Primary (Transmitter) | Transformer Type | Weight | Turns Ratio - Secondary | Turns Ratio - Primary |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

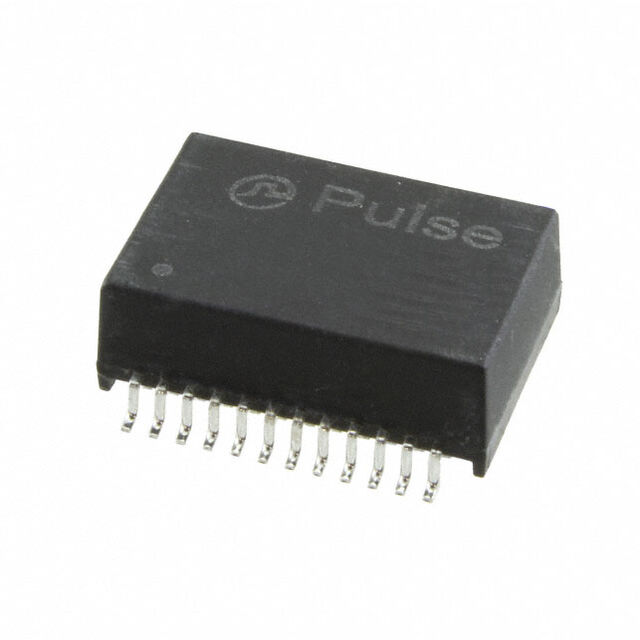

 Pulse Electronics | 0.715 in | 0.48 in | 350 µH | -40 °C | 85 °C | 0.26 in | Surface Mount | 1 CT | Receiver Transmitter | 1 | 1 CT | 1 CT | Power over Ethernet (PoE) | |||

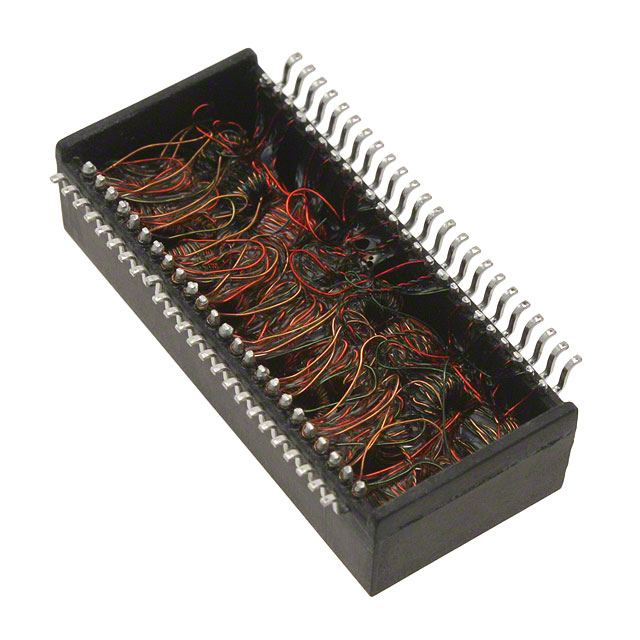

 Pulse Electronics | 1.095 in | 0.48 in | -40 °C | 85 °C | 0.295 in | Surface Mount | LAN 1000 Base-T | 0.14 oz | 1 | 1 |
