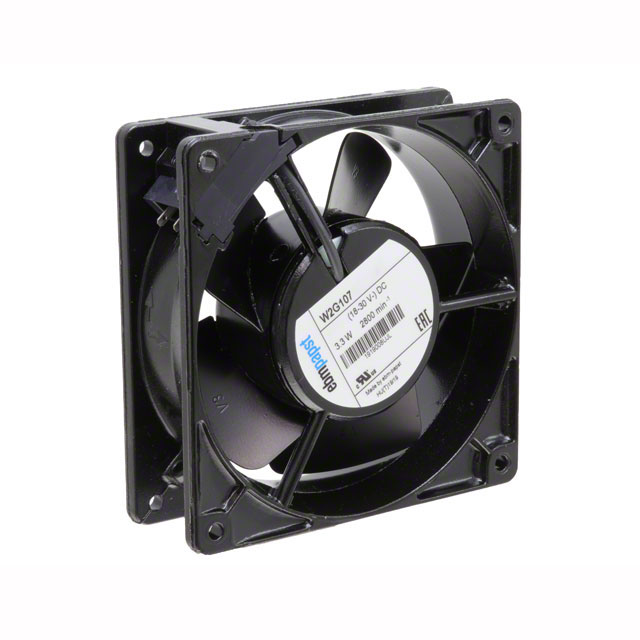

W2G107 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
DC FANS DC AXIAL FAN, 119X119X38MM, 24VDC, 70CFM, 2.2W, 33DBA, BALL BEARING, TERMINALS
| Part | Material - Frame | Noise | Width [y] | Voltage - Rated | Air Flow | Air Flow | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Fan Type | Termination | Bearing Type | Approval Agency | Power (Watts) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Aluminum | 33 dB(A) | 38 mm | 24 VDC | 70 CFM | 1.96 m³/min | Square | 119 mm | 119 mm | Tubeaxial | 2 | Ball | CSA UL VDE | 2.2 W | |||||||||
 ebm-papst Inc. | Aluminum | 38 mm | 24 VDC | Square | 119 mm | 119 mm | Tubeaxial | 2 | Ball | EAC UL | 3.3 W | 18 VDC | 30 V | Steel | 2800 RPM | -25 °C | 162 °F | -25 °C | 72 °C | IP22 | |||
 ebm-papst Inc. | 70 dB(A) | 38 mm | 12 VDC | Square | 119 mm | 119 mm | Tubeaxial | 2 | Ball | UL | 3.5 W | 2800 RPM | -25 °C | 162 °F | -25 °C | 72 °C | IP22 |
