6382-4SG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

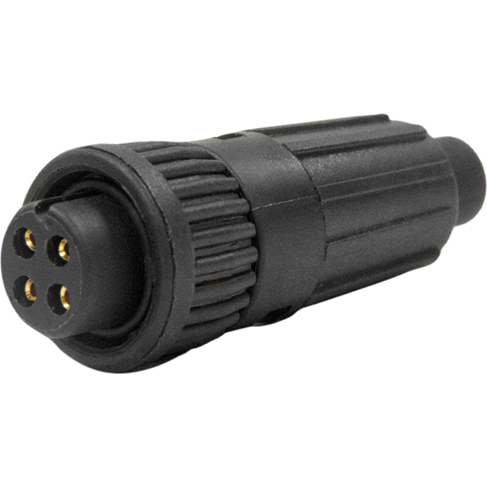

MINI-CON-X CABLE END, 4-PIN #16, FEMALE, SOLDER CUP, BULK
| Part | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Connector Type | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Fastening Type | Voltage Rating | Current Rating (Amps) | Primary Material | Number of Positions | Applications | Mounting Type | Features | Contact Material | Contact Finish - Mating | Ingress Protection | Backshell Material, Plating | Color | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | 5.33 mm | 0.23 in | 5.84 mm | 0.21 in | Plug Female Sockets | Unshielded | 115 °C | -40 C | Keyed | Bayonet Lock | 600 V | Varies by Wire Gauge | Plastic | 4 | Automotive Communication Systems Instrumentation | Free Hanging (In-Line) | Backshell | Brass | Gold | Weathertight | Nylon Polyamide (PA) | Black | |
 SWITCHCRAFT/CONXALL | 2.29 mm | 0.14 in | 0.09 in | Plug Female Sockets | Unshielded | 115 °C | -40 C | Keyed | Bayonet Lock | 600 V | Varies by Wire Gauge | Plastic | 4 | Automotive Communication Systems Instrumentation | Free Hanging (In-Line) | Backshell | Brass | Gold | Weathertight | Nylon Polyamide (PA) | Black | 3.56 mm | |
SWITCHCRAFT/CONXALL | 4.57 mm | 0.2 " | 5.08 mm | 0.18 " | Plug Female Sockets | Unshielded | 115 °C | -40 C | Keyed | Bayonet Lock | 600 V | Varies by Wire Gauge | Plastic | 4 | Automotive Communication Systems Instrumentation | Free Hanging (In-Line) | Backshell | Brass | Gold | Weathertight | Nylon Polyamide (PA) | Black | |
 SWITCHCRAFT/CONXALL | 4.83 mm | 0.21 in | 5.33 mm | 0.19 in | Plug Female Sockets | Unshielded | 115 °C | -40 C | Keyed | Bayonet Lock | 600 V | Varies by Wire Gauge | Plastic | 4 | Automotive Communication Systems Instrumentation | Free Hanging (In-Line) | Backshell | Brass | Gold | Weathertight | Nylon Polyamide (PA) | Black | |
SWITCHCRAFT/CONXALL | 4.06 mm | 0.18 " | 4.57 mm | 0.16 " | Plug Female Sockets | Unshielded | 115 °C | -40 C | Keyed | Bayonet Lock | 600 V | Varies by Wire Gauge | Plastic | 4 | Automotive Communication Systems Instrumentation | Free Hanging (In-Line) | Backshell | Brass | Gold | Weathertight | Nylon Polyamide (PA) | Black | |
 SWITCHCRAFT/CONXALL | 5.59 mm | 0.25 in | 6.35 mm | 0.22 in | Plug Female Sockets | Unshielded | 115 °C | -40 C | Keyed | Bayonet Lock | 600 V | Varies by Wire Gauge | Plastic | 4 | Automotive Communication Systems Instrumentation | Free Hanging (In-Line) | Backshell | Brass | Gold | Weathertight | Nylon Polyamide (PA) | Black |
