TSS21 Series

Catalog

TSS21NGPC=SWITCH SLIDE P/C TER

Part	Electrical Life	Switch Travel	Mechanical Life	Operating Force [Min]	Operating Force [Max]	Actuator Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Circuit	Contact Finish	Contact Material	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Actuator Length [x]	Contact Timing	Mounting Type	Voltage Rating - AC	Actuator Length
TE Connectivity AMP Connectors TSS21NGPC	60000 Cycles	3.05 mm	60000 Cycles	150 gf	600 gf	Polyester	PC Pin	80 °C	-20 ░C	Standard	DPDT	Gold	Copper	On-On	20 V	0.4 VA	2.8 mm	Non-Shorting (BBM)	Through Hole	20 V
TE Connectivity AMP Connectors TSS21PG1RA	60000 Cycles	3.05 mm	60000 Cycles	150 gf	600 gf	Polyester	PC Pin	80 °C	-20 ░C	Flush	DPDT	Gold	Copper	On-Off-On	20 V	0.4 VA		Non-Shorting (BBM)	Right Angle Through Hole	20 V	Flush

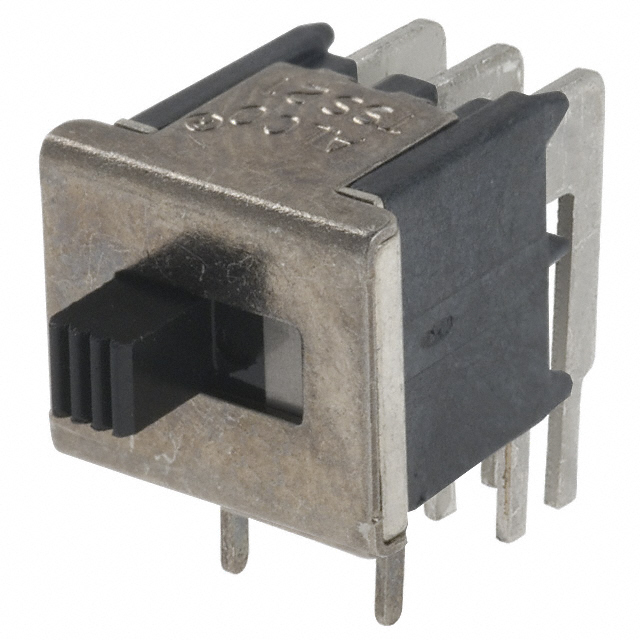

TE Connectivity AMP Connectors TSS21NGRA	60000 Cycles	3.05 mm	60000 Cycles	150 gf	600 gf	Polyester	PC Pin	80 °C	-20 ░C	Standard	DPDT	Gold	Copper	On-On	20 V	0.4 VA	2.79 mm	Non-Shorting (BBM)	Right Angle Through Hole	20 V
